Planet Industrial L2/L4 8-Port Managed Switch IGS-4215-8T4X

PLANET IGS-4215-8T4X – Industrial Gigabit Switch with 10G SFP+ and Advanced L3 Functionality

Budget-Friendly L2+ Managed Switch for Industrial Edge Networking

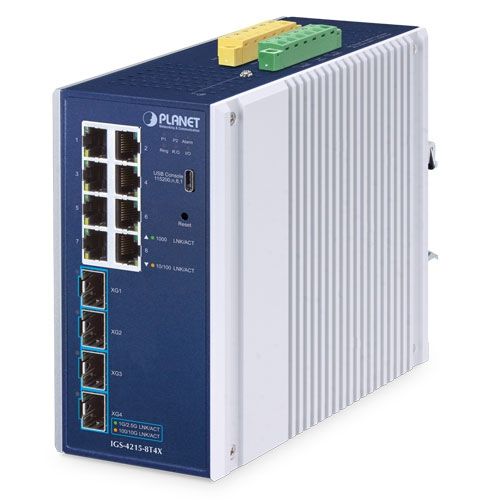

The PLANET IGS-4215-8T4X is a DIN-rail L2+/L4 managed Gigabit Ethernet switch engineered for use in challenging industrial environments. Featuring 8 copper Gigabit ports and 4 10G SFP+ slots, this switch supports IPv6/IPv4 dual-stack, advanced Layer 3 static routing, and comprehensive security functions. Its rugged IP30 aluminum housing, redundant power input, and operational temperature range from -40 to 75 °C make it a perfect fit for mission-critical deployments in manufacturing, transportation, automation, and smart infrastructure.

Key Features:

• 8 x RJ45 Gigabit ports + 4 x 10G SFP+ uplinks
• IPv6/IPv4 dual-stack, Layer 3 static routing
• Redundant power: 9–48V DC or 24V AC
• DI/DO alarm I/O with SNMP trap
• Industrial Modbus TCP protocol support
• Advanced security and traffic control mechanisms

Specifications:

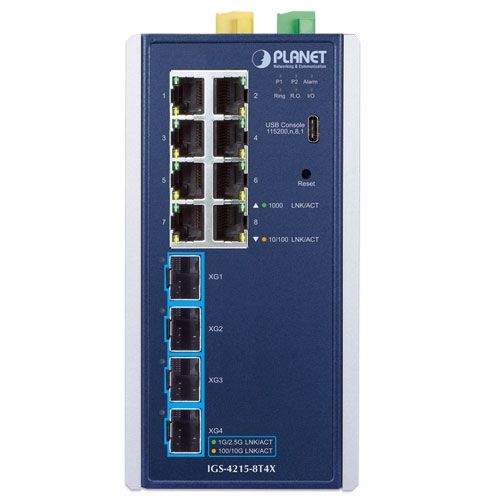

Ports:

• 8 x 10/100/1000BASE-T (RJ45)
• 4 x 10GBASE-SR/LR SFP+ (also supports 100M/1G/2.5G)
• 1 x USB Type-C console

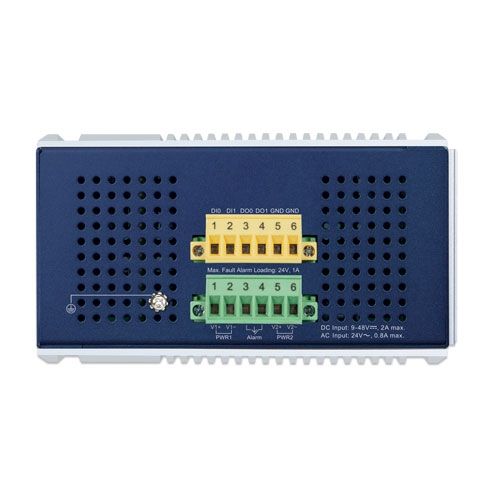

• 2 Digital Inputs + 2 Digital Outputs

Physical and Electrical:

• IP30 aluminum casing
• Dimensions: 76 × 135 × 152 mm, Weight: 1232 g
• Power input: 9–48V DC or 24V AC
• Power usage: up to 11.6W
• ESD: ±6kV contact, ±8kV air
• Operating Temp: -40 to 75 °C, Humidity: 5–95% (non-condensing)

Switching Performance:

• Fabric: 96Gbps, Throughput: 71.43 Mpps
• 16K MAC table, 12Mbit buffer, 12KB jumbo frames

Layer 2 Features:

• VLAN (802.1Q, Q-in-Q, Voice, Protocol, Private), GVRP
• Spanning Tree: STP/RSTP/MSTP, BPDU Guard
• Link Aggregation: 8 groups, 8 ports per group
• Port Mirroring, LLDP, Loop Protection, ERPS Ring

QoS:

• 8 priority queues, WRR & Strict Priority
• Classification: port, 802.1p, DSCP
• Per port bandwidth control

Multicast:

• IGMP snooping v2/v3, MLD v1/v2
• Querier mode, multicast filtering, 256 groups

Security:

• Layer 2-4 ACL (IPv4/IPv6/MAC)
• 802.1X, RADIUS, TACACS+, DHCP Snooping, ARP Inspection
• IP Source Guard, Port Security, DoS Protection

Routing (Layer 3):

• IPv4/IPv6 static routing for inter-VLAN connectivity

Management:

• Interfaces: Web GUI, CLI (Console/Telnet), SNMP v1/v2c/v3, SSH, TLS
• SNMP trap, Syslog, RMON (4 groups)
• Config/Firmware via HTTP/TFTP, dual image, diagnostics
• Tools: PLANET NMS, CloudViewer, Smart Discovery

SFP Diagnostics:

• SFP-DDM (optical power, temperature, bias, voltage)

Applications:

• Industrial surveillance, automation, SCADA, smart grid
• Core fiber uplink and high-speed trunking (10G)
