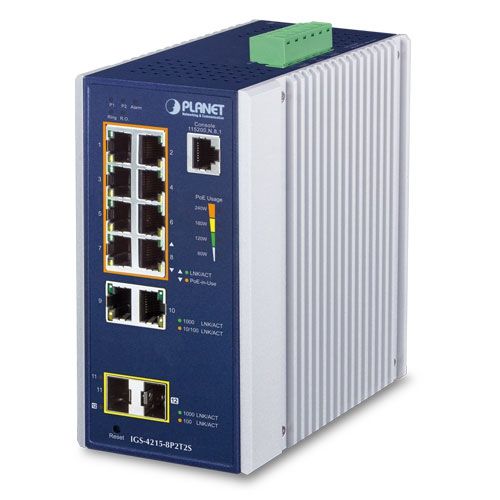

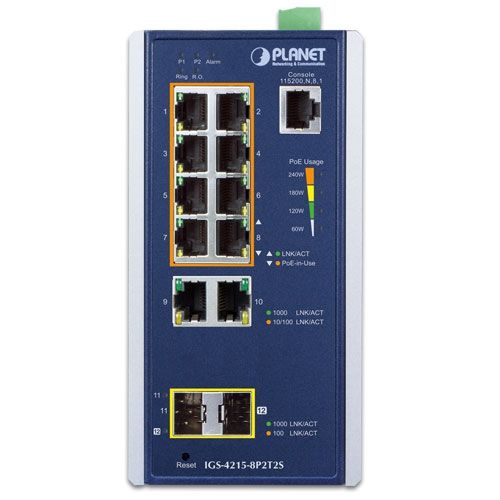

PLANET IGS-4215-8P2T2S – Rugged Industrial Gigabit PoE+ Switch with Fiber Uplink

Cost-Effective Full PoE+ Solution for Harsh Environments

The PLANET IGS-4215-8P2T2S is a robust DIN-rail managed industrial L2+/L4 Gigabit PoE+ switch designed for critical applications in industrial settings. With 8 PoE+ ports supporting up to 36W each (240W total), plus 2 extra RJ45 and 2 SFP uplink ports, it delivers reliable power and data over long distances. Features like PoE scheduling, PD alive check, auto-reboot, and extended PoE range (up to 250m) make it ideal for surveillance, IP phones, wireless APs, and edge networking in demanding environments.

Key Features:

• 8 x IEEE 802.3at PoE+ ports (up to 36W/port, 240W total)
• 2 x RJ45 data-only Gigabit ports
• 2 x 100/1000BASE-X SFP uplink slots
• PoE range up to 250 meters (Extend Mode)
• Rugged aluminum housing, IP30 rated
• Dual DC power inputs with reverse polarity protection

Technical Specifications:

Ports:

• 8 x 10/100/1000BASE-T PoE+ ports
• 2 x 10/100/1000BASE-T non-PoE ports
• 2 x SFP 100/1000BASE-X slots
• 1 x RS232 Console (RJ45)

PoE Functions:

• IEEE 802.3af/at compliant (End-span)
• Up to 36W per port, 240W total
• Smart PoE: PD Alive Check, Scheduling, Extension Mode, Load Monitoring LEDs (60–240W)

Hardware & Power:

• Dimensions: 76.8 × 107.3 × 152 mm, Weight: 1084g
• Aluminum IP30 casing
• Power Input: 48–54V DC, redundant, max. 6A
• Power Consumption: 6.72W (system), 252W (max load)
• ESD: ±6KV contact / ±8KV air; Surge: ±4KV

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, Voice, Protocol, Private, GVRP
• STP/RSTP/MSTP with BPDU protection
• Link Aggregation: 6 groups (up to 8 ports each)
• LLDP, Loop Protection, ERPS Ring support
• IGMP v2/v3 & MLD v1/v2 Snooping & Querier

Quality of Service:

• 8 queues, Strict Priority, WRR
• QoS based on Port, 802.1p, DSCP, Apps
• Bandwidth limiting per port

Security:

• ACLs (IPv4/IPv6, MAC), up to 256 entries
• 802.1X, RADIUS, TACACS+, DHCP Snooping
• IP Source Guard, ARP Inspection, DoS Protection
• Port security & MAC binding

Management:

• Web interface, Telnet, CLI, SNMP v1/v2c/v3, SSH, TLS
• Dual firmware image, TFTP/HTTP config, SNTP
• Diagnostic: Cable test, SFP-DDM, Ping
• Management Tools: PLANET NMS, CloudViewer, Smart Discovery

Fiber Uplink:

• 2 SFP uplink ports supporting MM/SM/WDM
• Range: 550m–120km (depending on module)

Applications:

• Surveillance with NVR/PoE cameras
• Building security, automation, industrial APs
• Centralized power and data in industrial networks
