Planet Industrial 4-Port Managed Switch IGS-4215-4UP4T2S
|
384,56 EUR |
|
|
( 457,63 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1396132 |
|---|---|
| Mfg Part No: | IGS-4215-4UP4T2S |
| UPC/EAN: | 4711605286992 |
| Weight: | 1.37 kg |
Product information for Planet IGS-4215-4UP4T2S:
Cost-Optimized High-Power Solution for Industrial Environments

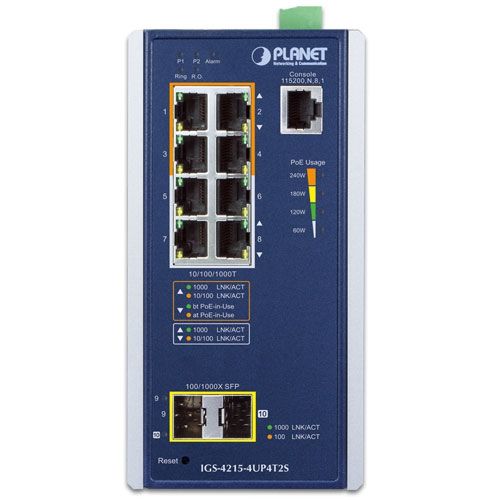

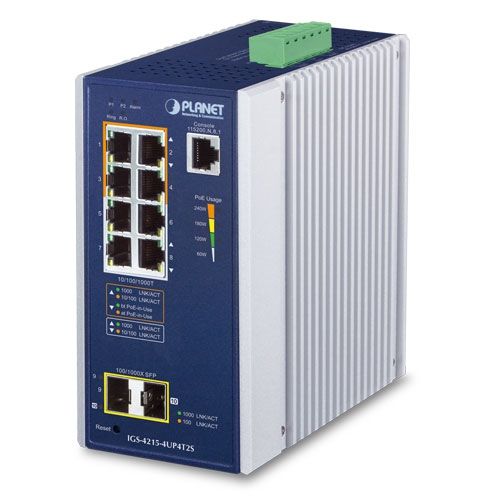

The PLANET IGS-4215-4UP4T2S is a DIN-rail industrial Gigabit switch offering 4 IEEE 802.3bt PoE++ ports (up to 95W each), 4 standard Gigabit Ethernet ports, and 2 SFP slots for fiber uplinks. It delivers reliable, high-power networking for applications such as PTZ cameras, digital signage, and industrial wireless APs. With a total PoE power budget of 240 watts, extended operation up to 250m, and robust design for temperatures from -40 to +75 °C, it is tailored for smart automation, security, and mission-critical deployments.
Key Features:
- 4 x 802.3bt PoE++ ports (up to 95 W each)
- 8 x 10/100/1000BASE-T ports + 2 x SFP 100/1000BASE-X slots
- PoE Budget: 240 W total
- Extend mode: up to 250 m PoE range
- Robust aluminum IP30 housing
- Wide operating temperature: -40 to +75 °C
- Built-in PoE scheduling, PD auto-recovery, usage monitoring
Technical Specifications:
Ports:
- 4 x PoE++ RJ45 (802.3bt Type-4, 10/100/1000BASE-T)
- 4 x RJ45 (Data only)
- 2 x SFP 100/1000BASE-X (auto-detect)
- 1 x RJ45 Console (RS232, 115200,8,N,1)
PoE Capability:
- Standards: IEEE 802.3bt/at/af
- Output: up to 95 W/port, total 240 W
- Modes: End-span, Mid-span, Force
- Features: PD Alive Check, Scheduled Reboot, PoE Extend (250m), Budget Control, Usage LEDs (60/120/180/240W)
Hardware & Power:
- Dimensions: 76.8 × 107.3 × 152 mm, Weight: 1054 g
- Housing: IP30 aluminum, ESD ±6KV, Surge ±4KV

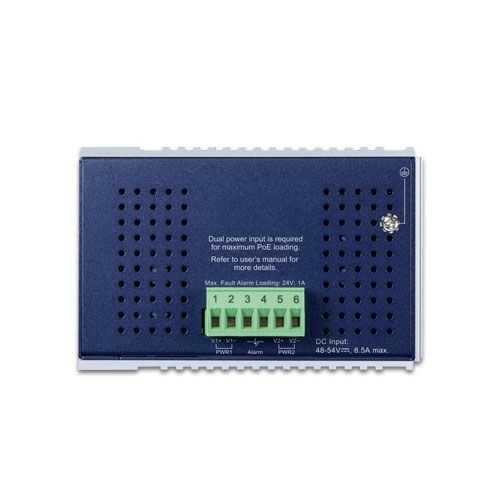

- Power input: 48–54 V DC, dual redundant
- Power consumption: 8.2W (system), 264W (max)
L2 Features:
- VLAN: 802.1Q, Q-in-Q, Voice, Protocol, Private, GVRP
- STP/RSTP/MSTP, BPDU Guard, Loop Protection
- ERPS (G.8032)
- Link Aggregation: 5 groups, 8 ports/group
- Multicast: IGMP v2/v3, MLD v1/v2 snooping, querier
QoS:
- 8 queues per port
- CoS, DSCP, strict priority, WRR
- Traffic shaping & policing
Security:
- ACLs (IPv4/IPv6, MAC-based), 256 entries
- IEEE 802.1X, RADIUS/TACACS+
- DHCP Snooping, IP Source Guard, ARP Inspection
- Port Security, MAC Binding, DoS protection
Management:
- Interfaces: Web, Telnet, CLI, SNMP v1/v2c/v3, SSH, TLS
- Features: LLDP, Dual image, TFTP, SNTP, Syslog
- Tools: PLANET UNI-NMS, Smart Discovery, CloudViewer
- Diagnostics: Cable test, SFP-DDM, Ping (IPv4/IPv6)
Long-distance Fiber Extension:
- 100BASE-FX / 1000BASE-SX/LX / WDM SFP support
- Ranges: MM up to 2 km; SM up to 120 km
