Product information for Planet IGS-4215-4T2S:
Engineered for Critical Industrial Networks

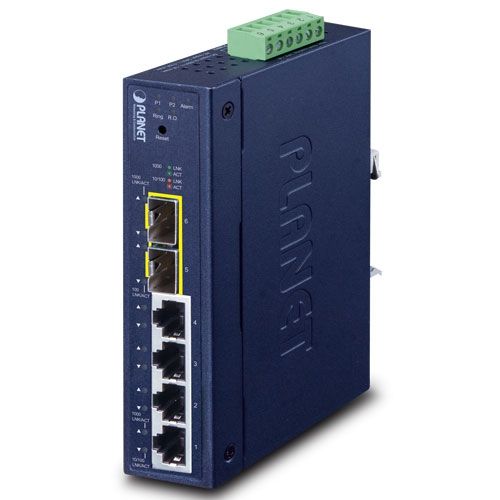

The PLANET IGS-4215-4T2S is a rugged DIN-rail L2/L4 managed Gigabit Ethernet switch ideal for harsh industrial environments. Featuring 4 10/100/1000BASE-T RJ45 ports and 2 SFP uplinks for long-distance fiber transmission, it combines powerful Layer 2 features, IPv6/IPv4 dual stack management, and robust security. With its -40 to 75 °C operating range, IP30 metal housing, and redundant power inputs, it delivers resilient, reliable networking for automation, surveillance, and industrial IoT.
Key Features:
- 4 x Gigabit RJ45 ports + 2 x SFP 100/1000BASE-X
- Operating range: -40 to +75 °C, IP30 aluminum casing
- ERPS ring protocol, MSTP, VLAN, QoS, ACL
- Compact, fanless design for tough installations
Technical Specifications:

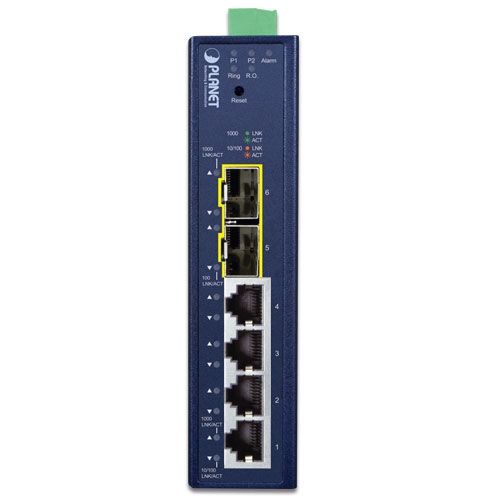

Ports:
- 4 x 10/100/1000BASE-T RJ45, auto MDI/MDI-X
- 2 x SFP (100/1000BASE-X, auto-detect)
- 1 x Reset Button (<5s reboot, >5s factory reset)
Enclosure & Mounting:
- IP30 rated metal housing
- Size: 32 × 87.8 × 135 mm, Weight: 400g
- Supports DIN-rail and wall-mount
- ESD Protection: ±6KV
- IEC shock, vibration, and free-fall compliant

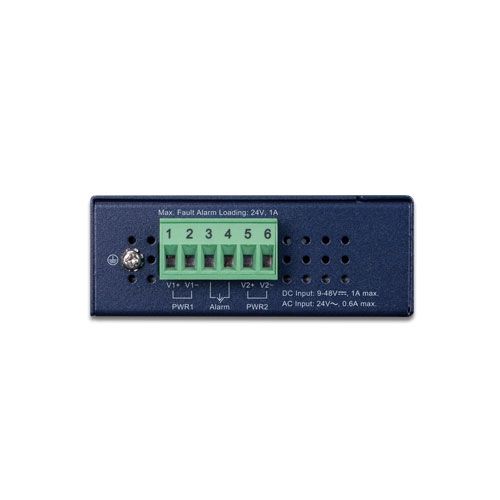

Power Input:
- Dual 9–48V DC or 24V AC with reverse polarity protection
- Max Power: 4.68W (DC), 4.3W (AC)
Layer 2 Capabilities:
- VLAN: IEEE 802.1Q, Q-in-Q, Voice, Protocol, MAC-based, Private VLAN
- GVRP, LLDP, Loop Protection
- Spanning Tree: STP, RSTP, MSTP with BPDU Guard
- Link Aggregation: 3 groups, up to 6 ports/group
- ERPS Ring (G.8032), IGMP v1/v2/v3 Snooping, MLD v1/v2
- Port Mirroring (many-to-1)
QoS:
- 8 queues per port
- Classification: 802.1p, DSCP, TOS, IP, Port
- Rate limiting and traffic policing
- Strict Priority, WRR, DSCP remarking
Security:
- ACLs: IP/MAC based (IPv4/IPv6)
- 802.1X, RADIUS, TACACS+, DHCP Option 82
- Port Security, IP Source Guard, ARP Inspection, DoS prevention
Management:
- IPv6/IPv4 dual stack
- Interfaces: Web GUI, Telnet, CLI, SNMP v1/v2c/v3, SSH, TLS
- Tools: PLANET Smart Discovery, UNI-NMS, CloudViewer
- Diagnostics: SFP-DDM, Cable Testing, Syslog, SNTP
SFP Fiber Uplink Support:
- Multi-mode fiber up to 2 km
- Single-mode fiber up to 120 km
Switch Performance:
- Architecture: Store-and-Forward
- Switch Fabric: 12 Gbps, Throughput: 8.9 Mpps
- 8K MAC Table, 9K Jumbo Frame, 4.1 Mbit buffer
