PLANET Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port
|
342,41 EUR |
|
|
( 407,47 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226003 |
|---|---|
| Mfg Part No: | IGS-4215-4P4T |
| UPC/EAN: | 4711605281591 |
| Weight: | 1.31 kg |
Product information for Planet IGS-4215-4P4T:
Compact and Reliable L2+ PoE+ Solution for Edge Applications

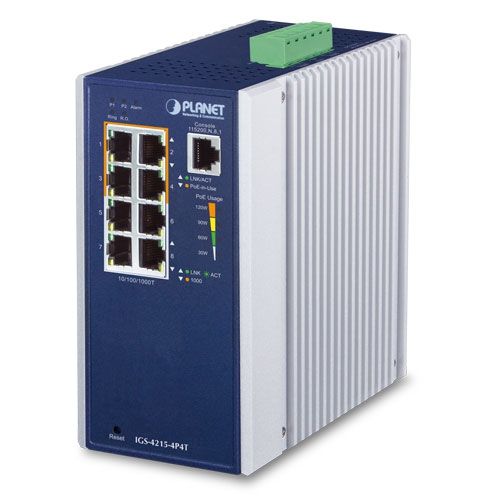

The PLANET IGS-4215-4P4T is an 8-port industrial-grade DIN-rail managed switch with 4 PoE+ (IEEE 802.3at) ports and 4 standard Gigabit ports. Designed to operate in extreme temperatures (-40 to 75 °C), this rugged IP30 metal-housed switch features 144W total PoE budget, intelligent PoE management, and real-time power usage indicators. Ideal for surveillance, VoIP, and WLAN applications in industrial automation, it includes full L2 functionality, IPv6/IPv4 stack, and advanced security (ACL, 802.1X, DHCP Snooping).
Key Features:
- 4 PoE+ ports (36W per port), 4 additional GbE ports
- Intelligent PoE Management: Alive Check, Schedule, Real-time Power LEDs
- PoE Extend Mode supports up to 250 meters
- Layer 2 features: VLAN, QoS, ERPS Ring, STP/MSTP, IGMP/MLD
- Security: ACLs, 802.1X, IP Source Guard, RADIUS/TACACS+
- Secure remote management: SNMPv3, TLSv1.2, SSH
- Durable IP30 housing with fanless thermal design
Technical Overview:
Ports:

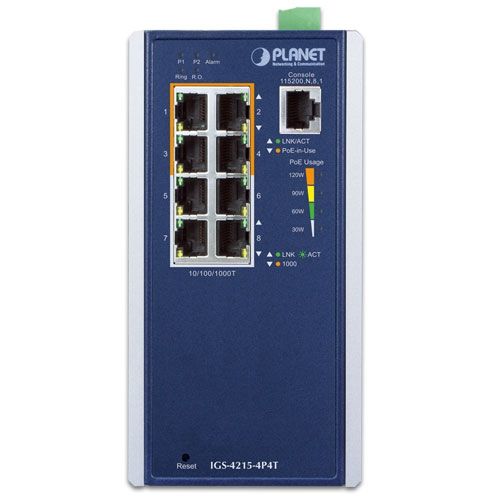

- 8 x 10/100/1000BASE-T RJ45
- 4 x IEEE 802.3at PoE+ (Ports 1–4)
- 1 x RJ45 console (RS232)
Housing & Installation:
- IP30 aluminum case, 76.8 × 107.3 × 152 mm, 1 kg
- DIN-rail and wall-mount options
- Operating temperature: -40 to +75 °C
Power Input:

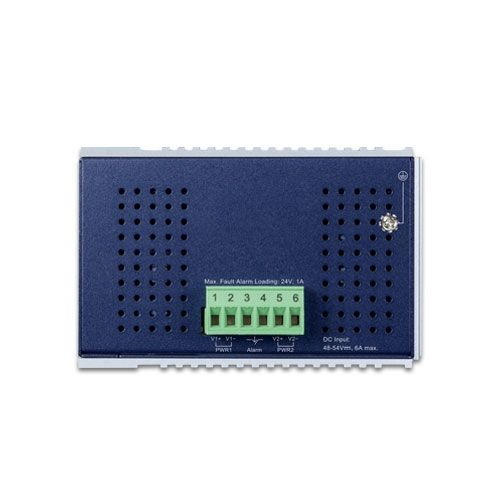

- 48–54V DC dual power inputs
- 144W total PoE budget
PoE+ Capabilities:
- IEEE 802.3at/af compliant
- 36W max per PoE port
- PoE scheduling, usage monitoring, LED indicators (30W/60W/90W/120W)
- Extend mode: up to 250m cable length
Layer 2 Capabilities:
- VLANs: 802.1Q, Q-in-Q, Voice, Protocol, Private VLANs, GVRP
- LACP: 4 groups with up to 8 ports
- ERPS ring (<450ms), STP/RSTP/MSTP, BPDU Guard
- IGMP/MLD Snooping (256 groups), multicast filtering
QoS & Traffic Management:
- 8 traffic queues
- Classification by port, DSCP, TOS
- Per-port rate limiting
Security:
- Port security, MAC/IP ACLs, 802.1X
- DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
- DoS prevention, RADIUS/TACACS+, SNMPv3, SSHv2, TLSv1.2
Management:
- Web UI, CLI (Telnet/SSH), SNMP v1/v2c/v3
- Firmware/config via HTTP/TFTP
- LLDP, SNTP, remote syslog, RMON
- PLANET NMS system, CloudViewer, Smart Discovery Utility
Questions & answers
What is the delivery time of PLANET Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port?
The article PLANET Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IGS-4215-4P4T to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port always at the best possible price. We can give you a discount of 2% on PLANET Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
