PLANET Industrial L2+ 16-Port Managed Switch IGS-4215-16P4X

PLANET IGS-4215-16P4X – Industrial L2+/L3 10G SFP+ Managed PoE+ Switch with VLAN Routing

Powerful Industrial PoE+ Switch with 10G Uplinks and Static Routing

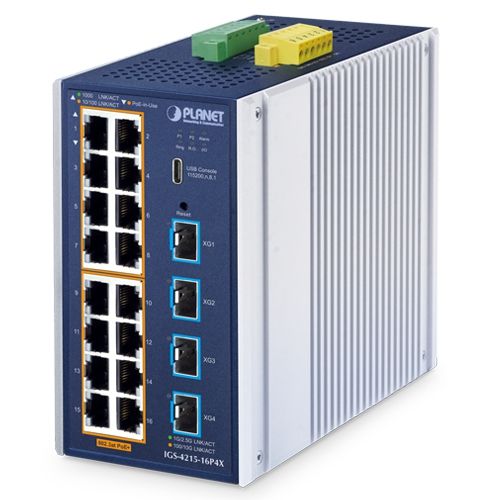

The PLANET IGS-4215-16P4X is a rugged DIN-rail-managed industrial PoE+ switch offering 16x Gigabit PoE+ ports (36W each) and 4x 10GBASE-X SFP+ uplink slots. With a 360W total PoE budget (dual power input), it’s designed for powering medium-load IP cameras, wireless APs, and VoIP systems. It supports Layer 3 static routing, ONVIF, Modbus TCP, and full IPv6 stack. The device operates from -40 to 75 °C and features a USB-C console for simplified management.

Key Features:

• 16x PoE+ Ports (IEEE 802.3at) + 4x 10G SFP+ uplinks
• 360W PoE budget (dual 54V input), 250m PoE extension
• L3 VLAN Routing: IPv4/IPv6 static routing (32 routes)
• ONVIF camera discovery, PD Alive check, PoE scheduling
• Modbus TCP, LLDP, ERPS (450ms recovery), USB-C CLI access

Technical Specs (English):

Physical Ports:

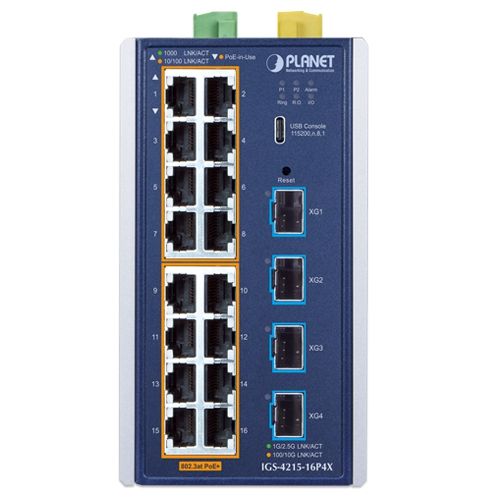

• 16 x 10/100/1000BASE-T RJ45 with PoE+ (Ports 1–16)
• 4 x 10G SFP+ (XG1–XG4), backward compatible with 100M/1G/2.5G SFP
• 1 x USB Type-C console port

PoE Support:

• IEEE 802.3at/af, 36W per port max
• 240W (single PSU) / 360W (dual PSU)
• Features: PD Alive, schedule, power limit/priority, 250m extend mode

Switching:

• Fabric: 112Gbps, Throughput: 83.33Mpps
• MAC Table: 32K, Buffer: 12Mbit, Jumbo: 12K

Layer 3 Routing:

• Static IPv4/IPv6 routing (up to 32 entries)
• VLAN-based routing (64 interfaces)

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, Voice, Protocol, Private, GVRP
• Link Aggregation: LACP, static trunks, 8 groups of 8 ports
• STP/RSTP/MSTP with BPDU Guard, IGMP/MLD snooping
• LLDP, ERPS ring protection (<450ms), port mirroring

Security:

• ACL: MAC/IP-based for L2–L4 filtering, 256 entries
• IEEE 802.1X, RADIUS/TACACS+, Port Security, IP Source Guard
• DHCP Snooping, ARP Inspection, DoS Protection

Quality of Service:

• 8 priority queues, DSCP/TOS marking, CoS (802.1p)
• Ingress/Egress rate limiting per port

Digital I/O and Alarms:

• 2x DI / 2x DO (external sensors/alarms)
• Relay output for power failure alert
• SNMP trap and email notifications

Management:

• Interfaces: Web, USB-C CLI, Telnet, SNMPv1/v2c/v3, SSHv2, TLSv1.3
• Remote tools: NMS, CloudViewer, Smart Discovery
• Syslog, LLDP, DDM, Dual Firmware, TFTP

Housing & Power:

• IP30 aluminum case, DIN-rail or wall-mount

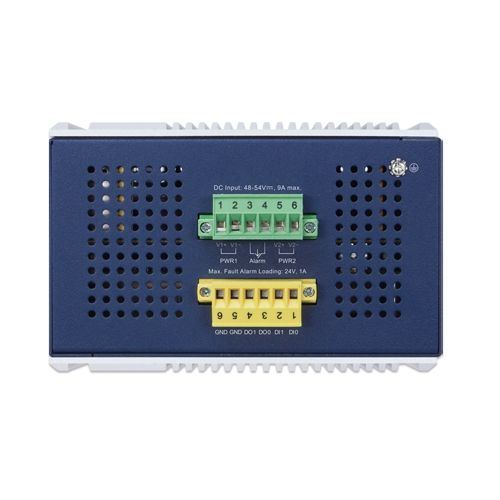

• Power: 48–54V DC redundant (9A max), 402W max. power draw
• Size: 86 x 135 x 152 mm, Weight: 1.75kg
• ESD: ±6kV contact, ±8kV air, ±4kV surge

Environment:

• Operating Temp: -40 to 75 °C, Storage: -40 to 85 °C
• Humidity: 5–95% (non-condensing)
