PLANET IGS-4215-16P2T2S – Industrial 20-Port L2/L4 Gigabit Managed PoE+ Switch with Intelligent PoE and Ring Protection

Cost-effective PoE+ Switch for Harsh Industrial Deployments

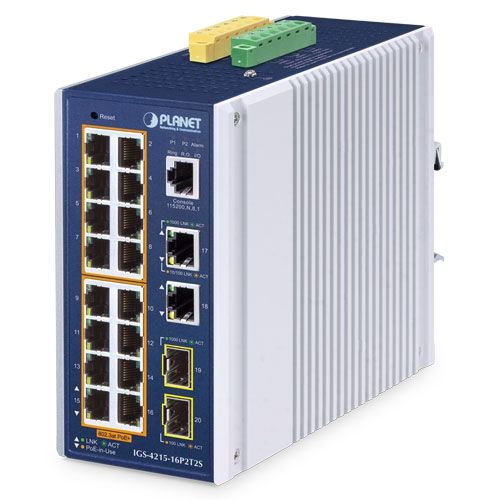

The PLANET IGS-4215-16P2T2S is a hardened industrial-grade switch with 16 PoE+ ports delivering up to 36W each, 2 Gigabit RJ45 uplink ports, and 2 SFP slots for long-range fiber uplinks. It offers advanced PoE management (scheduling, PD alive check, extension), full IPv6 support, robust security, traffic control, and ERPS ring recovery in a compact IP30 aluminum enclosure. Ideal for surveillance, VoIP, and wireless infrastructure in demanding environments.

Key Features:

• 16x 10/100/1000BASE-T PoE+ Ports, 2x RJ45 + 2x 100/1000BASE-X SFP
• 320W PoE power budget, up to 36W per port
• Advanced PoE: extension to 250m, schedule, PD health monitoring
• IPv4/IPv6 dual stack, ACLs, DHCP snooping, IGMP/MLD
• Operating temp: -40 ~ 75 °C, aluminum housing
• Strong ESD/surge protection (±6kV/±8kV/±4kV)

Technical Specifications (English):

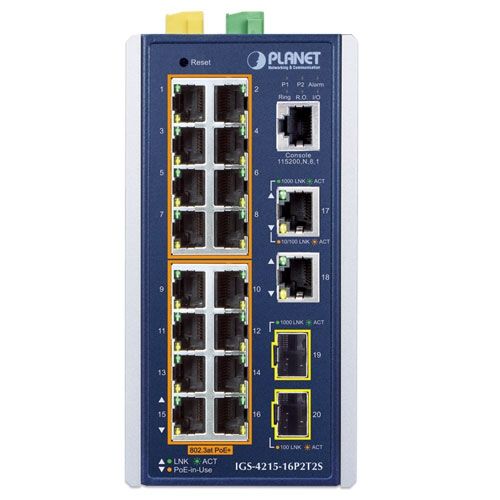

Ports:

• 16 x IEEE 802.3af/at PoE+ RJ45 (1–16)
• 2 x Gigabit RJ45 uplinks (17–18)
• 2 x 100/1000BASE-X SFP uplinks (19–20)
• 1 x RS232 Console (RJ45)

PoE Features:

• End-span PSE, 320W budget (dual 54V input)
• Extended mode up to 250m at 10Mbps
• PoE management: port control, budget, PD classification
• Smart PoE: Schedule, PD Alive, Temp Threshold, Force Mode

Switching:

• Switching Fabric: 40Gbps, 29.7Mpps throughput
• 8K MAC, 4Mbit buffer, 10K Jumbo Frames

Layer 2 Functions:

• VLAN: 802.1Q, Q-in-Q, Private, Voice, Protocol, Management
• Trunking: 8 LACP/static groups, 8 ports each
• Spanning Tree: STP, RSTP, MSTP, BPDU Guard
• Multicast: IGMP v2/v3, MLD v1/v2, up to 256 groups
• QoS: 8 priority levels, WRR & strict mode, DSCP/TOS classification
• LLDP/LLDP-MED, ERPS (<450ms), loop & port mirror support

Security:

• Access Control Lists: IP/MAC/Protocol-based (IPv4/IPv6)
• IEEE 802.1X, RADIUS, TACACS+, DHCP Snooping
• ARP Inspection, IP Source Guard, DoS protection
• Port & MAC security

Management & Diagnostics:

• Interfaces: Web, CLI (Telnet/Console), SNMPv1/v2c/v3
• Tools: Cable Diagnostics, SFP-DDM, PING, Syslog, SNTP
• Remote: Smart Discovery, CloudViewer, Dual Firmware/Image

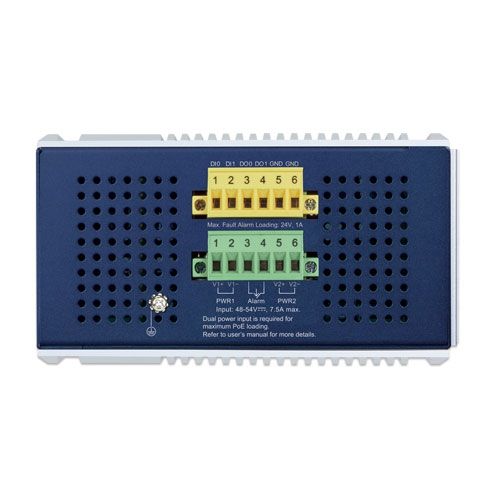

Alarms & Digital I/O:

• 2 Digital Inputs, 2 Digital Outputs (external sensors & alarms)
• Relay for power failure (1A @ 24VDC)

Housing & Environment:

• Aluminum IP30, DIN-rail/wall mount
• Size: 76 x 135 x 152 mm, Weight: 1404 g
• Power: 48–54V DC (recommended ≥51V for full PoE+)
• Operating: -40 ~ 75 °C, Humidity: 5–95 % (non-condensing)
