PLANET Industrial 16-Port PoE Switch 10/100/1000T 2xUP 2xSFP
|
798,47 EUR |
|
|
( 950,18 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1521138 |
|---|---|
| Mfg Part No: | IGS-20160HPT |
| UPC/EAN: | 4711605281751 |
| Weight: | 1.82 kg |

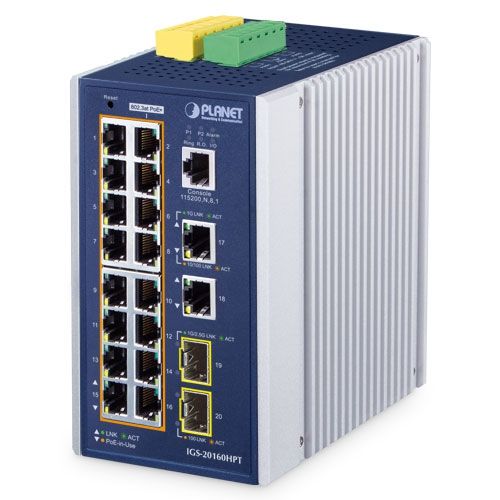

Product information for Planet IGS-20160HPT:
Advanced Layer 3 PoE+ Switch for Harsh Environments and High-Demand Applications
The PLANET IGS-20160HPT is a fully managed Layer 3 industrial-grade switch featuring 16 PoE+ Gigabit ports (up to 36W each), two additional RJ45 ports, and two 100/1000/2500BASE-X SFP slots. Housed in a robust IP30 aluminum enclosure, it operates in extreme temperatures from -40 to 75 °C and offers a complete set of L2/L3 management, ERPS ring resilience, intelligent PoE controls, dynamic routing, and remote monitoring via UNI-NMS or CloudViewer.
Key Features:
- 16x 10/100/1000T PoE+ Ports + 2x RJ45 + 2x 2.5G SFP
- 360W total PoE budget (dual 54V input)
- IPv4/IPv6 L3 Dynamic Routing (RIP, OSPF), up to 4K VLANs
- Wide operating range: -40 ~ 75 °C
- ERPS Ring <10ms, IEEE 1588 PTP, Modbus TCP
- Advanced Security: ACL, 802.1X, RADIUS, SNMPv3
Technical Specifications (English):

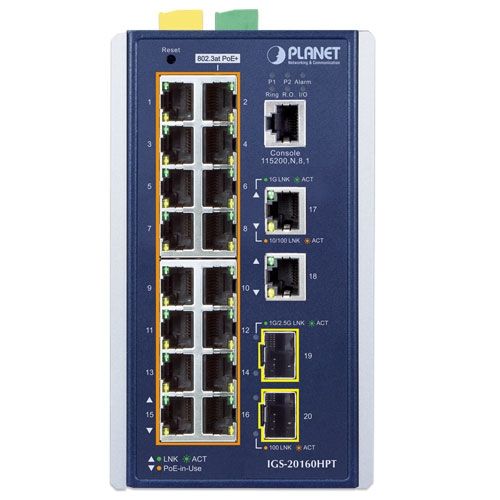

Ports:
- 16 x PoE+ 10/100/1000BASE-T (802.3af/at)
- 2 x RJ45 Gigabit Ethernet
- 2 x 100/1000/2500BASE-X SFP (auto detect)
- 1 x Console RJ45
Power over Ethernet:
- 802.3at compliant, up to 36W per port
- Total power budget up to 360W (dual 54V)
- PoE features: scheduling, PD alive check, priority, budget limit, extend mode
Layer 3 Routing:
- Static: IPv4/IPv6, up to 128 entries
- Dynamic: RIP v1/v2, OSPFv2 (IPv4), OSPFv3 (IPv6)
- 128 VLAN interfaces, 4K H/W forwarding
Layer 2 Capabilities:
- VLAN: 802.1Q, Q-in-Q, MAC/IP-based, protocol-based, voice VLAN
- Spanning Tree: STP, RSTP, MSTP (7 instances)
- Link Aggregation: 10 groups, up to 16 ports each
- Port Mirroring, IGMP/MLD Snooping, ERPS (<10ms)
Security:
- ACLs (IP/MAC, VLAN, TCP/UDP), Port Security
- 802.1X Auth (port/MAC), RADIUS, TACACS+
- DHCP Snooping, ARP Inspection, IP Source Guard
Management & Diagnostics:
- Web UI, CLI (Telnet/Console), SNMP v1/v2c/v3
- NMS integration, CloudViewer app support
- SFP-DDM, cable diagnostics, ONVIF device map
- Remote firmware update, LLDP, dual firmware image

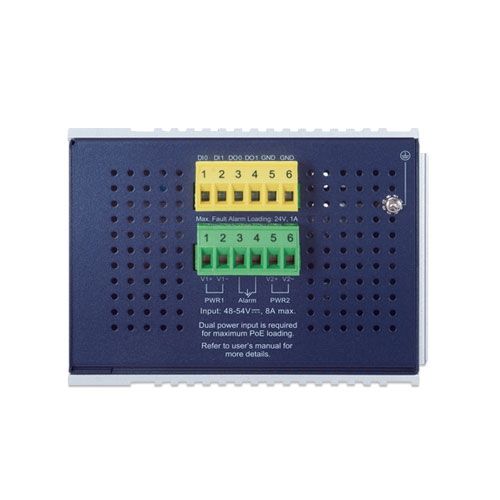

Alarm & Industrial Features:
- 2 x DI / 2 x DO (24VDC open collector)
- Relay: 1A @ 24VDC for power fail
- Modbus TCP, IEEE 1588v2 PTP Transparent Clock
Chassis & Environmental:
- IP30 aluminum case, DIN-rail/wall-mountable
- Size: 86.8 x 107.3 x 152 mm, Weight: 1548 g
- Operating temp: -40 ~ 75 °C, ESD: ±6kV DC
- Dual power input: 48~54V DC, recommended ≥51V
Questions & answers
What is the delivery time of PLANET Industrial 16-Port PoE Switch 10/100/1000T 2xUP 2xSFP?
The article PLANET Industrial 16-Port PoE Switch 10/100/1000T 2xUP 2xSFP is currently in stock
According to our experience the article is ready for dispatch within 1 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IGS-20160HPT to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Industrial 16-Port PoE Switch 10/100/1000T 2xUP 2xSFP always at the best possible price. We can give you a discount of 2% on PLANET Industrial 16-Port PoE Switch 10/100/1000T 2xUP 2xSFP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
