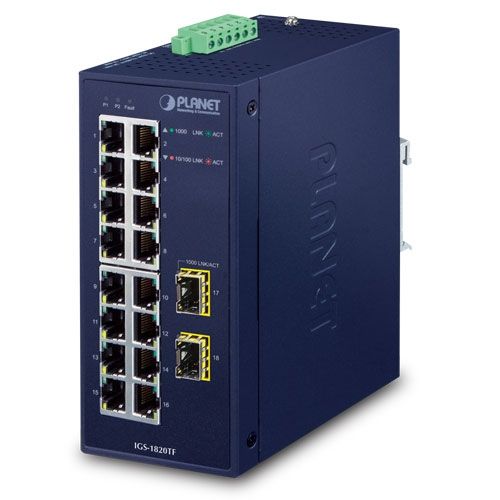

PLANET IGS-1820TF – 18-Port Industrial Gigabit Switch with Fiber Uplink

Reliable Plug-and-Play Networking for Harsh Environments

The PLANET IGS-1820TF is an 18-port industrial unmanaged Gigabit Ethernet switch featuring 16 copper ports and 2 SFP slots for long-distance fiber uplink. With a robust IP30-rated metal case, wide voltage power input and extended temperature tolerance, this switch is designed for critical environments such as factories, traffic systems, and surveillance networks. Its plug-and-play design allows for instant deployment while offering energy savings via IEEE 802.3az.

Key Features:

• 16 x 10/100/1000BASE-T + 2 x 1000BASE-X SFP ports
• Operating temperature: -40 to 75 °C
• ±6KV ESD and surge protection
• Dual power input: 12–48V DC or 24V AC
• Energy Efficient Ethernet (IEEE 802.3az)

Technical Specifications (English):

Ports:

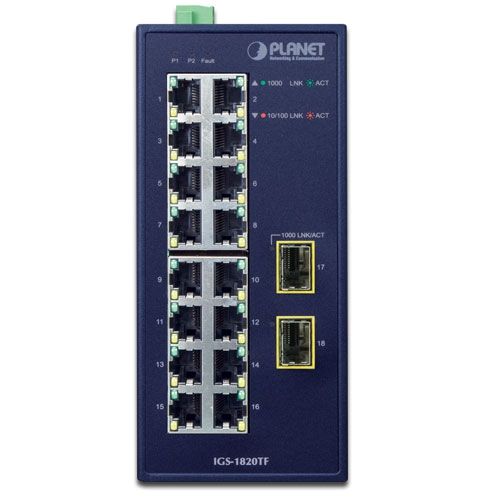

• 16 x 10/100/1000BASE-T RJ45 with Auto MDI/MDI-X
• 2 x 1000BASE-SX/LX/BX SFP interfaces

Switching:

• Architecture: Store-and-Forward
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.79 Mpps
• MAC Table: 8K entries
• Jumbo Frame: 10K bytes
• Buffer Memory: 4.1 Mbits
• Flow Control: IEEE 802.3x pause / Back pressure

Layer 2 Capabilities:

• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.1p Class of Service
• Auto MAC learning and aging

Power:

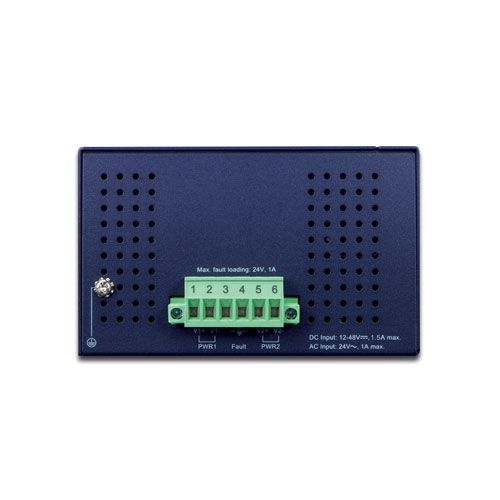

• Dual Input: 12–48V DC or 24V AC
• Reverse polarity protection, hardware failover
• Power Consumption:
• DC: max. 11.1W
• AC: max. 15W

Mechanical & Environmental:

• IP30-rated metal enclosure
• DIN-rail and wall-mountable
• Dimensions: 66 x 107 x 152 mm
• Weight: 745 g
• Operating Temperature: -40 to 75 °C
• ESD Protection: ±6KV contact/air
• Certified against drop, vibration and shock

Certifications:

• FCC Part 15 Class A, CE
• Stability testing: IEC 60068-2-32/27/6
