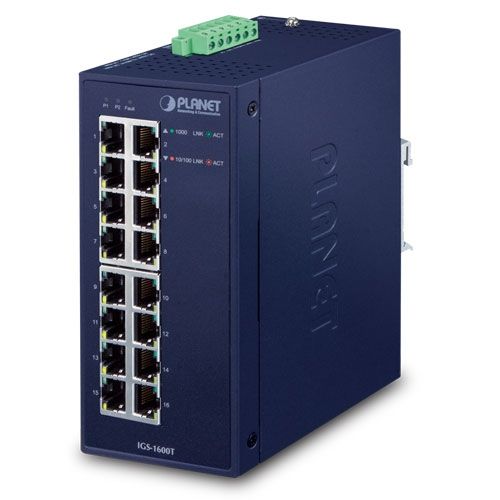

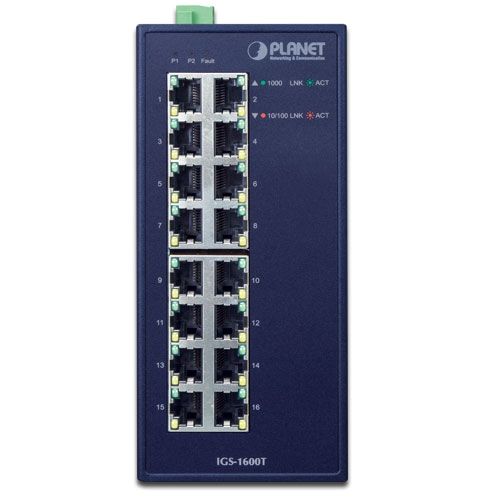

PLANET Industrial 16-Port 10/100/1000T Switch
|
275,53 EUR |
|
|
( 327,88 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 277509 |
|---|---|
| Mfg Part No: | IGS-1600T |
| UPC/EAN: | 4711605284882 |
| Weight: | 1.01 kg |
Product information for Planet IGS-1600T:
High-density Gigabit Switching for Harsh Environments
The PLANET IGS-1600T is an industrial-grade 16-port unmanaged Gigabit switch designed for rugged environments like manufacturing, warehouses, and roadside cabinets. It features robust IP30 metal housing, dual power inputs, and wide temperature tolerance. The switch supports IEEE 802.3az energy-saving technology and delivers stable high-speed performance with 32Gbps switching capacity and ESD/surge protection.
Key Features:
- 16 x 10/100/1000BASE-T ports with Auto MDI/MDI-X
- ±6KV ESD & surge immunity
- Dual power input: 12–48V DC or 24V AC
- IEEE 802.3az Energy Efficient Ethernet
- -40 to 75 °C wide temperature support
Technical Specifications (English):
Ports:
- 16 x 10/100/1000BASE-T RJ45 ports (Auto-MDI/MDI-X)
Switching:
- Architecture: Store-and-Forward
- Switching Capacity: 32 Gbps
- Forwarding Rate: 23.81 Mpps
- MAC Address Table: 8K entries
- Jumbo Frame: 10K bytes
- Buffer: 4.1 Mbits
- Flow Control: IEEE 802.3x pause frame / Back pressure
Layer 2 Functions:
- Standards: IEEE 802.3, 802.3u, 802.3ab
- Auto-negotiation (10/100/1000Mbps)
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1p Class of Service
- Auto MAC learning and aging

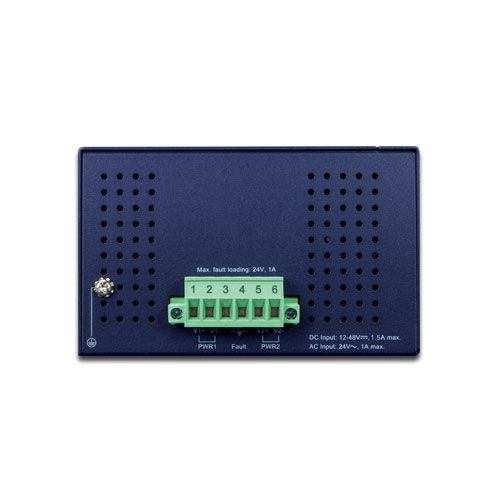

Power Supply:
- Dual input: 12–48V DC or 24V AC
- Reverse polarity protection
- Power Consumption:
- DC: max. 8.7W
- AC: max. 13.99W
Housing and Environment:
- IP30 metal case
- DIN-rail and wall-mountable
- Dimensions: 66 x 107 x 152 mm
- Weight: 743 g
- Operating Temperature: -40 to 75 °C
- ESD Protection: ±6KV contact/air
- IEC 60068 (shock, vibration, drop)
Certifications:
- FCC Part 15 Class A, CE, UL
- Industry-rated for shock, vibration, and free fall
Questions & answers
What is the delivery time of PLANET Industrial 16-Port 10/100/1000T Switch?
The article PLANET Industrial 16-Port 10/100/1000T Switch is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IGS-1600T to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Industrial 16-Port 10/100/1000T Switch always at the best possible price. We can give you a discount of 2% on PLANET Industrial 16-Port 10/100/1000T Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
