PLANET Industrial 8-Port GE 802.3at PoE + 2 100/1000X SFP
|
289,74 EUR |
|
|
( 344,79 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 276183 |
|---|---|
| Mfg Part No: | IGS-1020PTF |
| UPC/EAN: | 4711605284943 |
| Weight: | 1.15 kg |
Product information for Planet IGS-1020PTF:

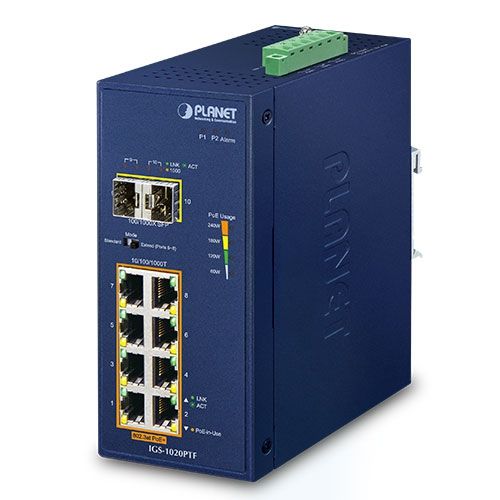

Rugged PoE+ Ethernet Switch with Fiber Uplinks for Harsh Industrial Environments
The PLANET IGS-1020PTF is a robust unmanaged industrial-grade PoE+ switch equipped with eight Gigabit Ethernet ports with IEEE 802.3at PoE+ support and two SFP uplink slots. Its IP30-rated metal enclosure, wide operating temperature range (-40 to 75°C), and redundant 48~54V DC power input make it ideal for remote deployments like factory automation, security surveillance, and outdoor cabinets.
Key Features:
- Plug-and-Play installation
- IEEE 802.3at PoE+ up to 30W per port (total 240W)
- Extended PoE mode: 250m @10Mbps
- Dual 100/1000BASE-X SFP ports
- Dual power input with hardware failover
- Fanless and silent operation
Technical Specifications (English):

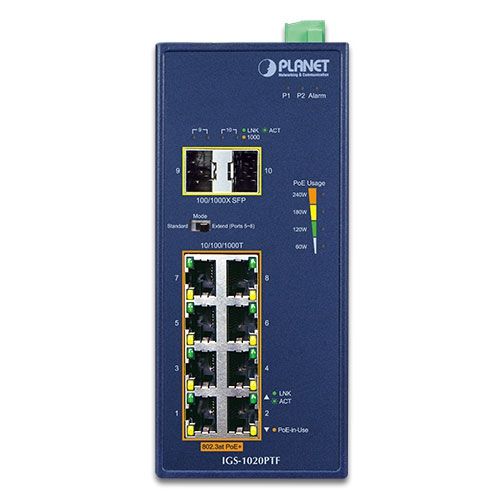

Network Interfaces:
- 8 x 10/100/1000BASE-T RJ45 with PoE+ injector (IEEE 802.3af/at)
- 2 x 100/1000BASE-X SFP slots (auto-detect)
PoE Power Delivery:
- Total PoE budget: 240W
- Max 30W per port
- Supports “Standard” and “Extend” modes (up to 250m in Extend)
- 4-stage PoE usage LED: 60W / 120W / 180W / 240W
Construction & Protection:
- Rugged IP30 metal case
- DIN-rail, wall or side mountable
- Size: 66 x 107 x 152 mm
- Weight: 837g
- ESD: ±6kV contact & air discharge
- Shock/Vibration tested to IEC 60068
Switching Specifications:
- Switch fabric: 20Gbps
- Throughput: 14.88 Mpps
- 8K MAC address table
- Jumbo frame support: 9KB
- Packet buffer: 4Mbit
- IEEE 802.3x flow control, backpressure support
- Store-and-forward switching

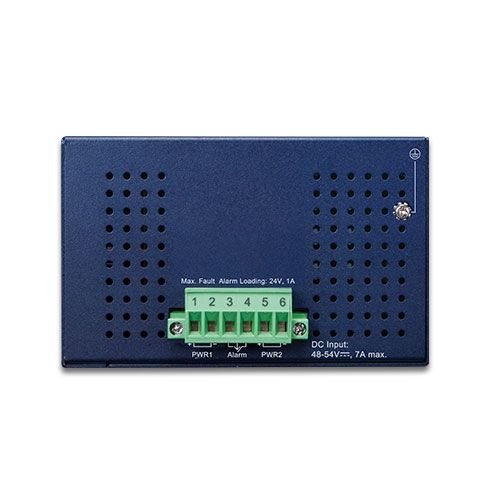

Power Supply:
- 48~54V DC via removable 6-pin terminal block
- Max power draw: 265W (fully loaded with PoE)
Environmental Specifications:
- Operating Temp: -40 ~ 75°C
- Storage Temp: -40 ~ 85°C
- Humidity: 5~95% non-condensing
Ideal Applications:
- Centralized PoE deployment for up to 8 IP cameras
- Wireless access points in harsh zones
- Industrial and traffic cabinets with fiber backbone
- Fiber uplink to NVR/monitoring center for secure surveillance
