PLANET Industrial 8-Port GE PoE+ 2-port SFP IGS-10020HPT-U
|
531,07 EUR |
|
|
( 631,97 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 473972 |
|---|---|
| Mfg Part No: | IGS-10020HPT-U |
| UPC/EAN: | 4711605287135 |
| Weight: | 0.12 kg |
Product information for Planet IGS-10020HPT-U:
Rugged and Intelligent PoE+ Switch for Industrial and Transportation Networks
The PLANET IGS-10020HPT series combines industrial reliability, high-power PoE+, and advanced Layer 2/3 functionality in a compact IP30 aluminum housing. It features 8 Gigabit PoE+ ports and 2 SFP slots (up to 2.5G), making it ideal for IP surveillance, automation, vehicle, and factory deployments.
With redundant power (12–48/54V), up to 240W PoE budget, ONVIF camera integration, and remote diagnostics via UNI-NMS or CloudViewer, it delivers maximum efficiency and uptime. Enhanced with features like G.8032 ERPS Ring, VLAN routing, LLDP, Modbus TCP, and IEEE 1588 PTP, the switch serves as a flexible network backbone for any industrial-grade environment.
Key Technical Specs (English):

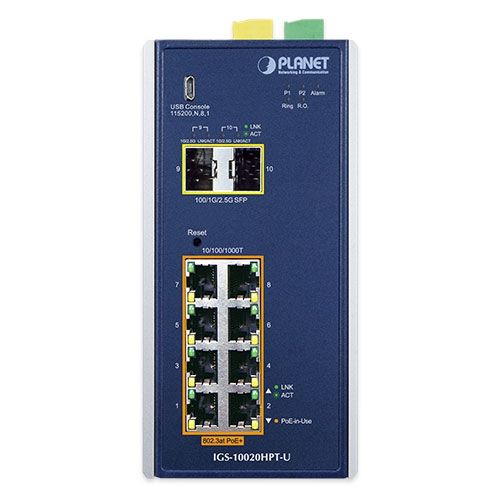

Interfaces:
- 8 x 10/100/1000BASE-T RJ45 (IEEE 802.3af/at PoE+)
- 2 x 100/1000/2500BASE-X SFP slots
- 1 x RJ45 or 1 x USB console
PoE Capabilities:
- Up to 36W per port, 240W total
- Intelligent PoE features: scheduling, PD check, priority, power limit
- Extended mode: up to 200m distance per port
Layer 2/3 Networking:
- VLAN: 4K IDs, MAC/Protocol/Voice VLANs, Private VLAN, Q-in-Q
- L3 Routing: 32 IPv4/IPv6 static routes
- Link Aggregation: 5 groups x 10 ports
- QoS: 8 queues, 802.1p, DSCP, traffic shaping
- IGMP v1/v2/v3, MLD v1/v2, MVR multicast management
Security & Management:
- Access control: 802.1X, RADIUS, MAC, ACLs, IP Source Guard
- Web, CLI, SNMP v1/v2c/v3, SSHv2, TLS

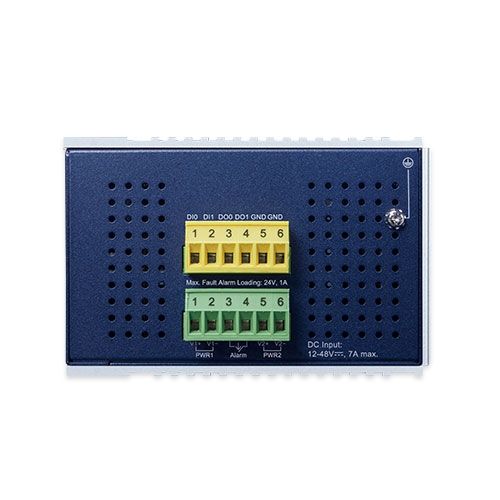

- Diagnostics: SFP-DDM, port cable test, digital alarm input/output
- Alerts: SNMP trap, Syslog, email
Hardware:
- Enclosure: IP30 aluminum
- Dimensions: 76.8 x 107.3 x 152 mm
- Weight: ~1.1 kg
- Power Input: 12–48V (HPT) / 12–54V (HPT-U), dual redundant
- Operating Temp: -40 to 75°C
- ESD/EFT protection: ±6kV
- Certifications: CE, FCC, e-Mark
Highlights:
- Supports ERPS Ring (G.8032), STP/RSTP/MSTP
- Modbus TCP & IEEE 1588v2 PTP for factory integration
- Integrated ONVIF device detection and floorplan mapping
- Managed via PLANET’s UNI-NMS and CloudViewer platforms
Questions & answers
What is the delivery time of PLANET Industrial 8-Port GE PoE+ 2-port SFP IGS-10020HPT-U?
The article PLANET Industrial 8-Port GE PoE+ 2-port SFP IGS-10020HPT-U is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IGS-10020HPT-U to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Industrial 8-Port GE PoE+ 2-port SFP IGS-10020HPT-U always at the best possible price. We can give you a discount of 2% on PLANET Industrial 8-Port GE PoE+ 2-port SFP IGS-10020HPT-U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
