PLANET Industrial 8-Port PoE+ Switch IGS-1000-8UP4X
|
481,15 EUR |
|
|
( 572,57 EUR incl. VAT ) ≈ £414.75 | ≈ $545.62 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 16 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1196980 |
|---|---|
| Mfg Part No: | IGS-1000-8UP4X |
| UPC/EAN: | 4711605287647 |
| Weight: | 0.12 kg |
Product information for Planet IGS-1000-8UP4X:
Outstanding PoE++ and 10G Fiber Solution for Harsh Industrial Environments

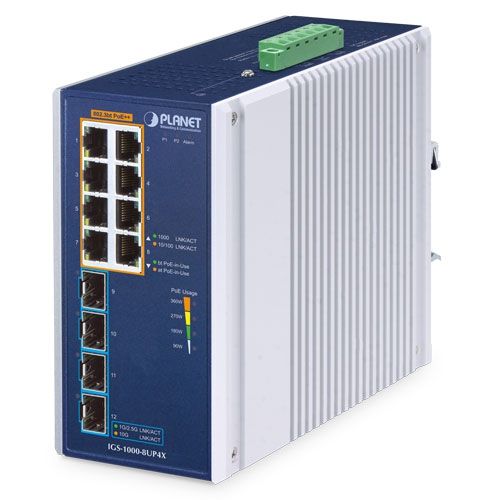

The PLANET IGS-1000-8UP4X is a high-performance unmanaged industrial switch that offers eight Gigabit 802.3bt PoE++ ports and four 10G SFP+ uplinks. Supporting up to 95 watts per port and a total PoE budget of 360W, it delivers both power and data to demanding PoE devices such as IP cameras, thin clients, and digital signage systems.
Equipped with four 10GBASE-X SFP+ fiber slots, it ensures ultra-fast uplinks over long distances (up to 80km). Its fanless, rugged IP30 aluminum housing and wide operating temperature (-40 to 75 °C) make it ideal for industrial sites, transportation, security surveillance, and smart building infrastructure.
Technical Specifications:
Interfaces:
- 8 x 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE++
- 4 x 10GBASE-X SFP+ slots (compatible with 1000/2500BASE-X)
Power over Ethernet:
- Standards: IEEE 802.3bt Type 4, IEEE 802.3at backward compatible
- Up to 95W per port
- PoE budget: up to 360W (dual input), 240W (single)
- PoE pin assignment: End-span + Mid-span
- Intelligent LED for 90W, 180W, 270W, 360W usage
Switching Features:
- Switching Architecture: Store-and-Forward
- Switch Fabric: 96Gbps
- Throughput: 71.43 Mpps @ 64 bytes
- MAC Table: 16K
- Jumbo Frame: 12KB
- Buffer: 12Mbit
- Flow Control: IEEE 802.3x (full duplex), Backpressure (half)

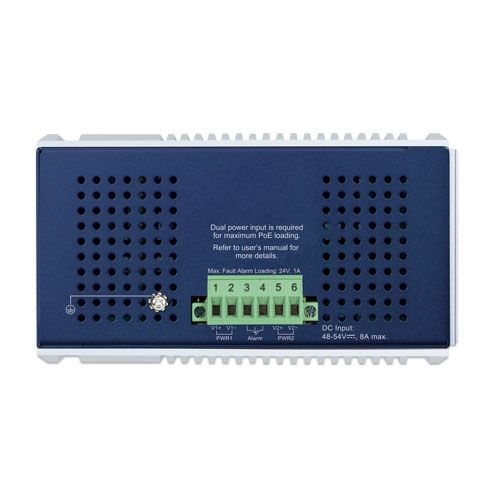

Power Input:
- Voltage: 48–54V DC, max. 8A
- Redundant input with reverse polarity protection
- Power Consumption: up to 387.2W (with PoE)
Mechanical & Environmental:
- Enclosure: IP30 aluminum
- Dimensions: 76 × 135 × 152 mm
- Weight: 1352g
- Mounting: DIN rail and wall mount
- ESD Protection: ±6kV
- Operating Temp: -40 to 75°C
- Humidity: 5–90% non-condensing

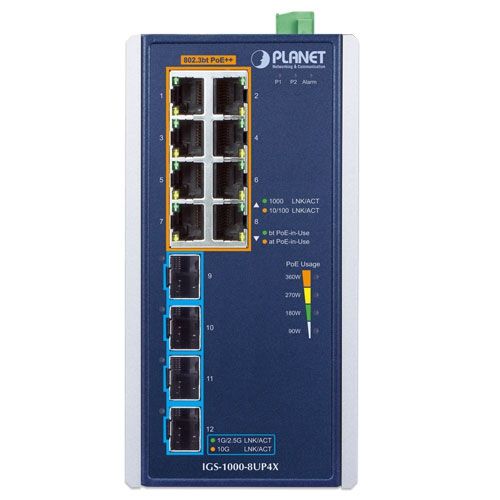

LED Indicators:
- System: P1/P2 (Green), Alarm (Red)
- RJ45 Ports: Link/ACT (Green/Amber), PoE usage (Green/Amber)
- SFP+ Ports: 1G/2.5G (Green), 10G (Amber)
- PoE Power Status: 90W, 180W, 270W, 360W (Amber)
Compliance & Certifications:
- IEEE 802.3 series, IEEE 802.1p
- FCC Class A, CE
- IEC 60068 tested (drop, shock, vibration)
