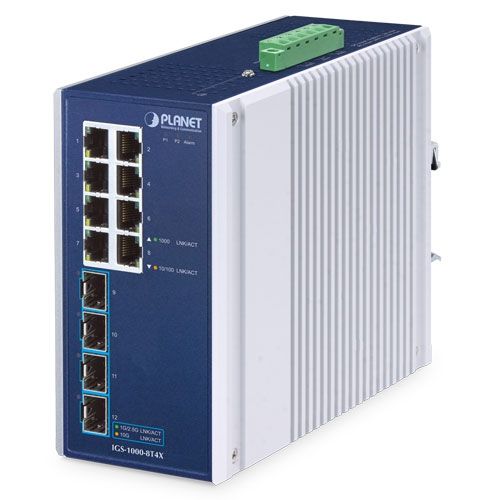

PLANET IGS-1000-8T4X – Industrial 10G Unmanaged Ethernet Switch

Reliable Industrial Ethernet with 10G Fiber Uplinks and Plug-and-Play Configuration

The PLANET IGS-1000-8T4X is a rugged, unmanaged Ethernet switch designed for demanding industrial environments. It includes eight 10/100/1000BASE-T ports and four 10GBASE-X SFP+ slots for long-distance, high-speed fiber uplinks. With 96 Gbps switch fabric and a wide operating temperature range (-40 to 75 °C), it ensures uninterrupted performance in harsh conditions like factory floors, transport hubs, or surveillance centers.

This switch supports various fiber modes—multimode (300m) and single mode (up to 80 km)—via duplex or WDM SFP modules, making it ideal for network expansion in backbone or data center deployments. Dual DC/AC power inputs with failover and reverse polarity protection ensure high availability and reliability.

Technical Specifications:

Interfaces:

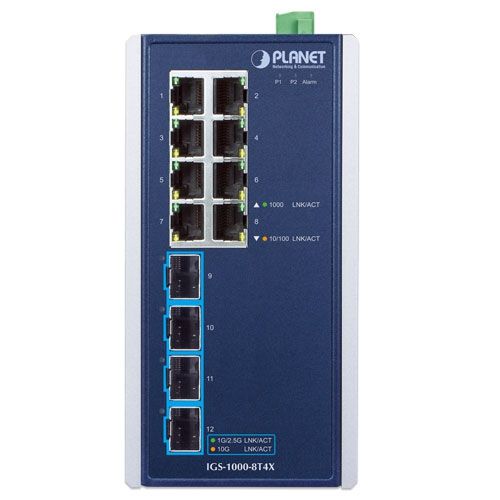

• 8 x 10/100/1000BASE-T RJ45 (Auto-MDI/MDI-X)
• 4 x 10GBASE-X SFP+ slots (compatible with 1000BASE-X / 2500BASE-X)

Switching:

• Architecture: Store-and-Forward
• Switch Fabric: 96 Gbps
• Throughput: 71.43 Mpps @ 64 bytes
• Jumbo Frame: 12KB
• MAC Table: 16K entries
• Flow Control: IEEE 802.3x full duplex, backpressure for half duplex

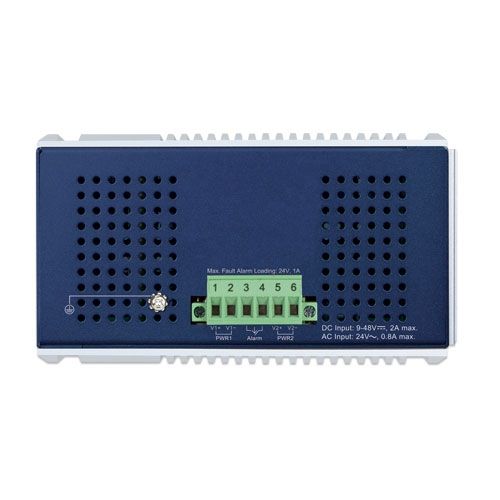

Power:

• Input: 9–48 V DC, max. 4A or 24 V AC
• Redundant input with reverse polarity protection
• Power Consumption: max. 14.73 W / 50.2 BTU
• Alarm output for power failure

Mechanical:

• Enclosure: IP30 aluminum
• Dimensions: 76 × 135 × 152 mm
• Weight: 1211 g
• Mounting: DIN-rail and wall-mount

Protection & Environment:

• ESD Protection: ±6 kV
• Operating Temp: -40 to 75 °C
• Humidity: 5–90% non-condensing

LED Indicators:

• System: P1, P2 (Green), Alarm (Red)
• RJ45 Ports: 1000Mbps (Green), 10/100Mbps (Amber)
• SFP+ Ports: 1G/2.5G (Green), 10G (Amber)

Certifications & Standards:

• Regulatory: FCC Part 15 Class A, CE
• Testing: IEC 60068-2-32 (drop), -2-27 (shock), -2-6 (vibration)
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3x, 802.1p
