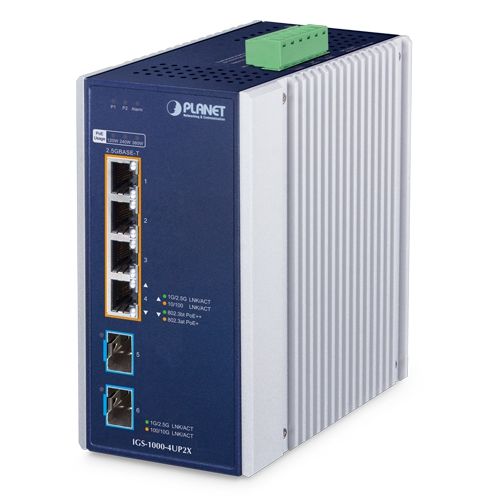

Planet Industrial 4-Port PoE++ Switch IGS-1000-4UP2X
|
373,42 EUR |
|
|
( 444,37 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1196979 |
|---|---|
| Mfg Part No: | IGS-1000-4UP2X |
| UPC/EAN: | 4711605288033 |
| Weight: | 1.31 kg |
Product information for Planet IGS-1000-4UP2X:
Reliable Industrial Ethernet with 10G Fiber Uplinks and Plug-and-Play Setup
The PLANET IGS-1000-4UP2X is a rugged unmanaged switch designed for industrial applications, featuring four 10/100/1000/2500BASE-T RJ45 ports and two 10G SFP+ uplinks. It supports IEEE 802.3bt PoE++ for delivering up to 95W per port, making it perfect for high-power devices like PTZ cameras, digital signage, and touch PCs. With plug-and-play convenience, it simplifies deployment while offering high-speed performance and robust operation.
With a 60 Gbps switching fabric and operating temperature range of -40 to 75 °C, this IP30-rated device is ready for deployment in factories, transport hubs, and harsh outdoor environments. The real-time PoE LED indicators (120W/240W/360W) help users monitor system usage efficiently.
Technical Specifications:
Interfaces:
- 4 x 10/100/1000/2500BASE-T RJ45 (Auto-MDI/MDI-X)
- 2 x 10GBASE-X SFP+ ports (backward compatible with 100/1000/2500BASE-X)
PoE Features:
- IEEE 802.3bt compliant, backward compatible with 802.3at/af
- 4 ports with up to 95W each, 360W total budget (dual input)
- Power pin assignment: End-span + Mid-span
- Auto PD detection and safe power delivery
- Up to 100m power transmission
Switching Performance:
- Architecture: Store-and-Forward
- Switch Fabric: 60Gbps
- Throughput: 44.462 Mpps @ 64 bytes
- MAC Table: 4K entries
- Jumbo Frame: 12KB
- Buffer Memory: 8Mbit
- Flow Control: IEEE 802.3x (full), backpressure (half)
Mechanical & Protection:
- Enclosure: IP30 aluminum case
- Size: 76.8 × 107.3 × 152 mm
- Weight: 1018g
- Mounting: DIN-rail or wall
- ESD Protection: ±8kV air, ±4kV contact
- Surge Protection: ±5kV
- Temp Range: -40 to 75 °C
- Humidity: 5–90% non-condensing

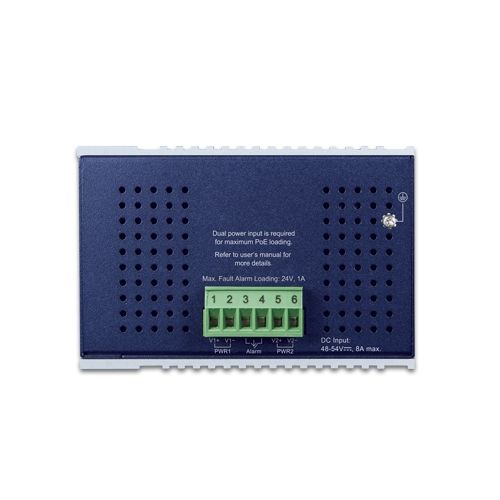

Power Supply:
- Input: 48–54V DC (max 8A)
- Dual redundant input with reverse polarity protection
- Power Consumption: up to 372W (PoE full load)

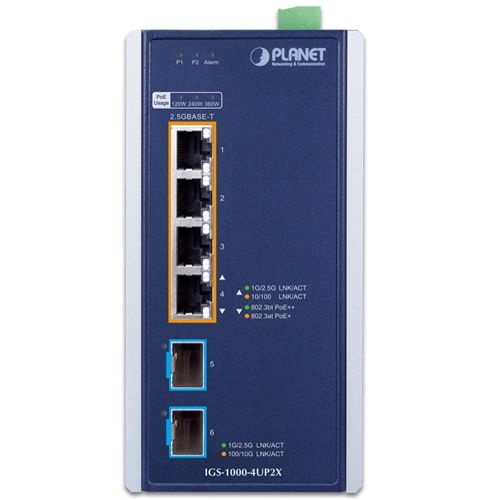

LED Indicators:
- System: P1/P2 (Green), Alarm (Red)
- RJ45 Ports: Link/ACT & PoE in use (Green/Amber)
- SFP+: Link/ACT (Green/Amber)
- PoE Usage: 120W, 240W, 360W (Amber)
Certifications & Standards:
- FCC Class A, CE
- Tested: IEC 60068 (shock, vibration, fall)
- Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3bt, 802.3at, 802.3af, 802.3az, 802.1p, 802.3bz
