PLANET 10/100Base-TX to 100Base-FX (SFP) Industrial Media
|
84,90 EUR |
|
|
( 101,03 EUR incl. VAT ) ≈ £73.18 | ≈ $96.28 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226011 |
|---|---|
| Mfg Part No: | IFT-805AT |
| UPC/EAN: | 4711213687570 |
| Weight: | 0.57 kg |
Product information for Planet IFT-805AT:
Distance Extension with High Performance and Steady Network Communication

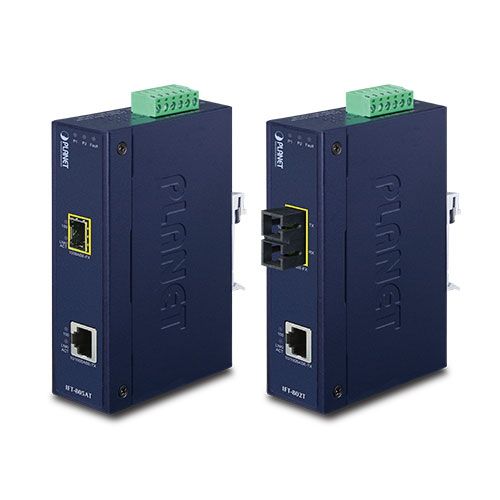

The PLANET IFT-80xT Series delivers reliable copper-to-fiber conversion over long distances, supporting up to 2 km (IFT-802T), 15 km (IFT-802TS15), and 20 km (IFT-805AT, depending on SFP). Housed in a rugged IP30 metal case and designed for -40 to 75 °C environments, it ensures stable operation in industrial, transportation, and harsh outdoor settings.
It features Auto-MDI/MDI-X, Store-and-Forward architecture, and dual-redundant 12–48 V DC power input with reverse polarity protection. The compact form factor and DIN-rail/wall-mount options make it ideal for industrial cabinets and network extensions for ISPs and enterprises.
Technical Specifications:
Interfaces:
- 1 x 10/100Base-T RJ45 (Auto-MDI/MDI-X)

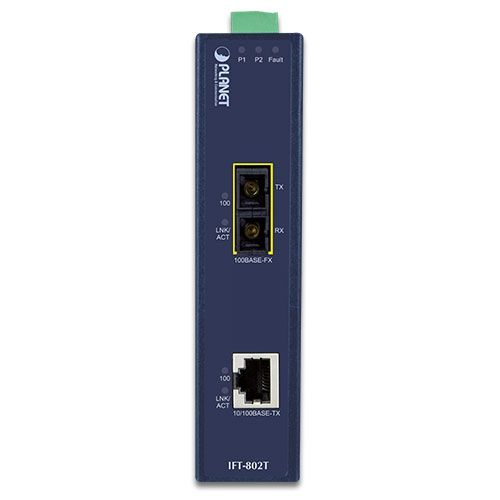

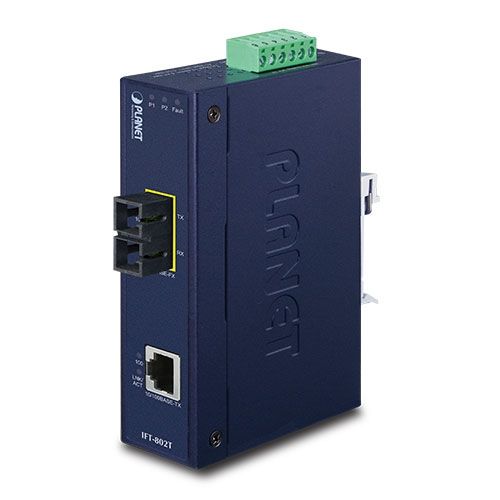

- IFT-802T: 1 x 100Base-FX SC (Multimode, 2 km)
- IFT-802TS15: 1 x 100Base-FX SC (Singlemode, 15 km)

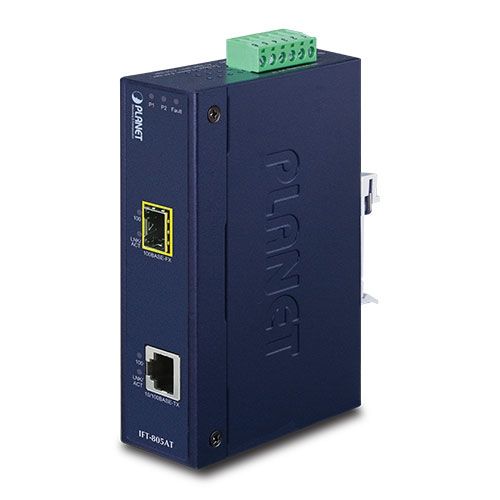

- IFT-805AT: 1 x SFP slot (range varies by module)
Performance:
- Switching: Store-and-Forward
- Frame Size: Up to 1522 bytes
- Full Duplex: IEEE 802.3x pause frames
- Half Duplex: Backpressure support
- MAC Table: Auto learning and aging
Power:

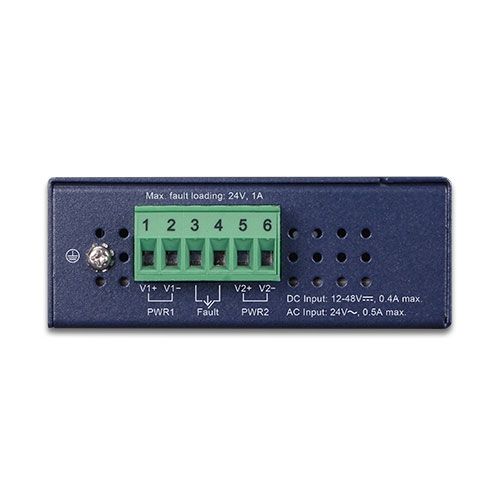

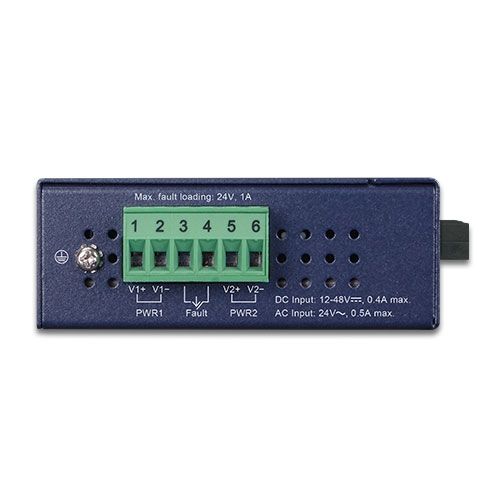

- Input: 12–48 V DC (dual), with reverse polarity protection
- AC Option: Compatible with 24 V AC
- Power Usage: Max. 3 W / 10 BTU
Mechanical & Mounting:
- IP30-rated metal housing
- Size: 32 × 87.8 × 135 mm
- Weight: 430 g
- Mount: DIN rail or wall-mount
Environmental & Protection:
- Operating Temp: -40 to 75 °C
- Humidity: 5–95% non-condensing
- ESD Protection: ±6 kV (Ethernet)
- Surge Protection: ±6 kV (power line)
- Alarm Relay: For link failure
- Shock & Vibration: IEC60068 compliant
LED Indicators:
- System: Power 1/2, Fault (Green)
- Copper: 10/100, LNK/ACT (Green)
- Fiber: 100, LNK/ACT (Green)
Standards & Certifications:
- IEEE 802.3, 802.3u, 802.3x
- FCC Class A, CE Class A
- UL certified (IFT-805AT)
