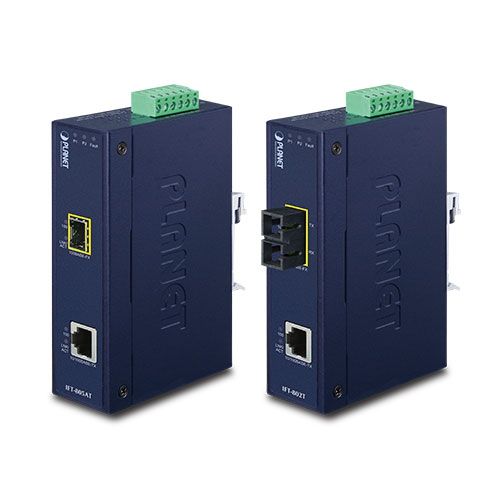

PLANET IFT-80xT Series – Industrial 10/100Base-TX to 100Base-FX Media Converter

Distance Extension with High Performance and Stable Network Communication

The PLANET IFT-80xT Series is an industrial-grade media converter line that bridges copper-based 10/100Base-TX connections with 100Base-FX fiber links. It is ideal for industrial environments, providing a fiber reach of up to 2 km (IFT-802T), 15 km (IFT-802TS15), or 20 km (IFT-805AT with SFP module), depending on the model and fiber type.

The compact IP30-rated metal case, wide temperature support (-40 to 75 °C), and dual 12–48 V DC power inputs ensure reliable performance even in harsh field conditions such as transportation control cabinets or factory automation. Designed for easy DIN-rail or wall mounting, the IFT-80xT series simplifies industrial networking with high availability and minimal space usage.

Technical Specifications:

Interfaces:

• 1 x 10/100Base-TX RJ-45 (Auto-MDI/MDI-X)

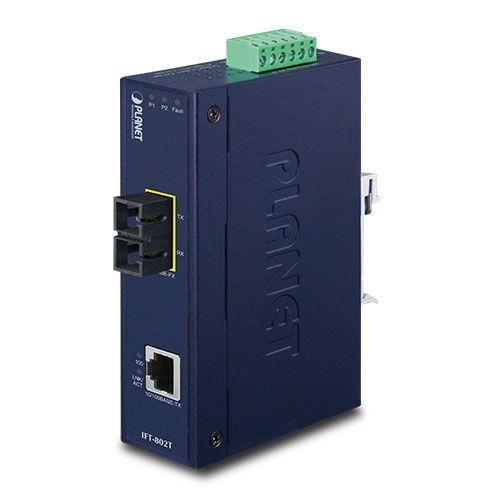

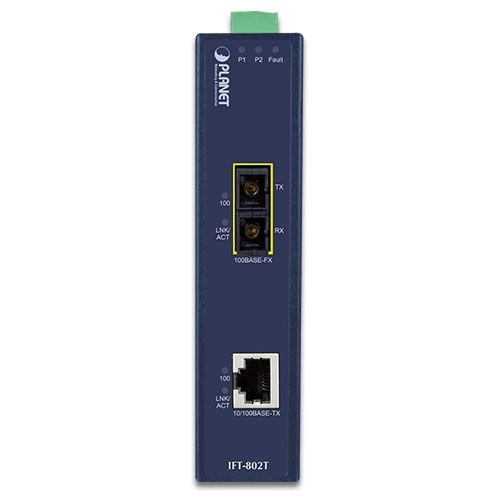

• 1 x 100Base-FX SC port (IFT-802T, IFT-802TS15) or

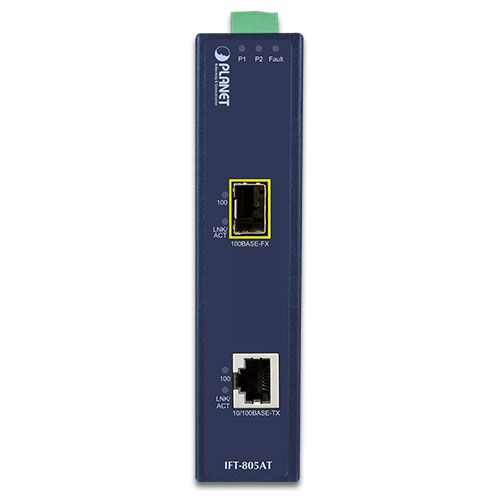

• 1 x 100Base-FX SFP slot (IFT-805AT)

Fiber Range:

• IFT-802T: Up to 2 km (multimode)
• IFT-802TS15: Up to 15 km (single-mode)
• IFT-805AT: Distance depends on installed SFP module (up to 20 km)

Enclosure & Installation:

• IP30-rated metal casing
• Dimensions: 32 × 87.8 × 135 mm
• Weight: 430 g
• Mounting: DIN-rail or wall-mount

Switching Capabilities:

• Store-and-Forward architecture
• Standards: IEEE 802.3, 802.3u, 802.3x
• Jumbo Frame support: Up to 1522 bytes
• MAC address learning and aging
• Flow control: IEEE 802.3x (full-duplex), Backpressure (half-duplex)

Power:

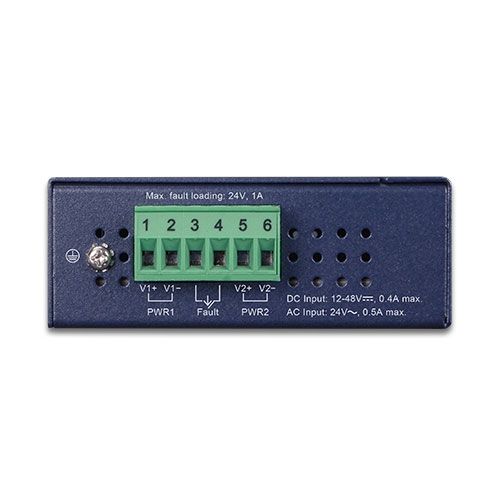

• Dual 12–48 V DC input with reverse polarity protection
• Optional: 24 V AC adapter support
• Max Power Consumption: 3 W

Protection & Environment:

• ESD Protection: ±6 kV (Ethernet)
• Surge Protection: ±6 kV (Power)
• Operating Temp: -40 to 75 °C
• Storage Temp: -40 to 85 °C
• Humidity: 5–95% non-condensing

Certifications:

• CE, FCC Class A, UL certified (IFT-805AT)
• Stability: IEC60068-2-32/27/6 (free fall, shock, vibration)

Applications:

• Industrial transport networks
• Traffic control systems, plant automation
• Long-distance fiber solutions (FTTH, FTTC, FTTB)
