Planet Industrial 8-Port Ring Switch IFGS-1222-TF

Brand-New Industrial Switch Solution for Practicability and High Performance

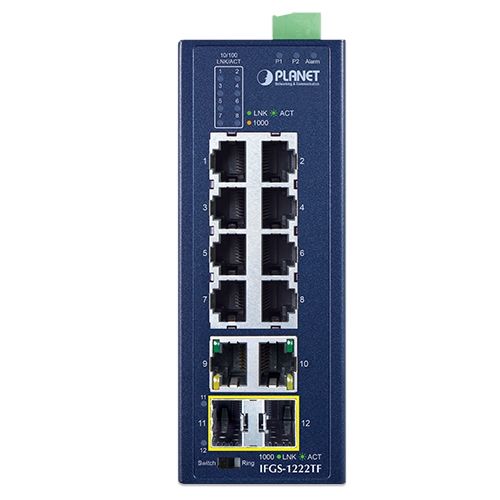

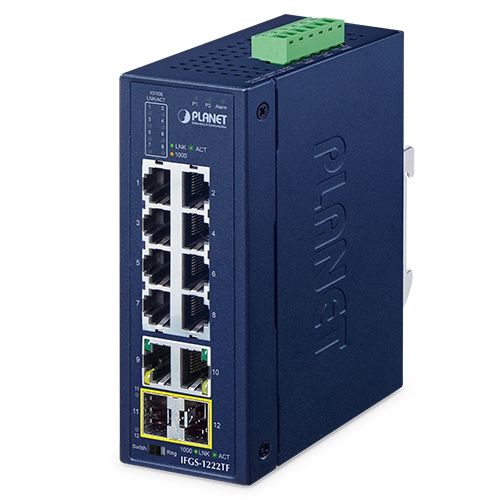

The PLANET IFGS-1222TF is a rugged, unmanaged industrial Ethernet switch offering eight 10/100BASE-TX RJ45 ports, two 10/100/1000BASE-T ports, and two 1000BASE-X SFP fiber ports. Housed in an IP30-rated metal case and capable of withstanding temperatures from -40 to 75°C, it is engineered for demanding industrial environments. Redundant power input options (9–48 V DC or 24 V AC) ensure uninterrupted operation.

Designed for the Industrial Internet of Things (IIoT), this Plug-and-Play switch simplifies deployment while enhancing network reliability with fast data transfer and power protection. The IFGS-1222TF supports PROFINET traffic prioritization, making it suitable for seamless integration into industrial automation networks.

With One-Key Ring redundancy, network recovery can occur within 1 ms in an 8-device ring topology. The device also supports long-distance fiber uplinks (up to 120 km via SFP), ideal for metro, enterprise, and FTTH/FTTC/FTTB deployments. Thanks to IEEE 802.3az support, power usage is minimized while maintaining high performance.

Technical Specifications:

Physical Ports:

• 8 x 10/100BASE-TX RJ45 (Port 1–8), Auto-MDI/MDI-X
• 2 x 10/100/1000BASE-T RJ45 (Port 9–10), Auto-MDI/MDI-X
• 2 x 1000BASE-X SFP interfaces (Port 11–12)

Ring Feature:

• One-Key Ring recovery: ≤1 ms with 8 devices

Switching Features:

• Switch Fabric: 9.6 Gbps
• Throughput: 7.14 Mpps @ 64 bytes
• Store-and-Forward architecture
• 4K MAC address table
• Jumbo Frame: 16K bytes
• Flow Control: IEEE 802.3x pause frame / Backpressure

Protocols and Standards:

• IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p
• PROFINET traffic pass-through with QoS
• CSMA/CD support

Power:

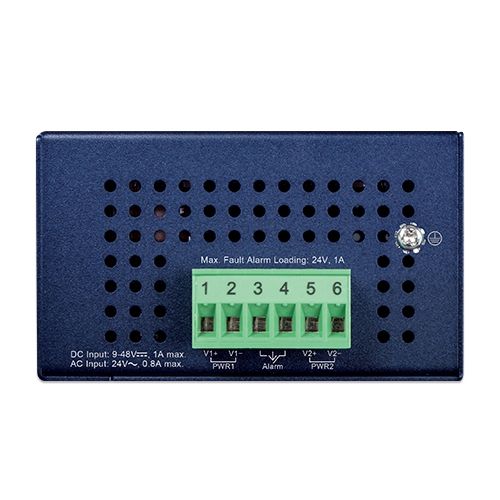

• Input Voltage: 9–48 V DC or 24 V AC
• Redundant power input with reverse polarity protection
• Power Consumption: up to 6 W (48V DC)

Mechanical:

• Dimensions: 50 × 86.4 × 135 mm
• Weight: 545 g
• Metal housing, IP30 rated
• Mounting: DIN-rail or wall-mount

Environment:

• Operating Temp: -40 to 75 °C
• Humidity: 5–95% (non-condensing)

Security & Protection:

• ESD: ±6 kV (air/contact)
• Surge Protection: ±6 kV DC
• Shock/vibration: IEC60068-compliant
• Alarm Relay: 1A @ 24V DC

LED Indicators:

• System: Green (Power 1/2), Red (Alarm)
• Ports: Activity/Link per port with status LEDs
