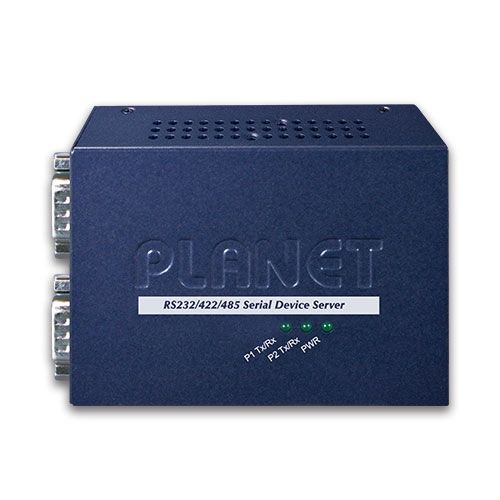

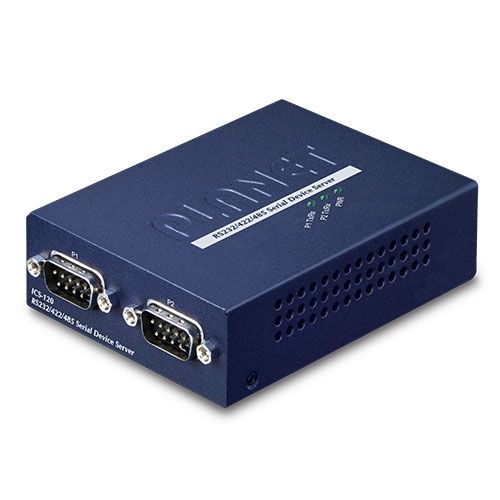

PLANET 2-Port RS232/422/485 to 1-Port FE Ethernet Converter

The PLANET ICS-120 is a cost-effective dual-port serial device server designed to convert RS232, RS422 or RS485 communication into IP-based Ethernet networking. With a built-in 10/100BASE-TX RJ45 port, it allows legacy serial devices to be quickly integrated into TCP/IP networks without modifying the existing hardware or software.

Designed for remote monitoring, industrial automation, and SCADA systems, the ICS-120 features robust protocol support and management options. With a temperature range of -10 to 60°C, metal enclosure, and optional DIN-rail mounting, it is ideal for harsh environments and industrial-grade applications.

Technical Specifications (EN):

Serial Interface:

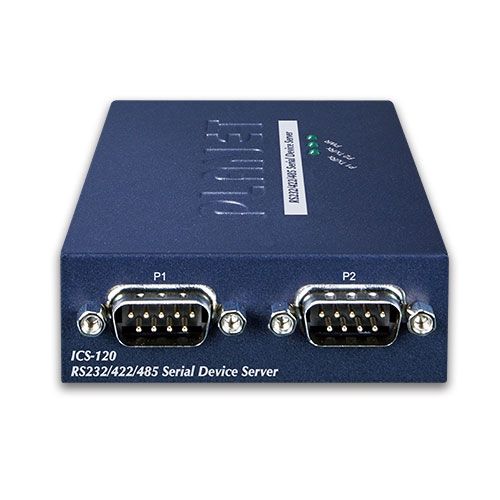

• 2 x DB9 male connectors (RS232, RS422, RS485 2-/4-wire)
• Baud Rate: 50 to 921600 bps
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Odd, Even, Space, Mark
• Flow Control: RTS/CTS, DTR/DSR (RS232), XON/XOFF
• Signal Pin Mapping: Refer to datasheet
• Modes: TCP Server/Client, UDP, VCOM, RFC2217, Telnet, Remote Pairing, Modbus Gateway

Ethernet Interface:

• 1 x 10/100BASE-TX RJ45 with auto MDI/MDI-X
• Max Distance: 100m
• ESD Protection: 6KV

Management & Security:

• Dual stack IPv4/IPv6 support
• Management Interfaces: Web, Telnet, Windows-based VCOM Utility
• Supported Protocols: HTTP, ICMP, SNMP v1/v2c, DHCP, Telnet, SNMP trap
• Event Alerts: Remote syslog, SNMP trap
• Time Synchronization: NTP support
• IP Access Control: Whitelist for secure access
• PLANET Smart Discovery utility & UNI-NMS supported

Housing & Installation:

• Dimensions: 94 × 70.3 × 26.2 mm
• Weight: 189g
• Enclosure: Metal
• Mounting: Wall-mount, optional DIN-rail
• Reset Button: <5s reboot, >5s factory reset
• Power Input: 5V DC, 2A
• Power Consumption: Max. 5.5 W
• Operating Temp: -10 to 60°C
• Storage Temp: -10 to 70°C
• Humidity: 5–95% (non-condensing)
