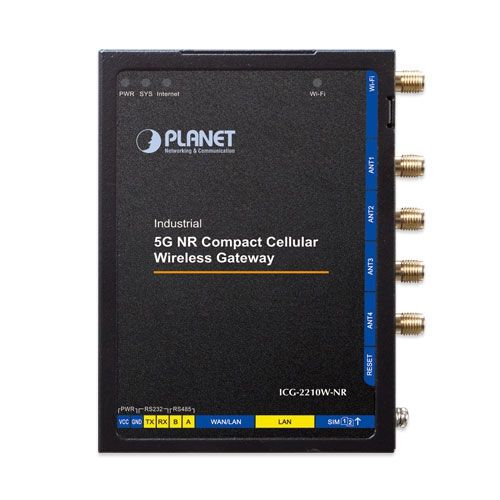

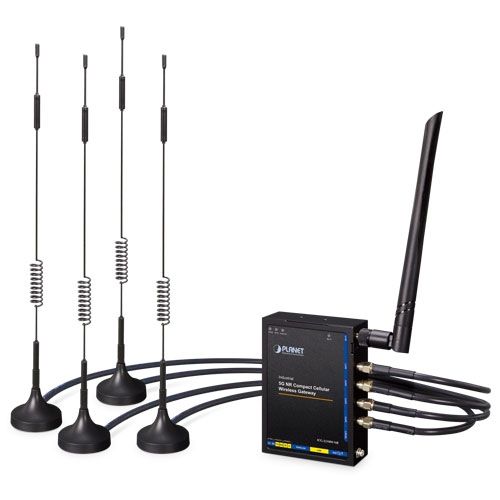

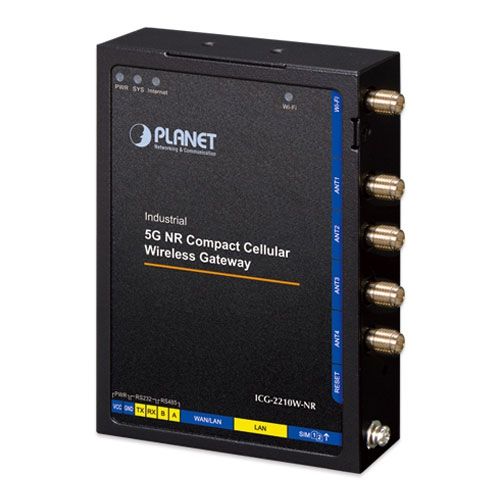

PLANET Industrial 5G NR Compact Cellular Wireless GW ICG-221
|
648,64 EUR |
|
|
( 771,88 EUR incl. VAT ) ≈ £559.13 | ≈ $735.56 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1196963 |
|---|---|
| Mfg Part No: | ICG-2210W-NR-EU |
| UPC/EAN: | 4711605287470 |
| Weight: | 0.12 kg |
Product information for Planet ICG-2210W-NR-EU:
Its dual SIM architecture and automatic failover between 5G NR and Gigabit WAN ensure non-stop service availability. With advanced VPN capabilities and Modbus support over serial interfaces, it provides secure, flexible deployment for critical M2M, SCADA, and remote monitoring applications.
Technical Specifications (EN):
Cellular & Wireless:
- 5G NR (Sub-6GHz) – NSA/SA
- LTE FDD/TDD, WCDMA, GSM fallback
- 2 micro SIM slots with redundancy & roaming
- Data rates: 5G up to 2.4Gbps DL / 500Mbps UL
- Wi-Fi 5 (802.11ac): Dual-band 2.4GHz/5GHz, total 600Mbps

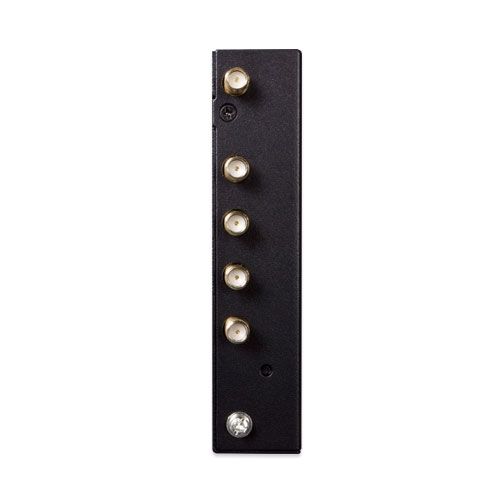

- Antennas: 4x 5G-NR SMA, 1x Wi-Fi (2dBi)

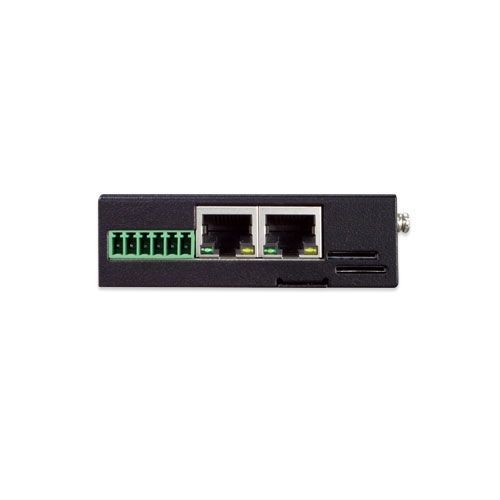

Wired & Serial Interfaces:
- 1x Gigabit WAN/LAN RJ45
- 1x Gigabit LAN RJ45
- 1x RS232 + 1x RS485 for Modbus integration
Security Features:
- VPN: IPSec, PPTP, L2TP, GRE, SSL (OpenVPN), 30 max tunnels
- Encryption: DES, 3DES, AES (128/192/256)
- Auth: MD5, SHA-1/256/384/512
- Firewall: SPI, DoS/DDoS defense, content filtering, NAT ALGs, DMZ, port forwarding
- MAC/IP filtering, WEP/WPA/WPA2/WPA3, 802.1X support
Management & Diagnostics:
- Interfaces: Web GUI (HTTPS), SNMP v1/v2c/v3, TLSv1.2, SSHv2
- PLANET Smart Discovery Utility, DDNS (PLANET, DynDNS, No-IP)
- Dashboard, auto-reboot, syslog, remote diagnostics
Networking Features:
- WAN: Dual-WAN load balancing and failover
- Protocols: TCP/IP, UDP, ARP, IPv4/IPv6
- Services: Static IP, PPPoE, DHCP (WAN), DHCP server (LAN), VLAN, QoS, IGMP, UPnP
Physical & Environmental:
- Case: IP30 metal enclosure
- Mounting: DIN rail or wall
- Dimensions: 76 × 23.5 × 106 mm
- Weight: 285g
- Power Input: 9–36V DC
- Power Usage: max. 5.72W
- Operating Temp: -40 to 75°C
- Humidity: 5–90% (non-condensing)
