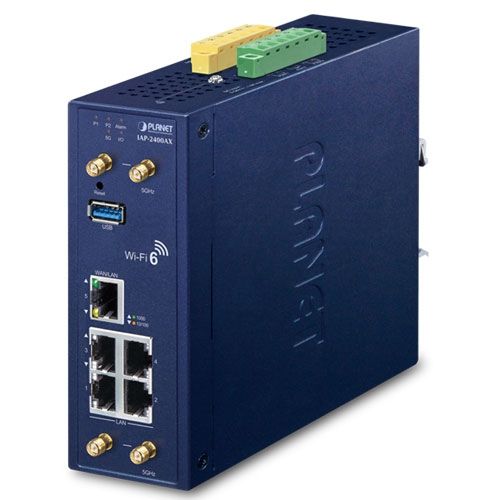

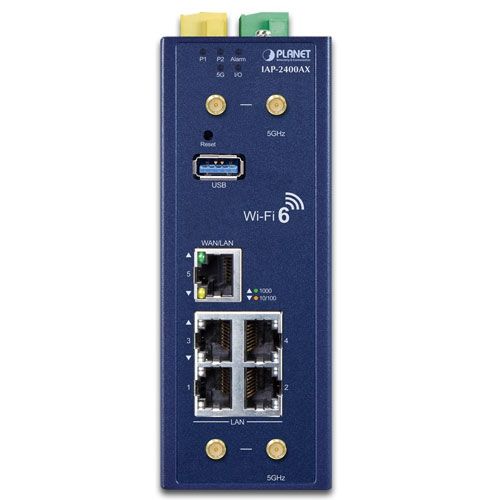

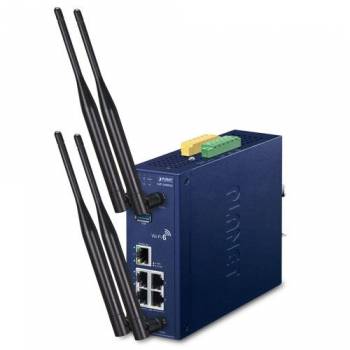

PLANET Industrial Dual Band 802.11ax 2400Mbps Wireless AP
|
500,71 EUR |
|
|
( 595,84 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2024805 |
|---|---|
| Mfg Part No: | IAP-2400AX |
| UPC/EAN: | 4711605286640 |
| Weight: | 0.12 kg |
Product information for Planet IAP-2400AX:
Its rugged IP30-rated metal housing, extended temperature operation (-40 to 75°C), and dual DC power input make it ideal for challenging industrial, warehouse, and high-traffic public settings. The IAP-2400AX supports multiple operating modes (AP, Gateway, Repeater) and enterprise-grade security (WPA3, RADIUS, ACLs), offering high availability, safety, and flexible deployment.
Technical Specifications (EN):
Wireless Performance:
- Wi-Fi Standard: IEEE 802.11a/an/ac/ax (Wi-Fi 6 – 5GHz only)
- Speed: Up to 2400 Mbps (4T4R)
- Technologies: MU-MIMO, OFDMA, Beamforming, BSS Coloring, Seamless Roaming (802.11k/v/r)
- Channels: DFS and non-DFS (36–165 depending on region)
- Channel Widths: 20/40/80/160 MHz
- Max Clients: 150 (100 recommended)
- Security: WPA3, WPA2/WPA, Enterprise/Personal, MAC ACL
Hardware Interfaces:
- 4x RJ45 Gigabit LAN, 1x RJ45 WAN/LAN (Ports 1–5)
- 4x RP-SMA Wi-Fi antenna connectors (external 4 dBi antennas)
- 1x USB 3.0 (for backup/firmware)
- 2x Digital Inputs (DI), 2x Digital Outputs (DO)
- Reset button (Reboot/Factory default)
- Power: Dual DC 9–54V with polarity protection
- Power Consumption: max. 10.8W
- Dimensions: 135 x 135 x 50 mm, Weight: 787g
- Mounting: DIN-rail or wall-mount
Network & Security:
- IP Modes: DHCP, Static IP, PPPoE, L2TP, PPTP
- VLAN: 802.1Q with SSID-to-VLAN mapping (up to 4 SSIDs)
- Firewall: SPI, DDoS protection, NAT ALGs
- Access Control: MAC/IP/Web filtering, DMZ, QoS
- VPN: IPSec VPN pass-through
- Captive Portal, RADIUS Server/Client
Management & Monitoring:
- Interfaces: Web GUI, SNMP v1/v2c/v3, TLSv1.1–v1.3
- Central Management: PLANET NMS, CloudViewer, Smart Discovery
- Tools: Wi-Fi Analyzer, Client Limit, Coverage Threshold, Auto-reboot
- Self-healing & Alarm: Digital Output triggers on fault, syslog alerts
Environmental:
- Operating Temp: -40 to 75°C
- Humidity: 5–90% non-condensing
- Enclosure: IP30 rated
