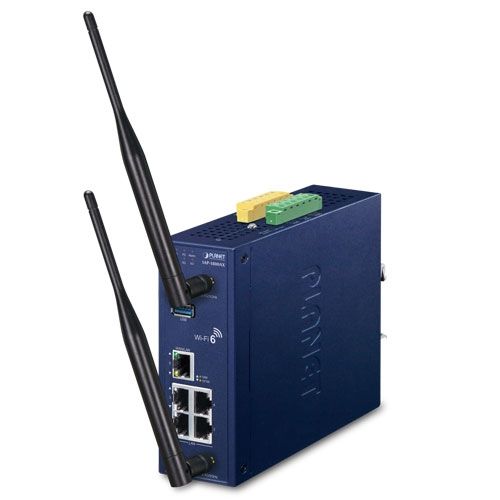

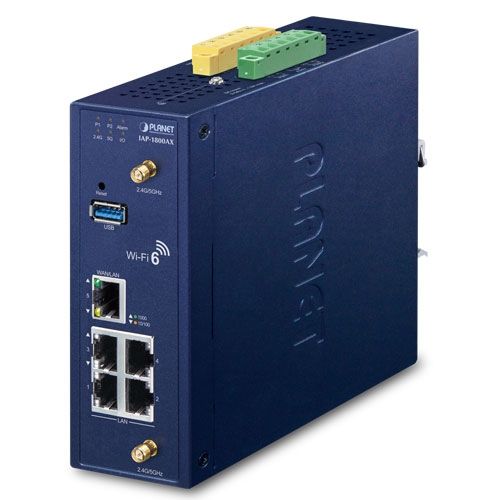

PLANET Industrial Dual Band 802.11ax 1800Mbps Wireless AP
|
461,49 EUR |
|
|
( 549,17 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1938395 |
|---|---|
| Mfg Part No: | IAP-1800AX |
| UPC/EAN: | 4711605286633 |
| Weight: | 1.05 kg |
Product information for Planet IAP-1800AX:
Key Features:
- Wi-Fi 6 support (802.11ax): 600 Mbps (2.4 GHz) + 1200 Mbps (5 GHz)
- 5 Gigabit Ethernet ports (4 LAN, 1 WAN/LAN)
- Hardened for extreme conditions: -40 to 75°C, IP30-rated enclosure
- Seamless Roaming, MU-MIMO, OFDMA, Beamforming, BSS Coloring
- Redundant 9–54V DC power input, DIN-rail or wall mountable
- WPA3 security for modern protection
Technical Specifications (EN):
Physical Interfaces:

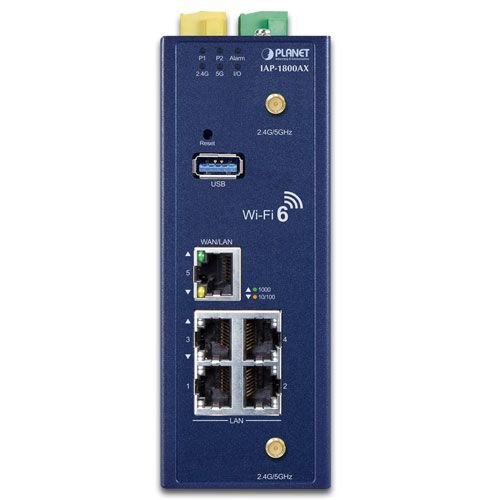

- 4x 10/100/1000BASE-T RJ45 LAN ports (Port 1–4)
- 1x 10/100/1000BASE-T RJ45 WAN/LAN port (Port 5)
- 2x RP-SMA connectors for 2.4GHz and 5GHz antennas
- 1x USB 3.0 port

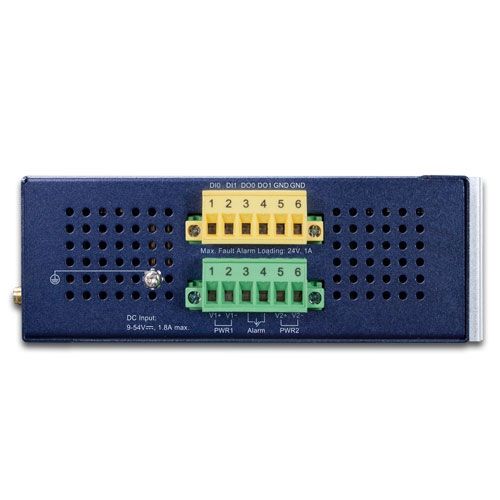

- 2x Digital Input (DI), 2x Digital Output (DO)
- 1x Reset button (Reboot < 5s, Factory Reset > 10s)
Wireless Features:
- Standards: IEEE 802.11a/b/g/n/ac/ax
- Speeds: Up to 600 Mbps (2.4GHz) + 1200 Mbps (5GHz)
- Technologies: MU-MIMO, OFDMA, Beamforming, BSS Coloring
- Antennas: 2x external dual-band 4 dBi RP-SMA
- Channels: 2.4GHz (1–13), 5GHz DFS and non-DFS as per regional regulation
- Channel Width: 20/40/80 MHz
Security:
- WPA3 Personal / WPA2/WPA3 Enterprise / MAC ACL
- Captive Portal, RADIUS Server/Client
- IEEE 802.1Q VLAN tagging, SSID-to-VLAN mapping
Management & Operation:
- Interfaces: Web GUI, SNMP v1/v2c/v3, PLANET Smart Discovery, NMS-500/1000V
- Secure Protocols: TLS v1.1, v1.2, v1.3
- Operating Modes: Access Point, Gateway, Repeater
- Features: Auto channel selection, Wi-Fi Analyzer, client limit, auto reboot scheduler
- Seamless Roaming support (802.11k/v/r)
Housing & Power:
- Dimensions: 135 x 135 x 50 mm; Weight: 773g
- Enclosure: Metal, IP30
- Mounting: DIN-rail, wall-mountable
- Power Input: DC 9–54V, redundant design
- Power Consumption: Max. 10.8W @ DC 54V
Environmental:
- Operating Temp: -40 to 75°C
- Storage Temp: -40 to 75°C
- Humidity: 5–90% non-condensing
