PLANET 4-Port IEEE 802.3at High Power over Ethernet

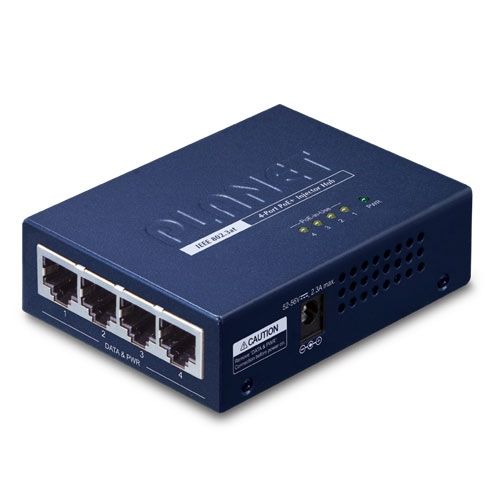

The PLANET HPOE-460 is a compact 4-port Gigabit Power over Ethernet Plus (PoE+) injector hub compliant with IEEE 802.3af/at standards. It delivers up to 30.8 watts per port over standard Cat.5e/6 cables, enabling simple network upgrades without replacing existing Ethernet switches. This plug-and-play PoE solution is ideal for powering PDs like PTZ/speed dome cameras, wireless APs, and VoIP phones.

Key Features:

• Supports IEEE 802.3af and IEEE 802.3at (PoE+)
• Up to 30.8W per port with a total PoE budget of 120W
• Mid-span injection design for network upgrade flexibility
• Compact, wall-mountable form factor
• Auto PD detection and port protection
• Easy plug-and-play installation

Technical Specifications (EN):

Interface:

• 4x RJ45 “Data Input” Ports (10/100/1000Mbps)
• 4x RJ45 “Data + Power Output” Ports (10/100/1000Mbps)

PoE Details:

• Standard: IEEE 802.3af / 802.3at (mid-span)
• Power Supply: DC 52V~56V
• Output: 15.4W (802.3af), 30.8W (802.3at) per port
• Power Pins: 4/5 (+), 7/8 (–)
• Total PoE Budget: 120 watts
• Max Distance: up to 100 meters

Hardware:

• Dimensions: 94 x 70.3 x 26.2 mm
• Weight: 208g

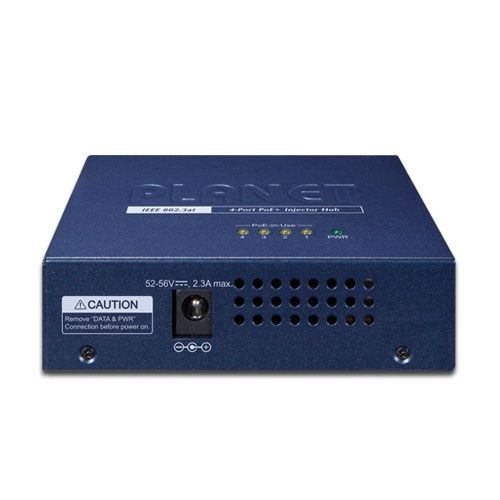

• LED Indicators: 1x Power (green), 4x PoE in-use (amber)
• Power Supply: 100–240V AC, 50/60Hz, 2A with 52V~56V DC output
• Housing: Desktop, wall-mountable

Compliance:

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• FCC Part 15 Class B, CE

Environment:

• Operating Temperature: 0 ~ 50 °C
• Storage Temperature: -10 ~ 70 °C
• Humidity: 5 ~ 95% (non-condensing)

Package Includes:

• PLANET HPOE-460 PoE+ Injector
• AC Power Adapter (100–240V)
• User Manual
