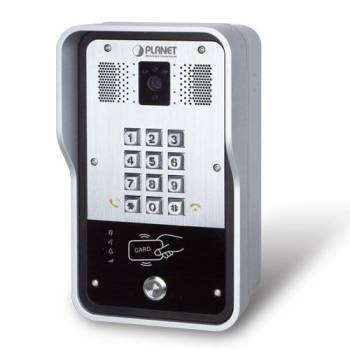

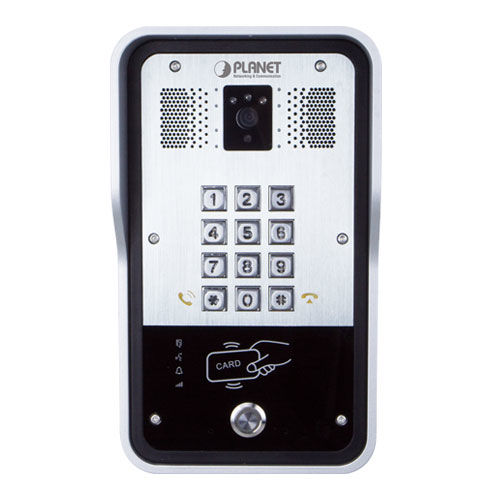

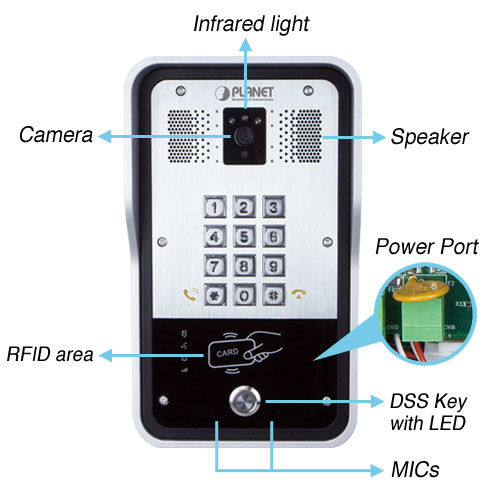

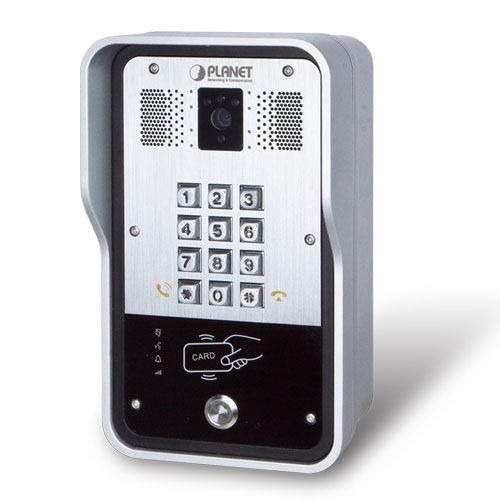

PLANET 720p SIP Multi-unit Apartment Vandalproof Door Phone
|
596,79 EUR |
|
|
( 710,18 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226022 |
|---|---|
| Mfg Part No: | HDP-5260PT |
| UPC/EAN: | 4711605281898 |
| Weight: | 1.86 kg |
Product information for Planet HDP-5260PT:
Key Features:
- HD 720p video streaming at 30 fps with H.264 encoding
- PoE support (IEEE 802.3af, Class 3)
- Rugged design: IP65 waterproof and IK10 vandal-proof rated
- Keyless entry via RFID (125kHz/13.56MHz) and keypad password
- Two-way HD audio with Acoustic Echo Cancellation (AEC)
- Fully interoperable with SIP 2.0 and IP PBX systems
Technical Specifications (EN):
Camera & Video:
- Image Sensor: CMOS, 1280 x 760 pixels
- Viewing Range: 5 meters
- Night Vision: 3 white LEDs (5m effective)
- Video Codecs: H.264 / H.263
- Image Formats: JPEG, PNG, BMP, GIF
- Video Formats: MP4, 3GP, FLV
- Frame Rate: 10–30 fps
Audio:
- Full duplex audio with AEC
- Wideband G.722 and other codecs (G.711, G.729, AMR etc.)
- DTMF support: In-band, RFC2833, SIP Info
- Omnidirectional mic with 5m pickup range
Access Control:
- Supports 5000 RFID/IC cards (ID EM4100, IC MIFARE ONE)
- Door unlock via RFID, keypad, or remote DTMF
- Relay Output: Door lock or alarm control
- DI Port: For door sensor, emergency button or motion sensor
Networking & Protocols:
- Network Standards: IEEE 802.3 / 802.3u / 802.3ab
- Protocols: SIP 2.0, RTP, SRTP, STUN, TR069, HTTPS
- Security: 802.1x, VLAN, QoS DSCP
- IP Config: Static / DHCP / PPPoE
User Interface & Control:
- Keypad: 13 keys (12 digits + 1 DSS)
- Intercom, call log, door log, auto-answer, hotlines
- Wall-mountable, vandal-proof structure
- PLANET Search Tool for device discovery on the network
Power & Housing:
- PoE: IEEE 802.3af Class 3
- Optional Power: 12V ±15% / 1A DC
- Dimensions: 223 x 130 x 74 mm
- Weight: 1.52 kg
- Operating Temp: -40 to 70 °C
- Certifications: CE, FCC
- Protection Class: IP65 (waterproof), IK10 (vandal-resistant)
Package Includes:
- HDP-5260PT Door Phone
- Mounting kit for wall installation
- Quick installation guide
Questions & answers
What is the delivery time of PLANET 720p SIP Multi-unit Apartment Vandalproof Door Phone?
The article PLANET 720p SIP Multi-unit Apartment Vandalproof Door Phone is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet HDP-5260PT to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET 720p SIP Multi-unit Apartment Vandalproof Door Phone always at the best possible price. We can give you a discount of 2% on PLANET 720p SIP Multi-unit Apartment Vandalproof Door Phone if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
