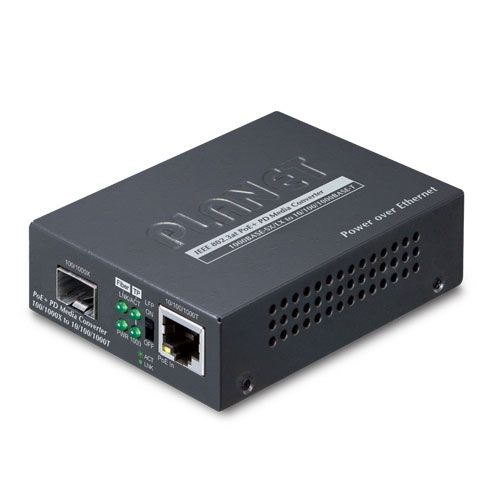

PLANET 1000Base-T PoE+ to 1000Base-FX SFP Media Converter

The PLANET GT-805A-PD is a next-generation compact and energy-efficient PoE-powered Gigabit media converter. Designed for fiber-to-copper media conversion, it enables 10/100/1000BASE-T to 100/1000BASE-X via SFP transceivers. Equipped with IEEE 802.3af/at/bt PoE PD capability, it's perfect for scenarios where devices need power and data via a single Ethernet line, especially in SMB, surveillance, and FTTx deployments.

Key Features:

• Media conversion between 10/100/1000BASE-T and 100/1000BASE-X (SFP)

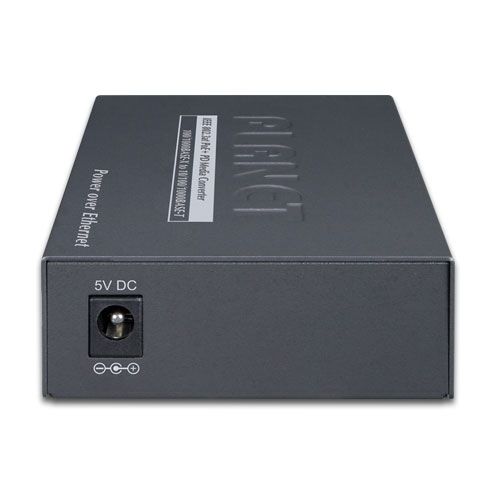

• Powered via IEEE 802.3af/at/bt PoE or optional 5V DC input
• Supports distances up to 120km depending on SFP type
• DIP switch for Link Fault Passthrough (LLCF/LLR)
• Plug-and-play installation
• Jumbo frame support up to 9K bytes
• Compatible with PLANET media chassis (MC-700/1500 series)

Technical Specifications (EN):

Ports:

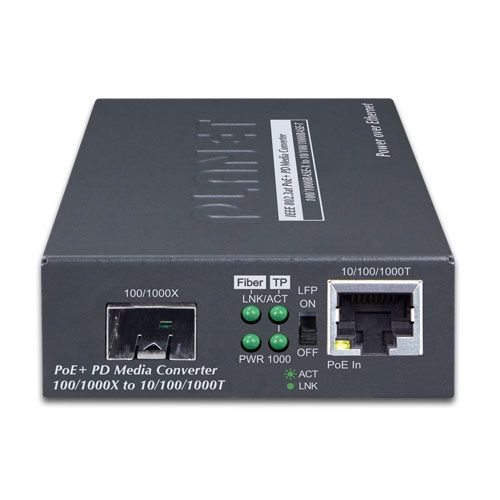

• 1 x 10/100/1000BASE-T RJ45 (Auto-MDI/MDI-X, PoE PD)
• 1 x 100/1000BASE-X SFP slot (LC connector)

Cabling & Distance:

• Copper: Cat. 3/5/5e/6 up to 100m
• Fiber:
• Multimode: 220/550m up to 2km
• Singlemode: 20/40/80/120km
• WDM (Simplex LC): up to 120km

PoE Support:

• Complies with IEEE 802.3af/at/bt (Type 3 & Type 4)
• Max power consumption: 3.2W @ 54V DC

Switching:

• Store-and-Forward architecture, non-blocking
• Throughput: 4.4Mpps
• Switch Fabric: 2 Gbps
• Jumbo frame support: 9K bytes

Management Features:

• DIP switch-controlled LFP (LLCF / LLR)
• IEEE 802.1Q VLAN passthrough support

Mechanical:

• Dimensions: 94 x 70.3 x 26.2 mm
• Weight: 186g
• Wall/DIN rail mountable
• LED indicators for Power, Link, PoE In

Environmental:

• Operating Temp: 0–50 °C
• Storage Temp: -10–70 °C
• Humidity: 5–95% (non-condensing)

Standards & Certifications:

• IEEE 802.3/3u/3ab/3z/3x/3az/3af/3at/3bt
• FCC Part 15 Class A, CE compliant

Package Includes:

• GT-805A-PD Media Converter
• Wall mount accessories
• Quick installation guide
