PLANET 10/100/1000Base-T to miniGBIC Converter

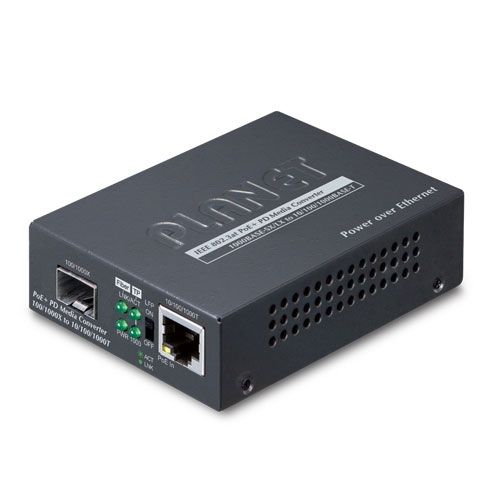

The PLANET GT-805A-PD is a compact and efficient Gigabit media converter powered via PoE according to IEEE 802.3af/at/bt. It enables seamless conversion between 10/100/1000BASE-T and 100/1000BASE-X (SFP) networks, perfectly suited for fiber integration in copper-based environments. With support for PoE in-line powering and a DIP-switch-controlled Link Fault Passthrough (LLCF/LLR) mechanism, it offers robust functionality and flexibility for surveillance, industrial, and SMB applications.

Key Features:

• Supports PoE PD operation via IEEE 802.3af/at/bt (48–54V DC)

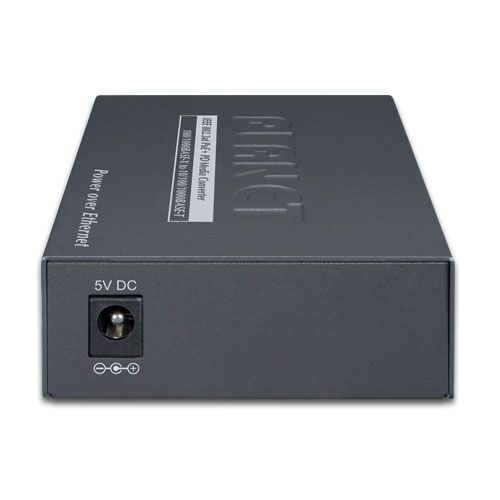

• Optional 5V DC input for non-PoE environments
• SFP slot for 100/1000BASE-X modules (Multimode/Singlemode)
• Cost-effective PoE media conversion without need for external power
• DIP switch for LFP (LLCF/LLR) fault passthrough configuration
• Jumbo frame support up to 9K Bytes
• Compatible with PLANET media converter chassis (MC-700, MC-1500 series)
• Compact design for wall or DIN rail mount

Technical Specifications (EN):

Interfaces:

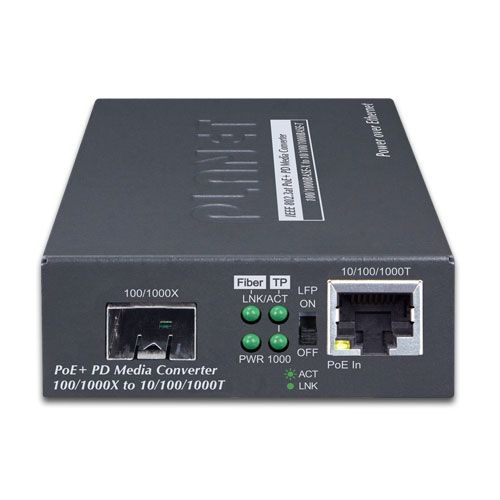

• 1 x 10/100/1000BASE-T RJ45 port (Auto-MDI/MDI-X, PoE PD capable)
• 1 x 100/1000BASE-X SFP slot (LC, module-dependent)

Cable Types:

• Copper: Cat. 3/5/5e/6 up to 100m
• Fiber (depending on SFP):
• 1000BASE-SX: Multimode up to 2 km
• 1000BASE-LX: Singlemode up to 120 km
• 100BASE-FX: Multimode up to 2 km, Singlemode up to 120 km

PoE:

• IEEE 802.3af/at/bt compliant (Type 3 and Type 4 supported)
• Max. power consumption: 3.2 W

Switching & Performance:

• Store-and-Forward architecture
• Throughput: 4.4 Mpps
• Switching fabric: 2 Gbps
• Jumbo Frames: Up to 9K Bytes
• Link Fault Passthrough (LLCF / LLR) configurable via DIP switch
• IEEE 802.3x full-duplex, backpressure in half-duplex mode

Physical & Installation:

• Dimensions: 94 x 70.3 x 26.2 mm
• Weight: 186 g
• Wall or DIN-rail mountable
• Compatible with PLANET converter chassis

Environmental:

• Operating Temp: 0–50 °C; Storage Temp: -10–70 °C
• Humidity: 5–95% (non-condensing)

Certifications & Compliance:

• IEEE 802.3/3u/3ab/3z, 802.3x, 802.3az, 802.3af/at/bt
• FCC Part 15 Class A, CE approved

Package Contents:

• GT-805A-PD Media Converter
• Wall mounting kit
• Quick install guide
