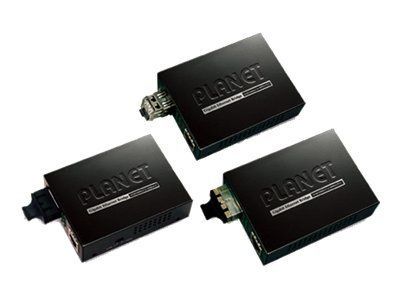

PLANET 10/100/1000Base-T to 1000Base-LX Gigabit Converter

This compact rack module converter is the ideal solution for reliably converting fiber optic (LWL) connections to Ethernet interfaces. With its plug-and-play functionality and stand-alone design, it integrates quickly and easily into existing network infrastructures – with no need for additional configuration or centralized control systems.

Supporting data rates of up to 1 Gbps, the converter is perfect for applications requiring high-speed and low-interference communication – such as industrial automation, IP-based building systems, or secure corporate networks. It supports both half-duplex and full-duplex operation, while the integrated MDI port detection automatically identifies the correct port configuration, simplifying installation.

The unit is designed for 3U rack installations and comes in a compact size of 97 x 69 x 26 mm. The RJ-45 interface ensures quick and easy connectivity to standard Ethernet devices. Weighing just 0.535 kg and with a girth of 28.7 cm, the converter is also easy to transport and install.

Technical Data:

Form Factor:

• Rack Module

Product Features:

• Plug and Play
• Stand-Alone

Type:

• Converter

Technical Specifications:

• Transmission Rate: 1 Gbps
• Medium: Fiber Optic (LWL)
• Network/Telephony Additional Functions: MDI Port Detection
• Rack Height Units: 3U
• Transmission Mode: Full-Duplex; Half-Duplex

Interfaces/Connectivity:

• Network Ports: RJ-45

Network:

• Network Standards: Ethernet
• Integrated Network Functions: Converter

Logistical Data:

• Gross Weight: 0.535 kg
• Gross Dimensions: 97 mm x 69 mm x 26 mm
• Girth: 28.7 cm
