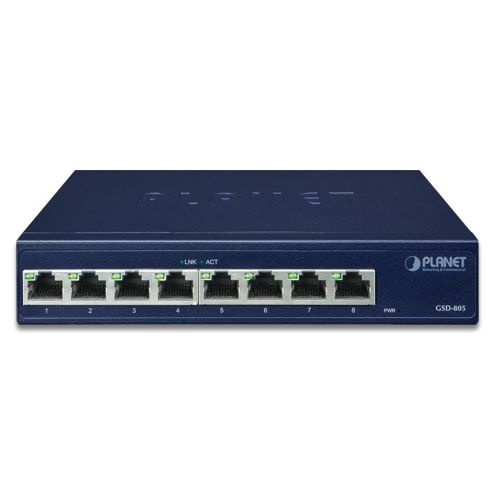

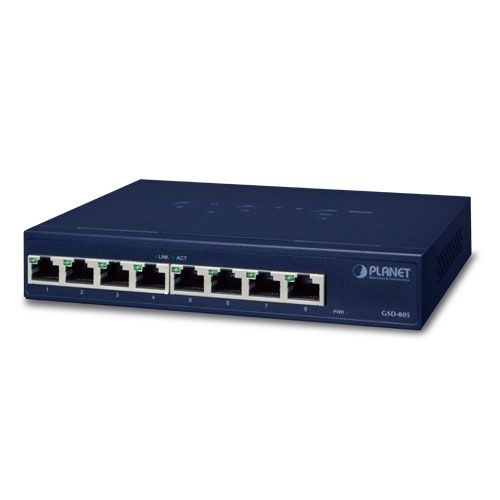

PLANET 8-Port 10/100/1000Mbps Gigabit Ethernet Switch
|
58,47 EUR |
|
|
( 69,58 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226757 |
|---|---|
| Mfg Part No: | GSD-805 |
| UPC/EAN: | 4711213684869 |
| Weight: | 0.77 kg |
Product information for Planet GSD-805:
Highlights:
- 8 Gigabit RJ45 ports with Auto-MDI/MDI-X
- 16Gbps switch fabric for high throughput
- VLAN isolation via DIP switch (ports 1–7 separated)
- Green technologies: Hibernation Link Down & cable length detection
- Jumbo frame support up to 9216 bytes
Energy-saving Technologies:
- *Hibernation Link Down*: Automatically reduces power on inactive ports
- *Smart Cable-Length Detection*: Reduces power on cables shorter than 20 meters
Security and Performance:
- VLAN isolation prevents broadcast storms between ports
- ESD Protection: 4KV contact discharge, 6KV air discharge
- Store-and-Forward architecture for lossless transmission
- 8K MAC address table
Technical Details:
Network Ports:
- 8 x 10/100/1000BASE-T RJ45 (Auto MDI/MDI-X)
Switching Performance:
- Switch Fabric: 16Gbps
- Throughput: 11.9 Mpps @ 64 Bytes
- MAC Table: 8K entries
- Jumbo Frames: up to 9216 bytes
- Packet Buffer: 1 Mbit
- Architecture: Store-and-Forward
Power & Build:
- Power Supply: Internal 100–240V AC, 50/60Hz
- Power Consumption: Max. 2.4W / 8.1 BTU
- Enclosure: Metal
- Dimensions: 168 x 94.1 x 32 mm
- Weight: 428 g
- Fanless for silent operation
Protection & Durability:
- ESD: 4KV (contact), 6KV (air)
- EFT Protection: 2KV (Ethernet), 4KV (Power)
- Surge: ±1.5KV differential, ±2KV common mode
LED Indicators:
- System: Power (Green)
- Ports: LNK/ACT (Green)
Compliance & Standards:
- IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
- FCC Class B, CE
Environmental Specifications:
- Operating Temperature: 0–50 °C
- Storage Temperature: -10–70 °C
- Humidity: 5–95% (non-condensing)
