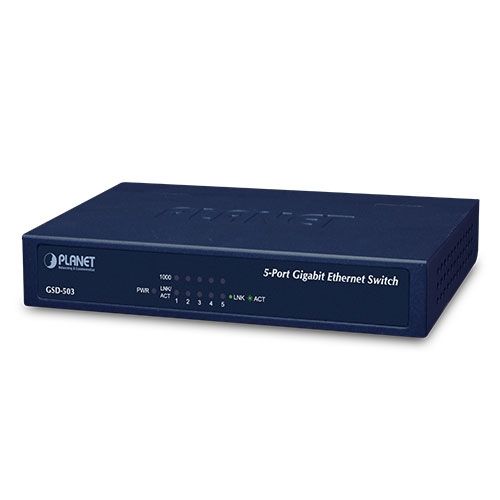

PLANET 5-Port 10/100/1000Mbps Gigabit Ethernet Switch

The PLANET GSD-503 is a compact 5-Port Gigabit Ethernet Switch designed for high-performance networking with a focus on energy savings. Featuring two advanced green technologies, it reduces power consumption by up to 40% while delivering wire-speed performance. The switch is ideal for home users, small offices, and workgroups needing reliable Gigabit connectivity. With a switching fabric of 10Gbps, support for 9KB jumbo frames, and a 2K MAC address table, it ensures smooth data transmission and efficient network performance.

Technical Specifications:

Network Ports:

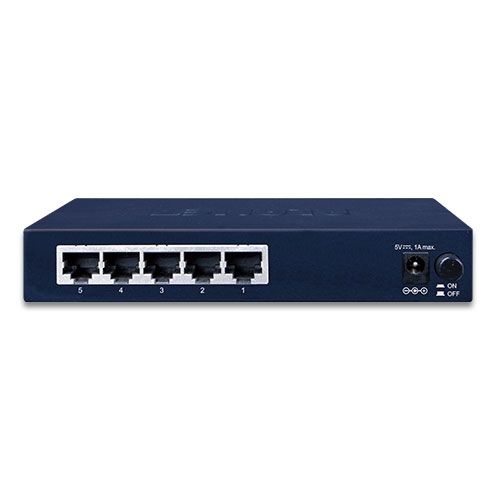

• 5 x 10/100/1000BASE-T RJ45 ports (Auto-Negotiation, Auto-MDI/MDI-X)
• Complies with IEEE 802.3, 802.3u, 802.3ab standards

Switching Performance:

• Switching Fabric: 10Gbps (non-blocking)
• Throughput: 7.44Mpps
• MAC Address Table: 2K entries
• Jumbo Frame Support: Up to 9KB
• Switching Mode: Store-and-Forward
• Flow Control: IEEE 802.3x for full duplex, back pressure for half duplex

Green Technologies:

• Hibernation Link Down: Reduces power when ports are inactive
• Intelligent Power Allocation: Optimizes power based on cable length (< 20m)
• Supports IEEE 802.3az Energy Efficient Ethernet (EEE)

Hardware Features:

• Compact metal housing, desktop size, wall-mountable
• Dimensions: 155 x 86 x 26 mm
• Weight: 317 g

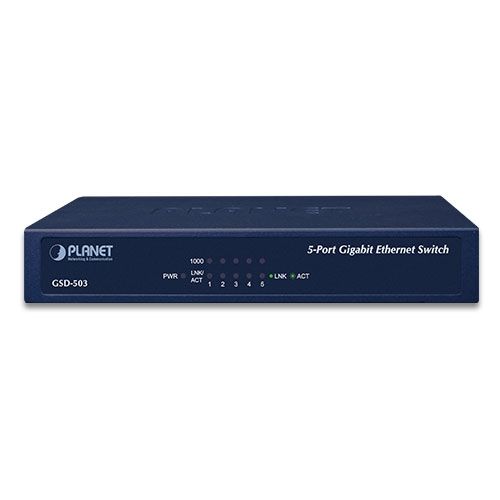

• LED Indicators: Power, Link/Activity, 1000Mbps per port
• External Power Adapter: 5V DC, 1A
• Power Consumption: Max. 3.3 Watts / 11 BTU
• Power switch for energy saving

Environmental Conditions:

• Operating Temperature: 0 ~ 50 °C
• Storage Temperature: -10 ~ 70 °C
• Humidity: 5% to 95% (non-condensing)

Certifications:

• FCC Part 15 Class B, CE
