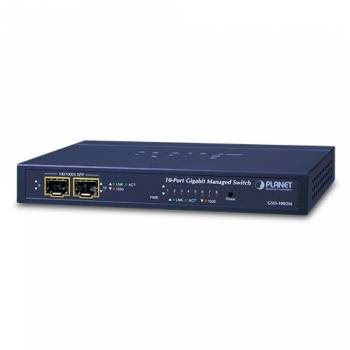

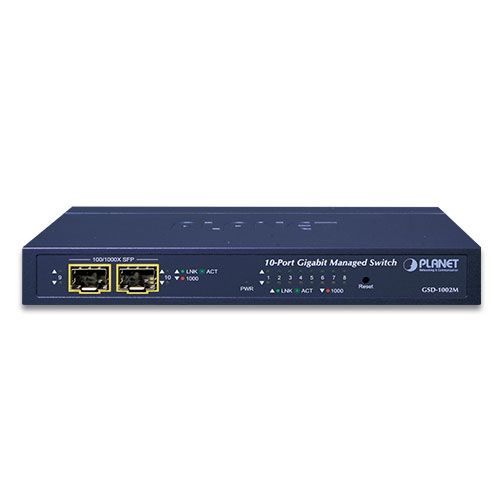

PLANET 8-Port GE + 2-Port SFP Managed Desktop Switch

The PLANET GSD-1002M is a robust 10-port Layer 2 managed switch featuring 8 Gigabit RJ45 ports and 2 dual-speed 100/1000BASE-X SFP slots. Designed for Fiber-to-the-Desktop (FTTD) deployments, this compact, fanless switch delivers high reliability, advanced Layer 2 features, and comprehensive IPv6/IPv4 security. With dual power input (PoE In + DC) and ERPS ring support, it’s ideal for SOHO, SMB, and edge network environments requiring long-distance fiber transmission and protected network access.

Technical Specifications:

Physical Ports:

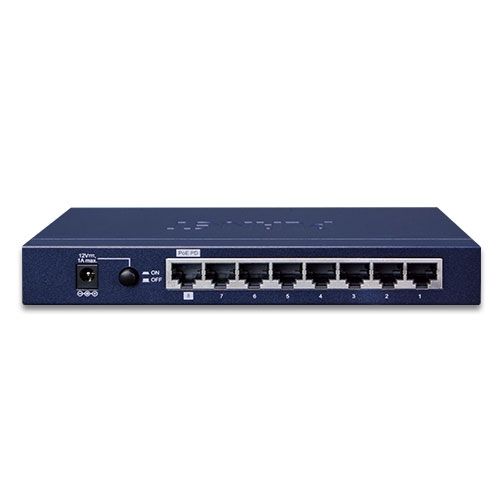

• 8 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 8 supports PoE-In)
• 2 x 100/1000BASE-X SFP fiber slots with DDM support

Power Supply:

• IEEE 802.3af/at PoE In (48–56V DC)
• 12V DC adapter input
• Redundant power switching for fail-safe operation

Switching Performance:

• Switching Capacity: 20Gbps
• Throughput: 14.8Mpps at 64-byte packets
• Jumbo Frame: 10KB
• MAC Table: 8K entries
• Shared Buffer: 4.1Mb
• Fanless for silent operation

Layer 2 Features:

• VLAN: IEEE 802.1Q, Q-in-Q, Voice VLAN, Management VLAN, Private VLAN, GVRP
• Spanning Tree: STP, RSTP, MSTP with BPDU guard/filtering
• Link Aggregation: 802.3ad LACP & static, up to 8 groups of 8 ports
• Port mirroring, Loop protection, LLDP/LLDP-MED
• ERPS (G.8032) Ethernet Ring Protection (<10ms recovery)

Quality of Service (QoS):

• 8 priority queues per port
• Classification: Port, 802.1p, VLAN tag, DSCP/ToS
• Scheduling: Strict priority & WRR
• Broadcast/multicast/storm control
• Per-port ingress/egress bandwidth control

Multicast:

• IGMP Snooping v2/v3, MLD v1/v2 Snooping
• Querier mode, port filtering
• Up to 256 IGMP/MLD groups

Security:

• IEEE 802.1X port/MAC-based access control
• RADIUS and TACACS+ authentication
• ACLs: IPv4/IPv6, MAC-based
• Port security, static MAC filtering
• DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
• DoS attack prevention, protected ports

Management:

• IPv4 and IPv6 dual-stack
• Interfaces: Web GUI, Telnet, Console CLI
• SNMP v1/v2c/v3, RMON (1, 2, 3, 9), Syslog
• Management via HTTP/TFTP, dual firmware image support
• Diagnostics: cable testing, ICMP ping, PLANET Discovery, CloudViewer

Mechanical & Environment:

• Dimensions: 191 x 86 x 26 mm
• Weight: 396g
• Metal housing
• Operating Temp: 0–50 °C, Humidity: 5–95%
• ESD Protection: 6KV DC

Certifications:

• FCC Class B, CE
• Compliant with IEEE 802.3af/at, 802.1D/w/s/x/Q/p, LLDP, IGMP/MLD, G.8032 ERPS
