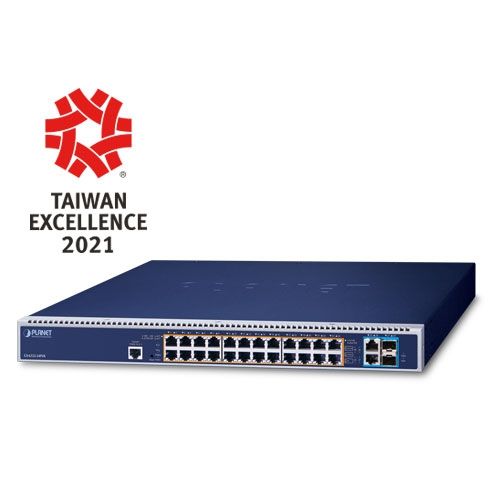

PLANET L3 24-Port GE 802.3bt PoE GS-6322-24P4X

The PLANET GS-6322-24P4X is a powerful 24-port 802.3bt PoE++ switch engineered for high-power network deployments. With support for up to 95 watts per port, dual modular power slots, and advanced Layer 3 static and dynamic routing (OSPFv2), it is ideal for enterprises, hotels, public infrastructure, and surveillance systems. The switch also includes ONVIF integration, PoE scheduling, extended PoE range, and extensive security controls, making it an intelligent solution for future-proofing high-bandwidth, power-intensive network environments.

Technical Specifications:

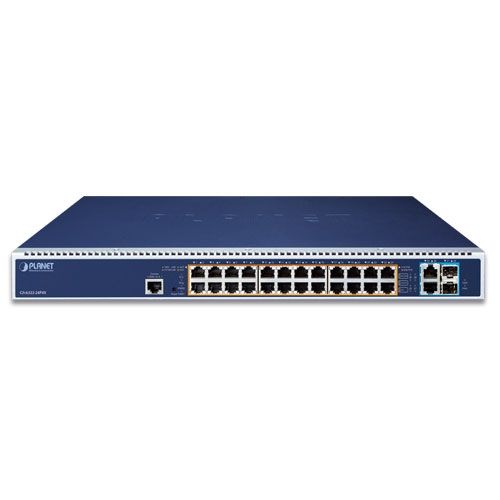

Physical Ports:

• 24 x 10/100/1000BASE-T RJ45 with 802.3bt PoE++ (up to 95W)
• 2 x 10GBASE-T RJ45 (10G/5G/2.5G/1G/100M)
• 2 x 10GBASE-SR/LR SFP+ slots (1G/2.5G/10G support)
• 1 x RJ45 console port

Power Supply:

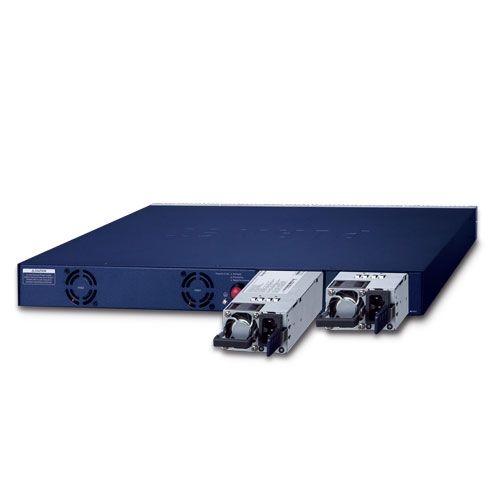

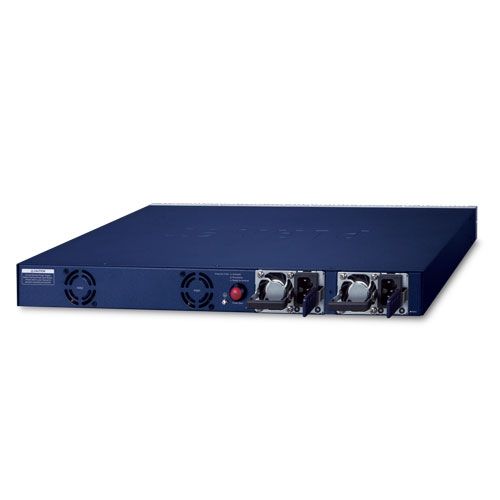

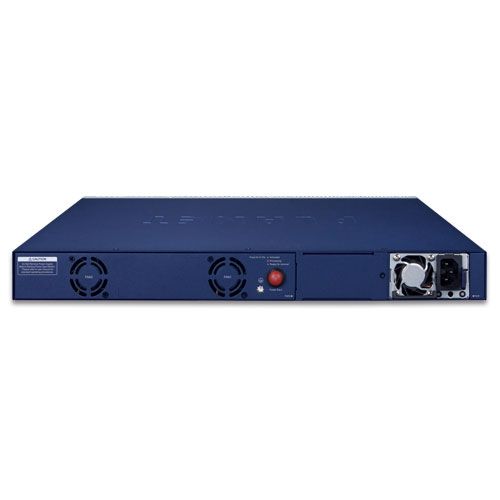

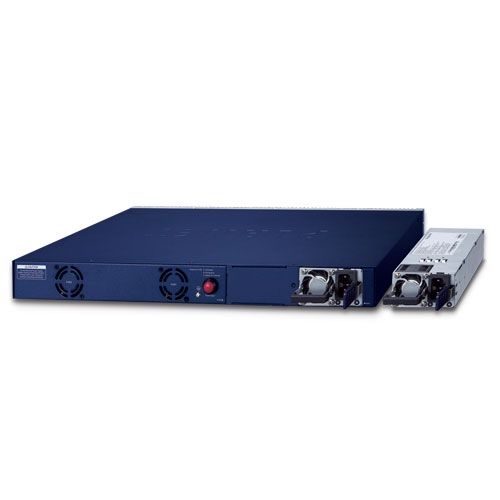

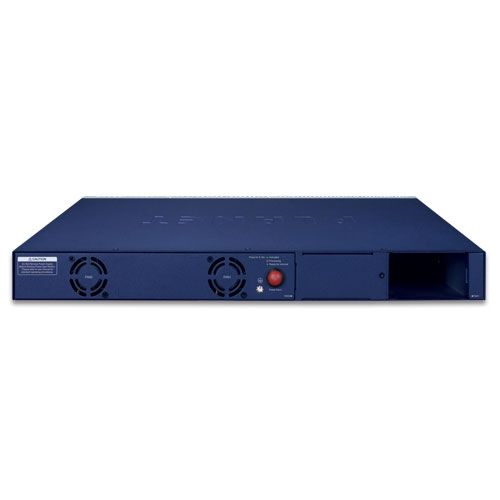

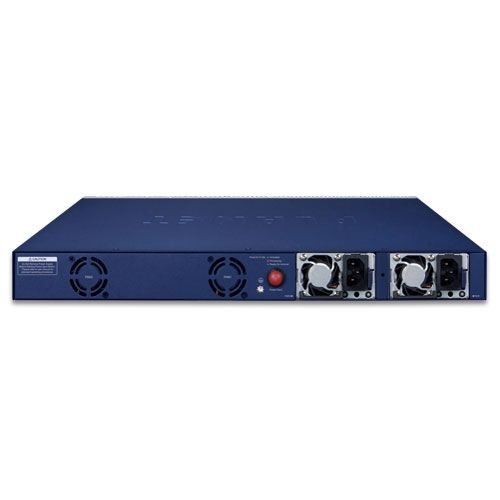

• Supports dual hot-swappable 920W/1200W/2000W modules
• Modes: RPS (Redundant 1+1) or EPS (Extended 2+0)
• Total PoE budget: up to 2280W
• Smart fan cooling and thermal protection

PoE Management:

• Power output modes: UPOE, 802.3bt, Force (60W), End-/Mid-span (36W)
• PD Alive Check, Scheduled PoE Recycle, PoE Extend up to 200m
• Power threshold monitoring, PoE usage display

Layer 3 Routing:

• IPv4/IPv6 Static and OSPFv2 routing
• Supports up to 128 VLAN interfaces and routing entries

Layer 2 Features:

• VLAN: 802.1Q tagging, Q-in-Q, MAC/Protocol-based, Voice VLAN, PVE, GVRP
• STP/RSTP/MSTP with BPDU Guard
• Link Aggregation: LACP/Static, 3 groups of 4 ports each (up to 80Gbps)
• IGMP/MLD Snooping, MVR, ERPS ring (recovery <10ms)

Quality of Service (QoS):

• 8 priority queues per port
• Classification: Port, VLAN, 802.1p, DSCP, TCP/UDP ports
• Ingress/Egress bandwidth control, DSCP remarking

Security:

• 802.1X port/MAC-based authentication, RADIUS, TACACS+
• ACLs: IP-/MAC-based (up to 256 entries)
• DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
• Guest VLAN, Port isolation, MAC/IP binding

Management:

• Interfaces: Web GUI, CLI (Telnet/Console), SNMP v1/v2c/v3, SSHv2, TLS, SSL
• IPv4/IPv6 dual stack support, DHCP, NTP, Dual image support
• Tools: PLANET Smart Discovery, ONVIF device detection, Cable diagnostics, SFP-DDM
• Syslog, SMTP event alert, secure firmware updates

Mechanical and Environmental:

• Dimensions: 444 x 301 x 44 mm (1U)
• Weight: 5.48 kg
• Fans: 2 Smart Fans
• Operating Temp: 0–50°C, Humidity: 5–95%
• ESD Protection: 6KV DC

Certifications:

• FCC Part 15 Class A, CE
• Compliant with IEEE 802.3af/at/bt, 802.1Q/p/s/x/ad/w/z/u, LLDP, OSPF, IGMP, MLD, G.8032 ERPS, Y.1731 CFM
