PLANET L3 46-Port GE SFP + 2Port GE TP/SFP + 4Port 10G SFP+

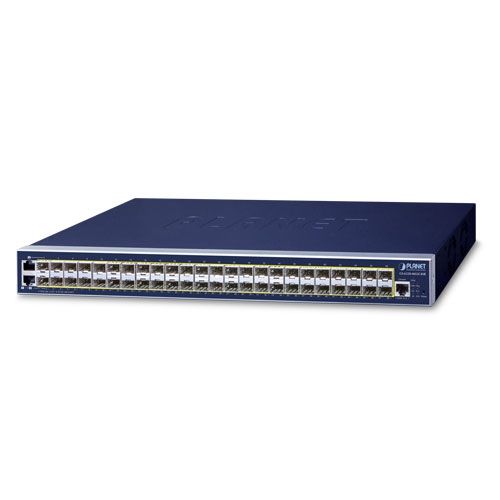

The PLANET GS-6320-46S2C4XR is a robust Layer 3 managed fiber switch designed for large-scale enterprise backbones, ISPs, and industrial networks. Featuring 48 100/1000BASE-X SFP ports, 2 shared RJ45 copper ports, and 4 10G SFP+ uplinks, it delivers powerful switching capabilities with a 176Gbps non-blocking architecture. Designed for high-availability networks and intensive data environments, it offers comprehensive L2/L3 security, routing, and management.

Technical Specifications:

Physical Ports:

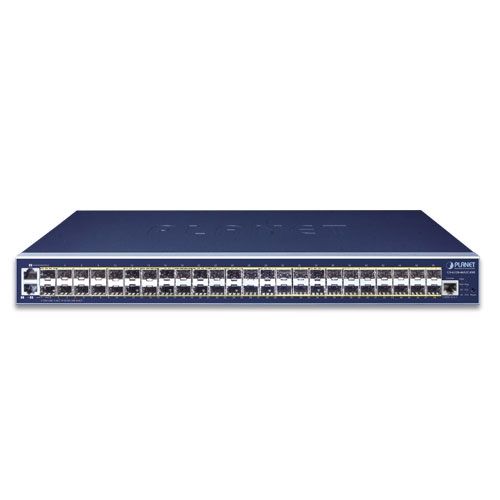

• 48 x 100/1000BASE-X SFP
• 2 x 10/100/1000BASE-T RJ45 (shared)

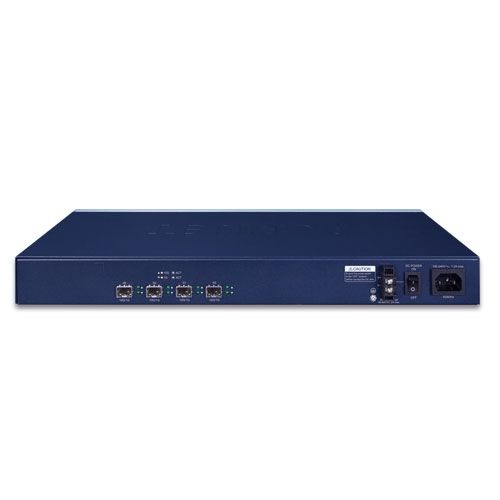

• 4 x 10GBASE-SR/LR SFP+ (backward-compatible with 1G SFPs)
• 1 x RJ45 console port

Switching:

• Switching Fabric: 176Gbps
• Throughput: 130Mpps @ 64Bytes
• Architecture: Store-and-Forward
• MAC Address Table: 16K
• Shared Buffer: 32Mbits
• Jumbo Frame: 10KB

Layer 3 Routing:

• Protocols: Static, OSPFv2 (IPv4), IPv6 routing
• Max VLAN interfaces: 128
• Max Routing Entries: 128

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, MAC/IP/Protocol-based, Voice VLAN, Private VLAN Edge, GVRP
• STP/RSTP/MSTP with BPDU Guard
• Link Aggregation: LACP/static; up to 26 groups, 16 ports per group
• Port Mirroring: Many-to-1, TX/RX
• IGMP/MLD Snooping (v1/v2/v3), Querier Mode, MVR
• Cisco UDLD support

Quality of Service (QoS):

• 8 queues per port
• Classification: Port, VLAN tag, 802.1p, DSCP, TCP/UDP
• Scheduling: Strict Priority / WRR
• DSCP remarking, per port Ingress/Egress shaping

Security:

• Authentication: 802.1X (port-/MAC-based), RADIUS, TACACS+, Guest VLAN
• ACL: MAC/IP-based (up to 256 entries)
• DHCP Snooping, ARP Inspection, IP Source Guard
• Port Isolation, MAC/IP Binding

Management:

• Interfaces: Web, CLI (Telnet/Console), SNMP v1/v2c/v3, SSHv2, TLS
• IPv4/IPv6 address management, DHCP, BOOTP, NTP, Syslog
• Tools: PLANET NMS, Smart Discovery Utility, Cable Diagnostics, SFP-DDM, LLDP, UDLD
• Maintenance: HTTP firmware/config update

Power Supply:

• AC: 100–240V, 50/60Hz
• DC: 36–60V (2A max.)
• Redundant AC + DC power design
• Power Consumption: Max 72W (AC), 69W (DC)

Mechanical and Environmental:

• Dimensions: 444 x 200 x 44.2 mm
• Weight: 3.4 kg
• Fans: 2 smart-controlled
• Operating Temperature: 0–50°C
• Humidity: 5–95% (non-condensing)
• ESD Protection: ±6KV DC

Certifications:

• FCC Class A, CE
• IEEE 802.3/802.3u/802.3z/802.3ab/802.3ae, 802.3x, 802.3ad, 802.1D/w/s/p/Q/X/ab, 802.3ah
