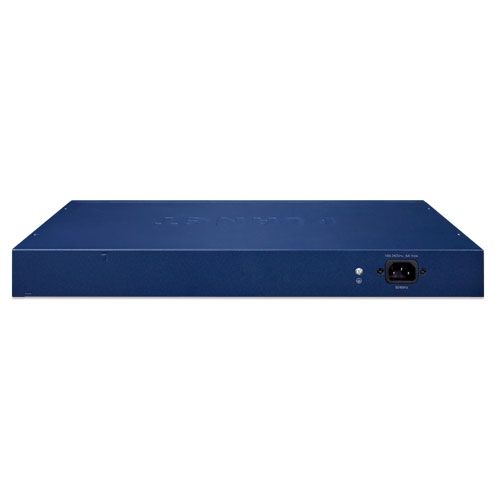

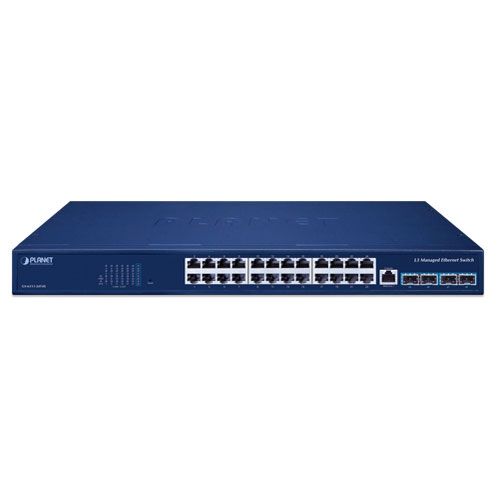

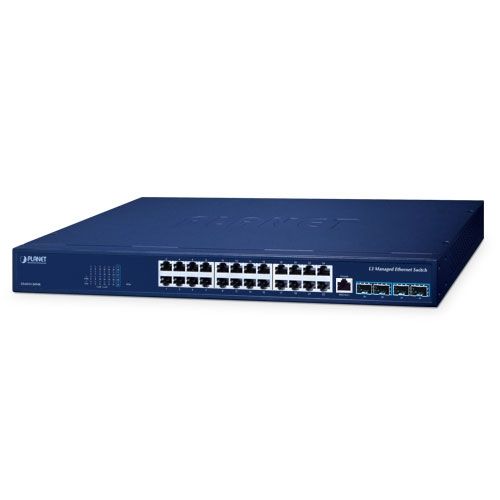

Planet 24-Port Managed Switch GS-6311-24T4X

The PLANET GS-6311-24T4X is a high-end Layer 3 managed Gigabit switch engineered for enterprise networks and data centers. It features 24 RJ45 Gigabit ports and four 10G SFP+ uplink slots within a fanless 1U chassis, offering silent, reliable performance. With 128Gbps switching fabric, Layer 3 routing support (Static, RIP, OSPF), and advanced multicast and security features, this switch ensures efficient and secure handling of demanding applications such as VoIP, video, and backbone routing.

Technical Specifications:

Physical Ports:

• 24 x 10/100/1000BASE-T RJ45 ports
• 4 x 10GBASE-SR/LR SFP+ ports (ports 25–28, 1G compatible)
• 1 x RJ45 Console (RS232)

Switching:

• Architecture: Store-and-Forward
• Fabric: 128 Gbps non-blocking
• Throughput: 95.23 Mpps
• MAC Table: 16K
• ARP Table: 8K
• Routing Table: 6K
• ACL Table: 2K
• IP Interfaces: 1024
• Jumbo Frame: 12 KB
• Buffer Memory: 12MB

Layer 3 Features:

• Routing: Static, RIP v1/v2, OSPF v2
• Multicast Routing: IGMP v1/v2/v3, MLD v1/v2
• VLAN-based routing, route redistribution
• Protocols: ARP, Proxy ARP, IGMP Proxy, ICMPv6, ND, DNSv6

Layer 2 Features:

• VLAN Types: 802.1Q, Q-in-Q, MAC/IP Subnet/Protocol-based
• GVRP, Private VLAN Edge (PVE)
• Spanning Tree: STP, RSTP, MSTP, BPDU/Root Guard
• Link Aggregation: 64 groups, up to 8 ports (LACP/static)
• Port Mirroring, Loop Detection, ERPS Ring (G.8032)
• Port status and configuration tools

Quality of Service (QoS):

• 8 priority queues per port
• Classification: 802.1p, ToS, DSCP, port-based
• Scheduling: Strict Priority, WRR

Multicast:

• IGMP Snooping v1/v2/v3, IGMP Querier
• IPv6 MLD Snooping v1/v2
• MVR (Multicast VLAN Register)

Security Functions:

• Authentication: IEEE 802.1X, MAC/Web-based, RADIUS, TACACS+
• ACLs: IP/MAC-based, time-based
• Security: DHCP Snooping, DAI, IP Source Guard
• DoS Protection, Broadcast/Multicast suppression

Management:

• IPv4/IPv6 Dual Stack
• Interfaces: Web GUI, CLI (Telnet/Console), SNMP v1/v2c/v3
• Secure Access: SSHv2, TLSv1.2
• Syslog, SNMP Traps, RMON (1,2,3,9)
• TFTP/HTTP Updates, User Privilege Control
• SFP-DDM, sFlow, LLDP, ULPP, ULSM
• PLANET Smart Discovery Utility

Environmental & Mechanical:

• Dimensions: 440 x 207 x 44 mm
• Weight: 2.742 kg
• Housing: Metal, 1U, fanless
• Power Consumption: 23.2 W / 79.11 BTU
• ESD Protection: ±6KV contact, ±8KV air
• Operating Temp: 0–50 °C
• Humidity: 5–90% (non-condensing)
