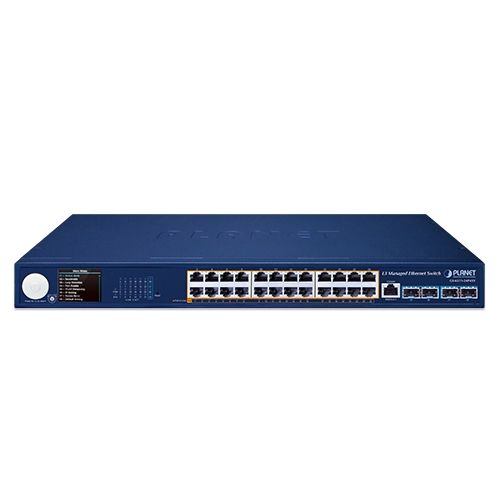

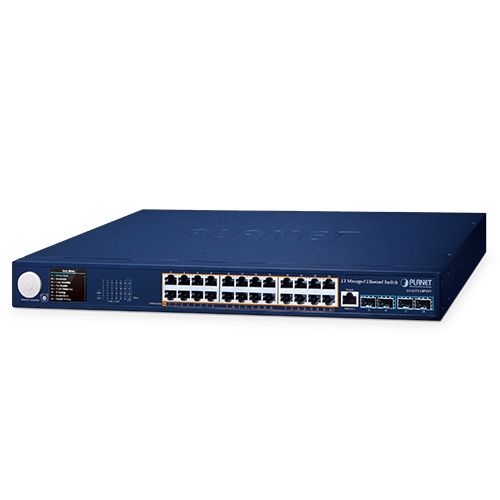

Planet 24-Port PoE+ Managed Switch w/ LCD Screen GS-6311-24P

The PLANET GS-6311-24HP4X is a powerful Layer 3 managed switch equipped with PoE++ and 10G uplink capabilities. It delivers advanced L3 routing, 480W PoE power budget, and high-speed switching, ideal for enterprise-class applications like IP surveillance, VoIP, and wireless networking. The switch offers 24 Gigabit ports (8 PoE++ up to 90W, 16 PoE+ up to 32W) and four 10G SFP+ ports, providing a secure, scalable, and efficient networking backbone.

Technical Specifications:

Physical Ports:

• 8 x 10/100/1000BASE-T PoE++ (up to 90W, Ports 1–8)
• 16 x 10/100/1000BASE-T PoE+ (up to 32W, Ports 9–24)
• 4 x 10GBASE-SR/LR SFP+ (Ports 25–28)
• 1 x RJ45 Console (RS232)

Switching:

• Switching Fabric: 128Gbps (non-blocking)
• Throughput: 95.23 Mpps
• Architecture: Store-and-Forward
• Jumbo Frame: 12 KB
• MAC Table: 16K entries
• Routing Table: 6K, ARP: 8K, ACL: 2K, 1024 IP Interfaces
• Buffer Memory: 12 MB

PoE Capabilities:

• Standards: IEEE 802.3af/at/bt
• Output:
• Ports 1–8: up to 90W (PoE++)
• Ports 9–24: up to 32W (PoE+)
• Total Power Budget: 480 Watts
• PoE Management:
• Enable/Disable per port
• Per port power limit & priority
• PD Alive Check, PoE Scheduling

Layer 3 Features:

• Routing Protocols: Static, RIP v1/v2, OSPF v2
• VLAN-based routing, route redistribution
• IPv6: ICMPv6, ND, DNSv6

Layer 2 Features:

• VLAN: IEEE 802.1Q, Q-in-Q, MAC/IP-Subnet/Protocol-based
• Link Aggregation: 64 groups, up to 8 ports (LACP, static)
• Spanning Tree: STP, RSTP, MSTP, BPDU & Root Guard
• Port Mirroring, Loop Detection, ERPS Ring (G.8032)

Quality of Service (QoS):

• 8 queues per port
• Classification: 802.1p, ToS, DSCP, port-based
• WRR & Strict Priority scheduling

Multicast Support:

• IGMP v1/v2/v3 snooping, Querier
• MLD v1/v2 snooping (IPv6)
• Multicast VLAN Registration (MVR)

Security Functions:

• Authentication: IEEE 802.1X (port, MAC, web), RADIUS, TACACS+
• ACLs: IP/MAC-based, time-based, up to 2K entries
• DHCP Snooping, DAI, IP Source Guard
• Suppression for Broadcast/Multicast/Unknown Unicast

Management:

• IPv4/IPv6 Dual Stack
• Interfaces: CLI, Telnet, Web, SNMP v1/v2c/v3
• Secure: SSHv2, TLSv1.2
• Firmware via TFTP/HTTP, Syslog, RMON, sFlow, LLDP
• PLANET Smart Discovery Utility

SFP Diagnostics:

• Supports DDM for monitoring temperature, voltage, TX/RX power

Mechanical & Environmental:

• Dimensions: 441.5 x 207.5 x 44.4 mm
• Weight: 3.54 kg
• Housing: Metal, 1U Rackmount
• Fans: 2
• Power Consumption: up to 540W (with PoE)
• Operating Temp: 0–50 °C
• Humidity: 5–90% (non-condensing)
