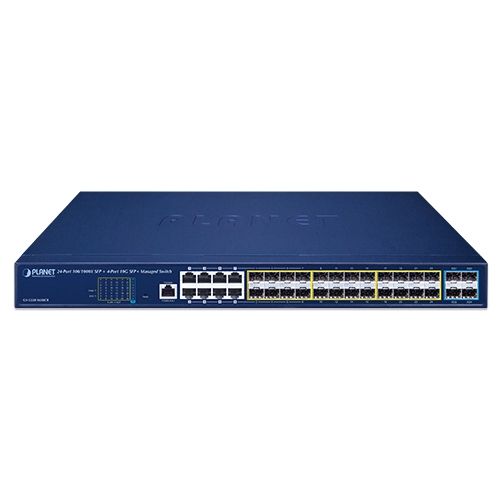

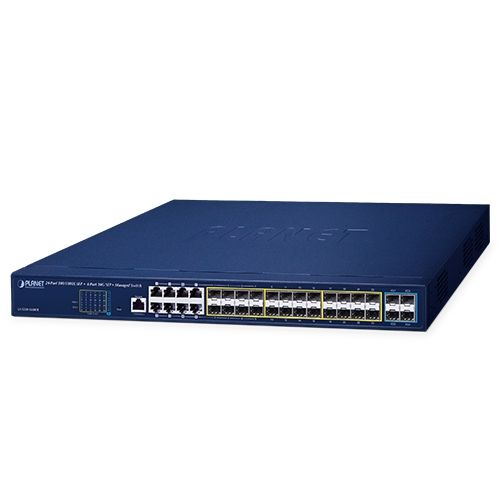

PLANET 24 100/1000X SFP Slots Managed Switch (Redundant)

The PLANET GS-5220-16S8CR is a high-performance Layer 2+ Managed Switch with advanced Layer 3 static routing, tailored for enterprise, data center, and telecom applications. With 24 SFP fiber interfaces, 8 RJ45 Gigabit combo ports, and 4 high-speed 10G SFP+ uplinks, it delivers a robust backbone infrastructure supporting high availability, long-distance connectivity, and large-scale IP surveillance deployments. Its dual AC/DC redundant power design ensures uninterrupted operation, making it a future-proof networking solution.

Technical Details:

Physical Ports:

• 24 x 100/1000BASE-X SFP ports
• 8 x 10/100/1000BASE-T RJ45 (shared with SFP 1–8)
• 4 x 10GBASE-SR/LR SFP+ ports (XG1–XG4, multi-speed)
• 1 x RJ45 console port

Switching Performance:

• Switching Fabric: 128Gbps non-blocking
• Throughput: 95.23Mpps @ 64 bytes
• MAC Table: 16K entries
• Jumbo Frame: 12KBytes
• Packet Buffer: 12Mbit
• Switching Architecture: Store-and-Forward

PoE Capability:

• Not applicable (non-PoE model)

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, Voice, Protocol, Management, Private VLAN
• Aggregation: LACP & Static (8 groups, 8 ports max)
• Spanning Tree: STP, RSTP, MSTP + BPDU Guard/Filtering
• ERPS Ring Redundancy
• IGMP Snooping v2/v3, MLD Snooping v1/v2, Querier support
• LLDP / LLDP-MED
• Port Mirroring, Loop Protection

Layer 3 Features:

• IPv4/IPv6 Static Routing (32 routes max)
• Inter-VLAN routing (up to 64 VLAN interfaces)
• Route summarization supported

QoS (Quality of Service):

• 8 priority queues
• Classification: Port, VLAN ID, 802.1p, DSCP, TOS
• Scheduling: Strict Priority, WRR
• Per port bandwidth limiting (Ingress/Egress)
• Storm Control (Broadcast, Unknown Multicast/Unicast)

Security Features:

• IEEE 802.1X, RADIUS, TACACS+ Authentication
• IPv4/IPv6/MAC-based ACLs (256 entries)
• DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
• DoS Protection
• MAC Filtering, Static MAC, IP-MAC Binding

Management Capabilities:

• IPv4/IPv6 Dual Stack
• Interfaces: Web, Telnet, Console CLI, SNMP v1/v2c/v3
• Secure: HTTPS, SSHv2, TLSv1.2
• Tools: PLANET NMS, CloudViewerPro, Smart Discovery Utility
• Logging: Syslog (local/remote), RMON (4 groups)
• TFTP, BOOTP, DHCP, SNTP
• Dual Image Support, Backup/Restore Firmware & Config
• Diagnostics: SFP-DDM, Cable Test, ICMP Ping

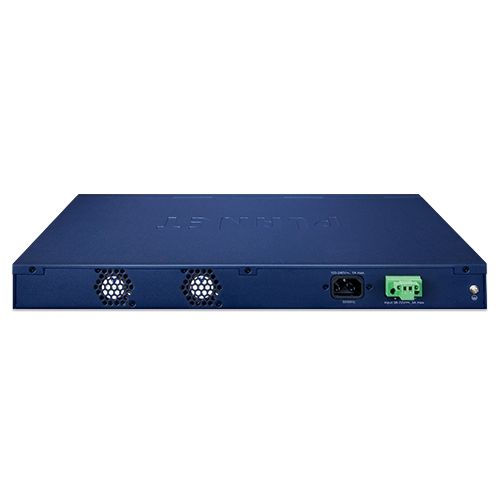

Redundant Power System:

• AC: 100–240V, 50/60Hz
• DC: 36–72V
• Redundancy: Dual (AC + DC), active-active
• Ensures uninterrupted operation

Mechanical & Environmental:

• Chassis: Metal, 1U rackmount
• Dimensions: 440 x 260 x 44 mm
• Weight: 3.495 kg
• Power Consumption: Max. 36.2W / 102.9 BTU
• Operating Temp: 0–50 °C
• Humidity: 5–95% (non-condensing)
