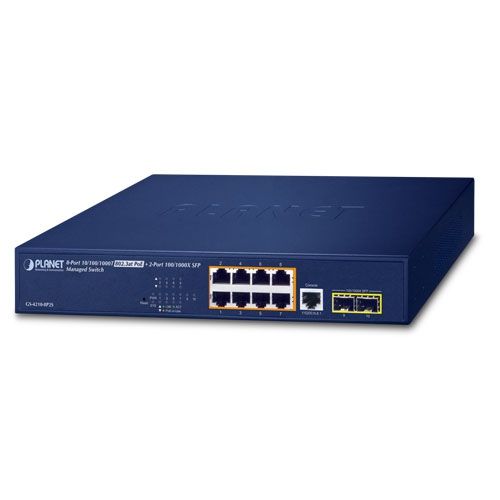

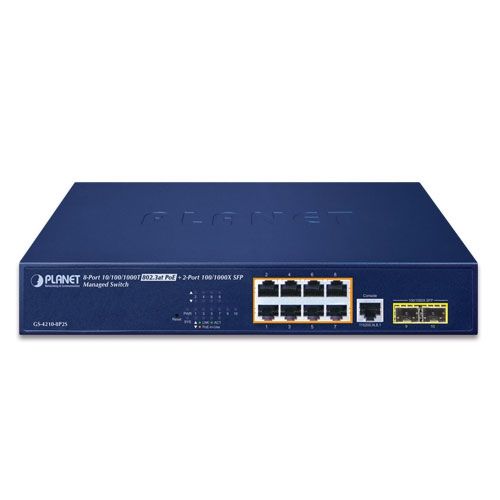

PLANET 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X

The PLANET GS-4210-8P2S is a compact, cost-effective managed Gigabit PoE+ switch tailored for SMBs. With eight 10/100/1000BASE-T PoE+ ports (30W each) and two SFP uplink ports, it provides robust Layer 2/4 switching, intelligent power distribution, and high network performance in a fanless, silent design. Supporting both IPv4 and IPv6, it's built for modern networks requiring reliability, energy-efficiency, and strong cybersecurity.

Equipped with advanced PoE management (PD alive check, scheduling, usage monitoring), QoS, VLANs, and ERPS ring redundancy, the GS-4210-8P2S helps administrators build high-availability, secure networks for VoIP, surveillance, and wireless deployments.

Technical Specifications:

Interfaces:

• 8 x 10/100/1000BASE-T RJ45 with IEEE 802.3af/at PoE+ (Port 1–8)
• 2 x 100/1000BASE-X SFP (Port 9–10)
• 1 x RS232 RJ45 Console

PoE:

• Compliant with IEEE 802.3af/at, End-span PSE
• Up to 30W per port
• Total budget: 140W @ 25°C / 120W @ 50°C
• PoE Management:
• Per-port enable/disable
• Priority, allocation, scheduling
• PD detection, alive check
• Extended mode up to 250m

Switching:

• Architecture: Store-and-Forward
• Fabric: 20 Gbps, non-blocking
• Throughput: 14.88 Mpps
• Jumbo Frame: 10K bytes
• MAC Table: 8K
• Buffer: 4.1 Mbit

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, Voice, Protocol, Private, Management, GVRP
• VLAN Groups: 256 (from 4094)
• Aggregation: LACP/static, 1 group with 2 ports
• Spanning Tree: STP, RSTP, MSTP, BPDU Guard/Filter
• IGMP/MLD Snooping with querier support
• Loop protection, port mirroring
• LLDP & LLDP-MED
• ERPS support (ITU-T G.8032)

QoS:

• 8 classes of service
• Classification: Port, 802.1p, VLAN tag, DSCP/IP
• Rate limiting, storm control
• WRR & strict priority

Security:

• ACLs: IPv4/IPv6, MAC-based
• IEEE 802.1X authentication, RADIUS/TACACS+
• DHCP Snooping, ARP Inspection, IP Source Guard
• DoS protection, MAC filtering, Port security

Management:

• Dual-stack IPv4/IPv6
• Interfaces: Web GUI, Telnet, CLI
• SNMP v1/v2c/v3, SSHv2, TLSv1.2
• Tools: Syslog, SNTP, firmware/config management
• Diagnostics: Ping, cable test, SFP-DDM
• Supports PLANET Smart Discovery & NMS systems

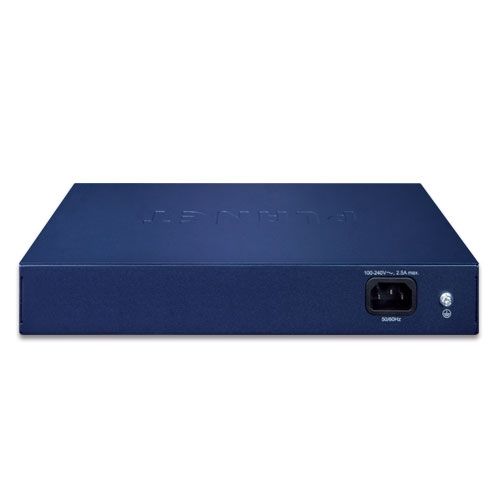

Mechanical & Power:

• Metal chassis, fanless
• Dimensions: 280 x 180 x 44 mm
• Weight: 1.6 kg
• Power: AC 100~240V, 2.5A
• Max consumption: 170W (580 BTU)
• ESD: 6kV contact / 8kV air
• Operating temp: 0–50°C; Storage: -20–70°C
