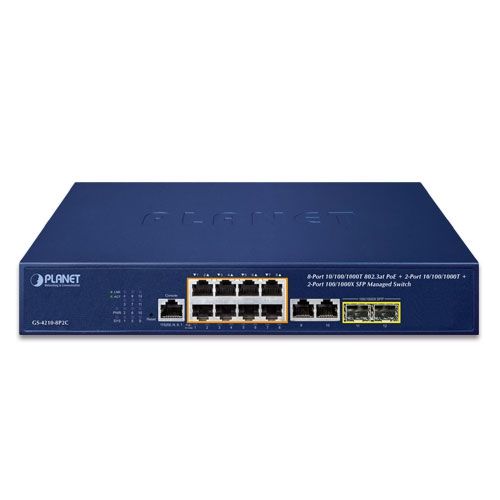

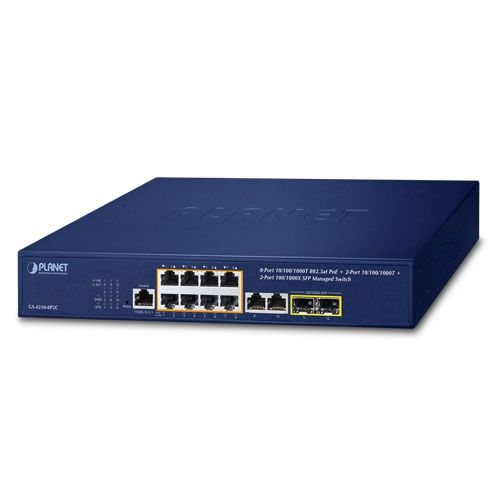

PLANET 8-Port GE GS-4210-8P2C 802.3at POE+

The PLANET GS-4210-8P2C is a cost-effective, compact managed Gigabit PoE+ switch designed for small to medium-sized networks. It features 8 PoE+ Gigabit ports (32W each), 2 additional Gigabit copper ports, and 2 SFP fiber slots, delivering high-performance Layer 2/4 switching, reliable power distribution, and security-rich management in a space-saving metal housing with quiet ventilation.

Equipped with intelligent PoE features like PD Alive Check, power scheduling, and power monitoring, the GS-4210-8P2C simplifies the deployment of IP cameras, wireless access points, and VoIP devices. With a 120W total power budget, ERPS redundancy, QoS, and full IPv6/IPv4 support, it provides efficient traffic control, security enforcement, and network resilience.

Technical Specifications:

Interfaces:

• 8 x 10/100/1000BASE-T RJ45 with IEEE 802.3af/at PoE+ (Port 1–8)
• 2 x 10/100/1000BASE-T RJ45 (Port 9–10)
• 2 x 100/1000BASE-X SFP (Port 11–12)
• 1 x RS232 RJ45 Console

PoE:

• IEEE 802.3af/at compliant, end-span PSE
• Max power per port: 32W
• Total PoE budget: 120W
• PoE Management:
• Enable/disable per port
• Power priority and allocation
• PD classification and alive check
• PoE scheduling
• Extend mode up to 250 meters

Switching:

• Architecture: Store-and-Forward
• Switch Fabric: 24 Gbps
• Throughput: 17.85 Mpps
• Jumbo Frame: 10K bytes
• MAC Address Table: 8K
• Buffer: 4.1 Mbit

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, Voice, Protocol, Private, Management, GVRP
• VLAN Groups: Up to 256
• Aggregation: LACP/static, 2 groups with 4 ports
• Spanning Tree: STP, RSTP, MSTP, BPDU Guard/Filter
• IGMP/MLD Snooping with filtering and querier
• LLDP & LLDP-MED
• ERPS Ring (ITU-T G.8032)

QoS:

• 8 traffic classes
• Classification: Port, 802.1p, VLAN tag, DSCP/IP precedence
• Bandwidth control, Storm control
• WRR and strict priority scheduling

Security:

• Access Control: IPv4/IPv6, MAC-based ACLs
• IEEE 802.1X authentication with RADIUS/TACACS+
• DHCP Snooping, ARP Inspection, IP Source Guard
• DoS protection, MAC Filtering, Port Security

Management:

• IPv4/IPv6 dual stack
• Interfaces: Web GUI, Telnet, Console CLI
• SNMP v1/v2c/v3, SSHv2, TLSv1.2
• Functions: Firmware/config via HTTP/TFTP, Dual image
• SNTP, Syslog, Event logging
• Diagnostics: Ping, Cable test, SFP-DDM
• PLANET Smart Discovery, NMS, CloudViewer support

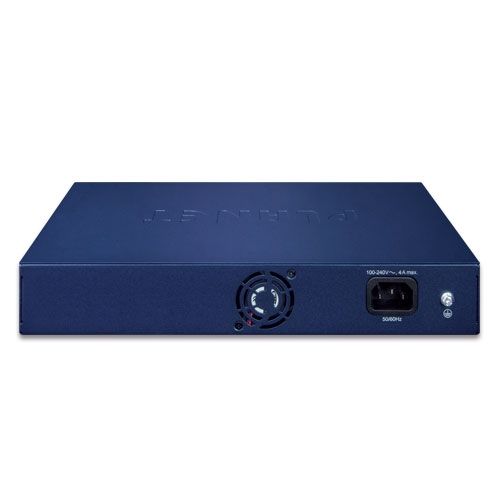

Mechanical & Power:

• Metal chassis, 1U size
• Dimensions: 280 x 180 x 44 mm
• Weight: 1.7 kg
• Fan: 1 fixed-speed fan
• Power: AC 100~240V, 4A
• Consumption: Max 154W (525 BTU)
• ESD Protection: 6kV contact / 8kV air
• Operating Temp: 0–50°C; Storage: -20–70°C
