PLANET 2Port GE 802.3bt + 6Port GE 802.3at + 2Port 1000X SFP

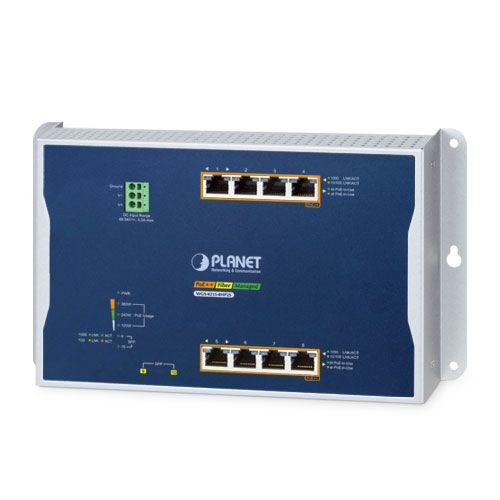

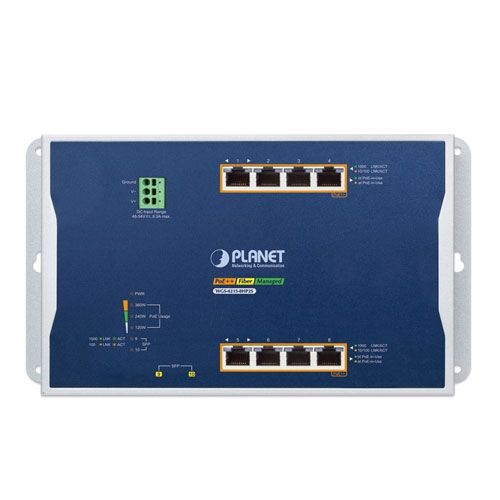

The PLANET WGS-4215-8HP2S is a rugged industrial wall-mounted switch with 8 IEEE 802.3bt PoE++ Gigabit ports (up to 95W per port) and 2 combo SFP ports. Designed for confined spaces like electrical cabinets or wall enclosures, this compact and fanless device supports IPv6/IPv4 dual-stack, robust Layer 2/4 switching, and advanced PoE power control. It delivers reliable, high-power connectivity for industrial automation, IP surveillance, and wireless networks.

With a total power budget of 360W and four configurable PoE output modes, the WGS-4215-8HP2S powers devices such as PTZ cameras, POS terminals, and high-performance wireless access points. Advanced PoE management, security features, and ERPS ring support ensure optimal uptime and strong protection against cyber threats. This unit is built for harsh environments, with a wide operating temperature range and durable IP30-rated housing.

Technical Specifications:

Interfaces:

• 8 x 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE++ (95W)

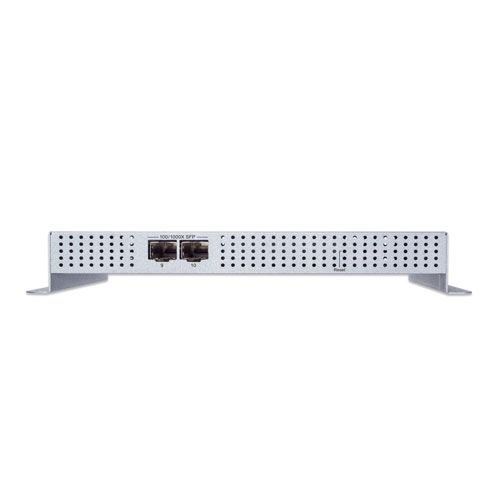

• 2 x 100/1000BASE-X SFP combo ports
• 1 x Reset button (Reboot / Factory reset)

Mechanical & Housing:

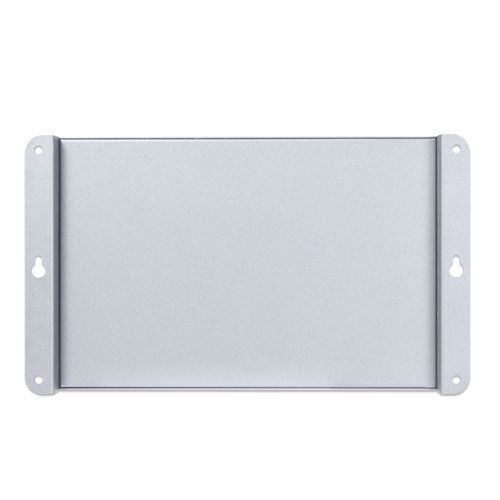

• Flat wall-mountable IP30-rated metal case
• Dimensions: 245 x 140 x 36 mm
• Weight: 937 g
• Operating Temp: -40 to +75 °C
• ESD Protection: 6kV contact / 8kV air discharge

PoE Capabilities:

• Standards: IEEE 802.3bt (Type 4), IEEE 802.3at/af compatible
• Max power per port: 95W
• Total PoE budget: 360W
• PoE Management:
• Enable/disable per port
• Power priority
• PD alive check
• PoE scheduling
• Power usage monitoring
• Extended Mode up to 250m
• Modes: Standard, Legacy, Force

Switching:

• Architecture: Store-and-Forward
• Fabric: 20 Gbps non-blocking
• Throughput: 14.88 Mpps
• Jumbo Frame: 10K bytes
• MAC Table: 8K entries
• Buffer: 4.1 Mbit

Layer 2 Features:

• VLAN: 802.1Q tagged, Q-in-Q, Voice, Protocol, Private, Management, GVRP
• Up to 256 VLAN groups (of 4094)
• Link Aggregation: LACP / Static, 5 groups up to 8 ports
• Spanning Tree: STP, RSTP, MSTP with BPDU Guard/Filtering
• IGMP/MLD Snooping with Querier and filtering
• LLDP and LLDP-MED support

QoS:

• 8 Priority queues per port
• Classification: 802.1p, VLAN Tag, DSCP/IP precedence
• Ingress/Egress bandwidth control
• Storm control

Security:

• Access Control: IPv4/IPv6/MAC ACL, 256 entries
• Authentication: IEEE 802.1X with RADIUS/TACACS+ support
• Enhanced Security: DHCP Snooping, ARP Inspection, IP Source Guard, DoS Protection
• MAC Binding, Port Security

Management:

• Interfaces: Web GUI, Telnet, SSHv2, SNMP v1/v2c/v3, TLSv1.2
• Maintenance: Firmware/config via TFTP/HTTP, dual image
• Diagnostics: ICMP Ping, Cable diagnostics, SFP-DDM
• NMS: PLANET UNI-NMS, CloudViewer app
• Protocols: LLDP, SNTP, Syslog, RMON
