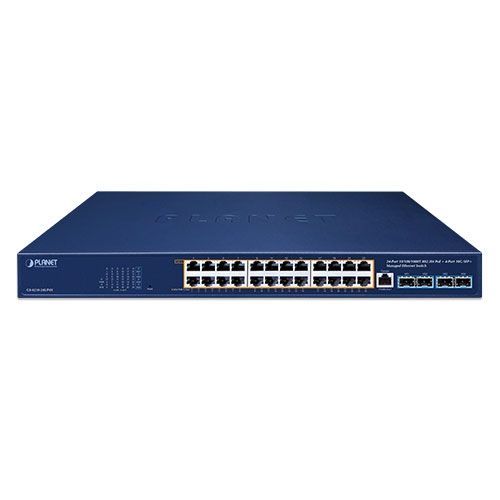

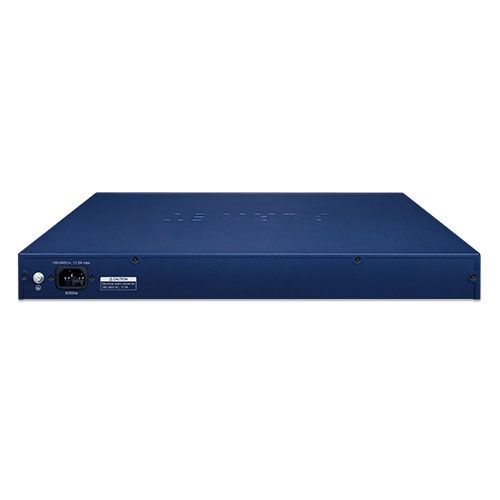

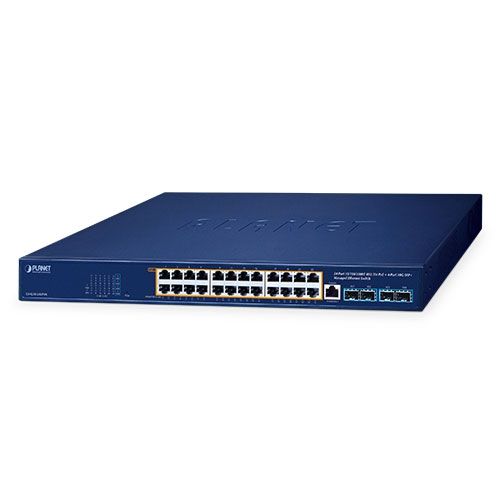

Planet 24-Port PoE++ Managed Switch GS-4210-24UP4X

The PLANET GS-4210-24UP4X is a high-performance, fully managed Gigabit switch with 802.3bt PoE++ support, built for demanding enterprise applications. Equipped with 24 PoE++ RJ45 ports (up to 95W each) and 4 10G SFP+ ports, it delivers unmatched power and flexibility for modern networks. The switch features IPv6/IPv4 dual stack, robust Layer 2/4 switching, extensive security, and advanced PoE intelligence.

With a total PoE budget of 720W, it can power multiple high-consumption devices such as PTZ cameras, digital signage, touch PCs, or POS systems simultaneously. The GS-4210-24UP4X is ideal for businesses requiring scalable, secure, and energy-efficient infrastructure with maximum performance.

Technical Details:

Interfaces:

• 24 x 10/100/1000BASE-T RJ45 with 802.3bt PoE++ (95W per port)
• 4 x 10GBASE-SR/LR SFP+ slots (backward compatible with 100/1G/2.5G SFPs)
• 1 x RJ45 to DB9 Console Port

Switching:

• Architecture: Store-and-Forward
• Switch Fabric: 128 Gbps (non-blocking)
• Throughput: 95.23 Mpps @64 bytes
• MAC Table: 16K entries
• Jumbo Frame: 12K bytes
• Shared Buffer: 12 Mbits

Power over Ethernet:

• Standard: IEEE 802.3bt PoE++, backward compatible with 802.3at/af
• Max Output: 95W per port (1–24)
• Total Budget: 720W
• PoE Modes: 802.3bt / 802.3at (End-span) / Legacy
• PoE Extension: Up to 250m at 10 Mbps
• Management: Enable/disable per port, scheduling, recycling, PD detection, power limiting

Layer 2 Features:

• VLANs: 802.1Q, Q-in-Q, Voice, Management, Private, Protocol, GVRP
• Spanning Tree: STP/RSTP/MSTP with BPDU Guard/Filtering
• Link Aggregation: 8 groups with 8 ports (LACP & static)
• IGMP/MLD Snooping & Querier, up to 256 groups
• Port Mirroring, Loop Protection, LLDP, ERPS (G.8032)

Quality of Service (QoS):

• 8 queues per port
• Classification: Port number, 802.1p, DSCP/IP Precedence
• Bandwidth Control (Ingress/Egress)
• Storm Control: Broadcast/Unicast/Multicast
• Scheduling: WRR & Strict Priority

Security:

• Authentication: 802.1X, RADIUS, TACACS+, DHCP Option 82
• ACLs: IPv4/IPv6, MAC-based (up to 256 entries)
• MAC Security: Static MACs, Filtering, IP-MAC Binding
• Enhanced Protection: DHCP Snooping, ARP Inspection, IP Source Guard, DoS prevention

Management:

• IPv4/IPv6 Dual Stack
• Interfaces: Web GUI, CLI (Console/Telnet), SNMP v1/v2c/v3, SSHv2, TLS v1.2
• Tools: PLANET NMS, Smart Discovery Utility, CloudViewerPro, NMSViewerPro
• Features: Firmware/Config upload, dual image, LLDP/LLDP-MED, Syslog, SNTP, TFTP

Mechanical & Power:

• Dimensions: 440 x 330 x 44 mm (19”, 1U)
• Weight: 4.36 kg
• Max Consumption: 775W / 2645.9 BTU
• Enclosure: Metal, rack-mountable
• Fans: 4 smart-controlled fans
• ESD Protection: 6KV (Contact), 8KV (Air)
• Surge Protection: 4KV (Common), 2KV (Differential)

Environmental:

• Operating Temp: 0–50 °C, 5–95% RH (non-condensing)
• Storage Temp: -10–60 °C, 5–95% RH
