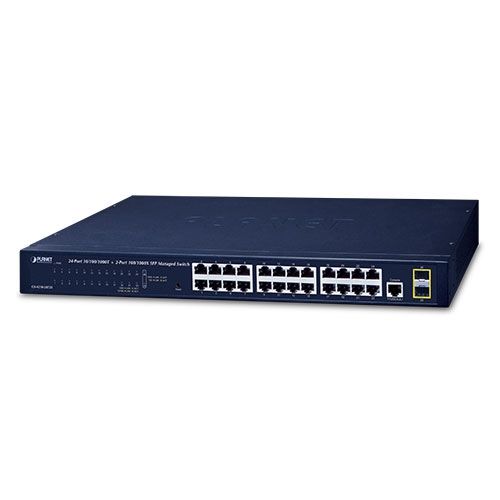

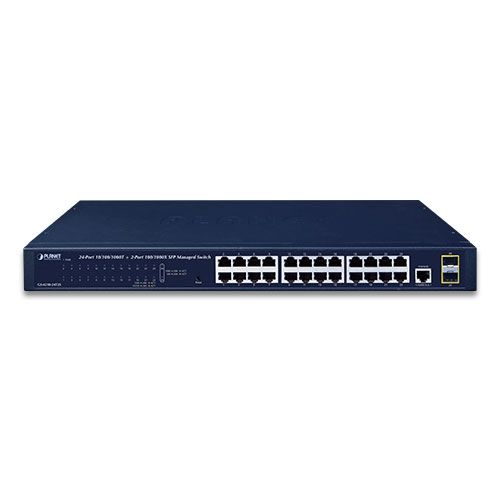

PLANET 24-Port Layer 2 Managed Gigabit Ethernet Switch +

The PLANET GS-4210-24T2S is a powerful, energy-efficient, and cost-effective Gigabit Layer 2/4 managed switch designed for modern SMB networks. Featuring 24 Gigabit Ethernet ports and 2 additional SFP slots, it is ideal for departmental and office connectivity. With its fanless design, the switch delivers completely silent operation, perfect for noise-sensitive environments.

Packed with advanced L2/L4 switching, IPv6/IPv4 dual-stack management, and extensive security features, the GS-4210-24T2S ensures a stable, scalable, and secure network infrastructure. Capabilities such as VLAN, Link Aggregation, QoS, DHCP Snooping, and ERPS ring topology provide high availability and performance for enterprise backbones, server farms, or FTTx edge applications.

Technical Details:

Interfaces:

• 24 x 10/100/1000BASE-T RJ45 (Auto MDI/MDI-X)
• 2 x 100/1000BASE-X SFP ports
• 1 x RS232 Console Port
• Reset button

Switching:

• Architecture: Store-and-Forward
• Switch Fabric: 52 Gbps
• Throughput: 38.6 Mpps @64 bytes
• MAC Address Table: 8K entries
• Jumbo Frame: 9216 bytes
• Buffer: 4.1 Mbits

Layer 2 Features:

• VLAN: IEEE 802.1Q, Q-in-Q (802.1ad), Voice, Management, Protocol, Private VLAN, GVRP
• Spanning Tree: STP / RSTP / MSTP with BPDU Guard and Filtering
• Link Aggregation: LACP & Static Trunk, up to 8 groups with 8 ports
• IGMP Snooping v2/v3 & MLD v1/v2, IGMP Querier, up to 256 groups
• Loop Protection, Port Mirroring (many-to-1), LLDP, ERPS (G.8032)

Quality of Service (QoS):

• 8 queues per port
• Classification: Port number, 802.1p, DSCP/IP Precedence
• Ingress/Egress Bandwidth Control
• WRR & Strict Priority, Storm Control (Broadcast/Multicast/Unicast)

Security Features:

• Authentication: 802.1X, RADIUS, TACACS+, DHCP Option 82
• ACLs: IPv4/IPv6, MAC-based, up to 256 entries
• MAC Security: Static MACs, Filtering, IP-MAC Binding
• Protection: DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, DoS Prevention
• Port Security

Management & Diagnostics:

• IPv4/IPv6 Dual Stack
• Interfaces: Web GUI, CLI (Telnet/Console), SNMP v1/v2c/v3, SSHv2, TLS v1.2
• Tools: PLANET NMS, CloudViewer, Smart Discovery Utility
• Logs: Local/Remote Syslog, SNMP Traps, RMON (1,2,3,9)
• Firmware/config upload/download via HTTP/TFTP
• Cable diagnostics, SFP-DDM, Remote Ping

Mechanical & Power:

• Dimensions: 445 x 207 x 45 mm, 1U rack-mount
• Weight: 2.1 kg
• Power: 100–240V AC, Max. 14W (47 BTU)
• Housing: Metal
• Fanless, silent operation
• ESD protection: Yes

Environment:

• Operating: 0–50 °C, 5–95% RH (non-condensing)
• Storage: -10–70 °C, 5–95% RH
