PLANET 24-Port 10/100/1000Mbps 802.3at PoE + 4-Port Gigabit

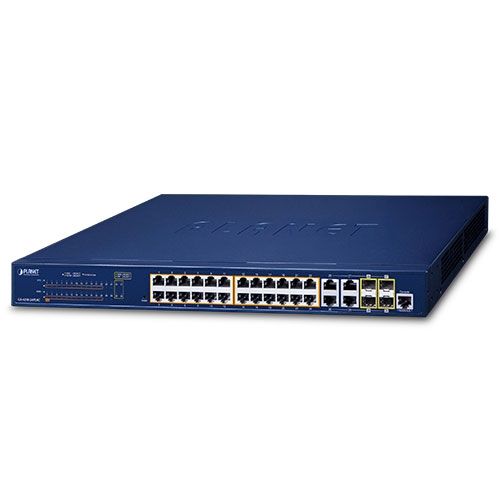

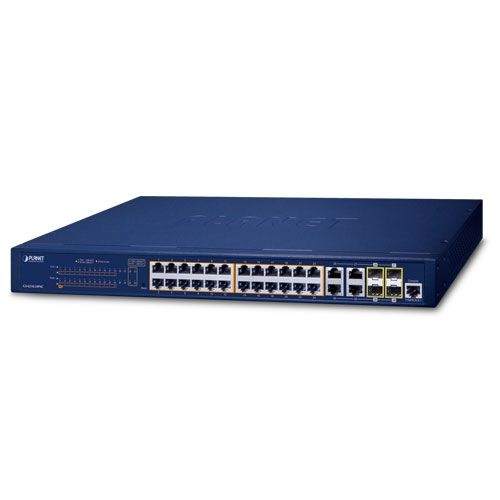

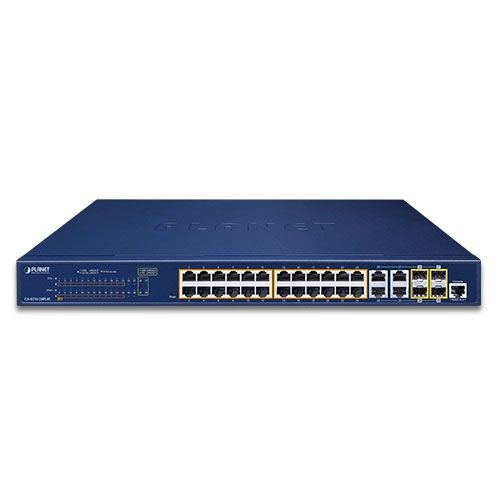

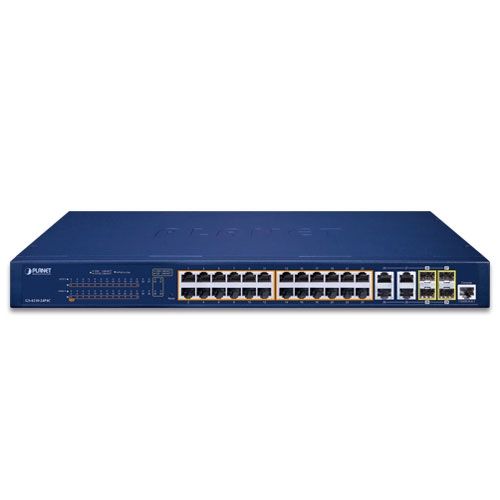

The PLANET GS-4210-24P4C and GS-4210-24PL4C are intelligent and cost-optimized managed PoE+ switches with 24 Gigabit PoE ports (802.3at) and four additional TP/SFP combo ports. These switches combine comprehensive L2/L4 features, advanced security mechanisms, and powerful PoE management with a total PoE budget of up to 430 watts—ideal for surveillance, VoIP, or wireless deployments.

With advanced features like PoE scheduling, PD Alive Check, VLAN segmentation, and extensive Layer-2 to Layer-4 security rules, the GS-4210 PoE series allows for the deployment of highly available, efficient, and secure networks. The GS-4210-24PL4C in particular supports high-powered PDs such as PTZ cameras or multi-band APs.

Technical Specifications:

Interfaces:

• 24 x 10/100/1000BASE-T RJ45 with IEEE 802.3af/at PoE+
• 4 x 100/1000BASE-X SFP/TP combo slots (ports 25–28)
• 1 x RJ45 console port (RS232)

PoE Capabilities:

• Standards: IEEE 802.3af/at (Endspan), max. 30W per port
• Budget: 280W (GS-4210-24P4C), 430W (GS-4210-24PL4C)
• PD detection, PoE monitoring, Alive Check, scheduling, power limit per port
• Extend mode up to 250m at 10 Mbps

Switching & Architecture:

• Switching method: Store-and-Forward
• Switch Fabric: 56 Gbps, Throughput: 41.67 Mpps
• MAC Table: 8K entries, Jumbo Frame: 10K bytes
• ESD Protection: 4kV contact / 8kV air

Layer 2 Features:

• VLAN: IEEE 802.1Q, Q-in-Q (802.1ad), Voice, Private, Protocol, Management VLAN, GVRP
• Spanning Tree: STP, RSTP, MSTP with BPDU Guard/Filtering
• Link Aggregation: LACP and Static, up to 8 groups
• IGMP (v2/v3) & MLD Snooping (v1/v2), up to 256 groups
• LLDP, Loop Protection, Port Mirroring (many-to-1), ERPS Ring (G.8032)

Quality of Service (QoS):

• 8 queues per port, classification by port ID, 802.1p, DSCP, IP precedence
• Per port bandwidth control (Ingress/Egress), WRR & Strict Priority, Storm Control

Security Features:

• Authentication: 802.1X (Port-based), RADIUS, TACACS+, DHCP Option 82
• ACLs: IPv4/IPv6, MAC-based, up to 256 entries
• MAC Security: Static MACs, Filtering, IP-MAC Binding
• Protection: ARP Inspection, DHCP Snooping, IP Source Guard, DoS mitigation

Management & Diagnostics:

• IPv4/IPv6 dual stack, Web GUI, CLI (Telnet/Console), SNMP v1/v2c/v3, SSHv2, TLSv1.2
• SNMP Traps, RMON (1,2,3,9), TFTP/HTTP config management, Syslog
• LLDP/LLDP-MED, Smart Discovery Utility, PLANET NMS/CloudViewer
• Ping test, cable diagnostics, SFP-DDM (temp, voltage, power)

Mechanical & Power:

• Dimensions: GS-4210-24P4C: 441.2 x 207.5 x 44 mm, 2.9 kg
GS-4210-24PL4C: 441 x 330 x 44 mm, 4.6 kg

• Power Input: 100–240V AC, 50/60Hz
• Power Consumption: max. 333W / 505W
• Cooling: 3 Smart Fans
• Enclosure: Metal, 1U rack-mountable

Certifications & Environmental:

• Compliance: FCC Part 15 Class A, CE
• Operating Temp: 0–50 °C, 5–90 % RH
• Storage Temp: -20–70 °C, 5–95 % RH
