PLANET 24-Port 10/100/1000Mbps 802.3at PoE + 4-Port Gigabit

The PLANET GS-4210-24P4C and GS-4210-24PL4C are powerful, cost-efficient Gigabit managed PoE+ switches engineered for high-performance Power over Ethernet applications. With 24 IEEE 802.3at PoE+ ports and four Gigabit TP/SFP combo uplinks, these switches offer robust Layer 2/Layer 4 features, advanced security, and intelligent power management suited for small and mid-size business networks.

Supporting a PoE power budget of 280W (GS-4210-24P4C) or 430W (GS-4210-24PL4C), the switches can power a full range of PDs, from IP cameras to access points and VoIP phones. Features such as PoE scheduling, PD alive check, energy usage monitoring, and long-distance PoE extension make these devices ideal for modern, resilient network deployments.

Technical Specifications:

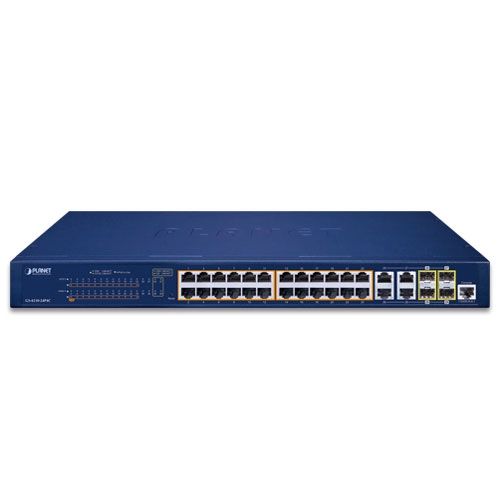

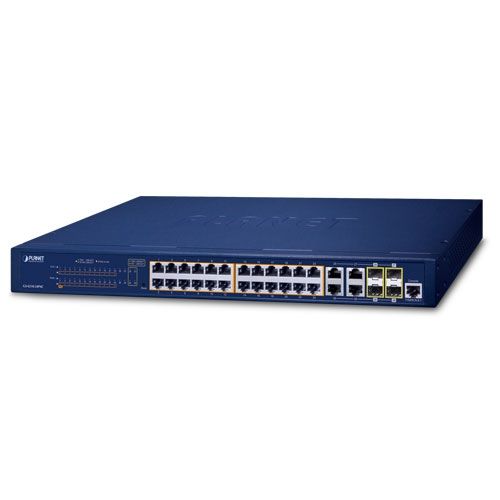

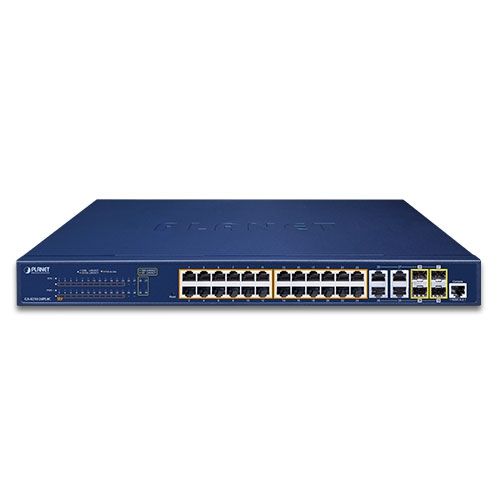

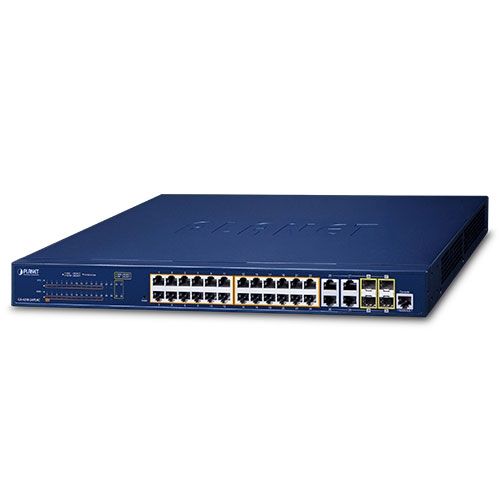

Ports:

• 24 x 10/100/1000BASE-T RJ45 with IEEE 802.3af/at PoE+
• 4 x 100/1000BASE-X SFP combo slots (shared with ports 25–28)
• 1 x RS232 console port (RJ45)
• Reset Button: <5 sec reboot, >5 sec factory reset

PoE Capabilities:

• Standards: IEEE 802.3af/at, Endspan (pins 1/2+, 3/6–)
• Per-Port Power: up to 30W
• Budget: 280W (GS-4210-24P4C) / 430W (GS-4210-24PL4C)
• PD Support: up to 24 PoE devices
• Management:
• Per port enable/disable
• Priority and power limits
• Scheduled PoE control
• PD classification detection
• Power monitoring
• Alive Check & scheduled reboot
• Extend Mode (250m at 10Mbps)

Switching:

• Architecture: Store-and-Forward
• Fabric: 56 Gbps / Throughput: 41.67 Mpps
• MAC Table: 8K entries
• Jumbo Frame: 10K bytes
• ESD Protection: 4kV contact / 8kV air

Layer 2 Features:

• VLAN: IEEE 802.1Q, Q-in-Q, Voice, Management, Private, Protocol VLAN, GVRP
• STP/RSTP/MSTP with BPDU Guard/Filter
• Link Aggregation: IEEE 802.3ad (LACP) and static (8 groups)
• IGMP Snooping (v2/v3), MLD (v1/v2), up to 256 groups
• Port Mirroring, Loop Protection
• ERPS (G.8032 Ring)
• LLDP / LLDP-MED

Quality of Service (QoS):

• 8 Queues per port
• Classification: Port, 802.1p, DSCP, IP Precedence
• WRR & Strict Priority
• Bandwidth control per port (Ingress/Egress)
• Storm Control: Broadcast/Unknown Unicast/Multicast

Security:

• Authentication: 802.1X, RADIUS, TACACS+, DHCP Option 82
• ACL: IPv4/IPv6, MAC-based (up to 256 entries)
• MAC Security: Static MACs, filtering, IP-MAC binding
• Port Security, DHCP Snooping, ARP Inspection, IP Source Guard
• DoS Attack Protection

Management:

• Dual Stack IPv4/IPv6
• Access: Web GUI, CLI via Console/Telnet, SNMP v1/v2c/v3, SSHv2, TLSv1.2
• SNMP Features: RMON (history, stats, alarms, events), traps
• System Tools:
• TFTP/HTTP firmware and config upload
• Dual Image support
• Syslog (remote/local)
• SNTP time sync
• PLANET Discovery Tool, NMS/CloudViewer
• Ping test, cable diagnostics, SFP DDM

Hardware & Power:

• Dimensions:
• GS-4210-24P4C: 441.2 x 207.5 x 44 mm, 2.9 kg
• GS-4210-24PL4C: 441 x 330 x 44 mm, 4.6 kg
• Enclosure: Metal, 1U rack-mount

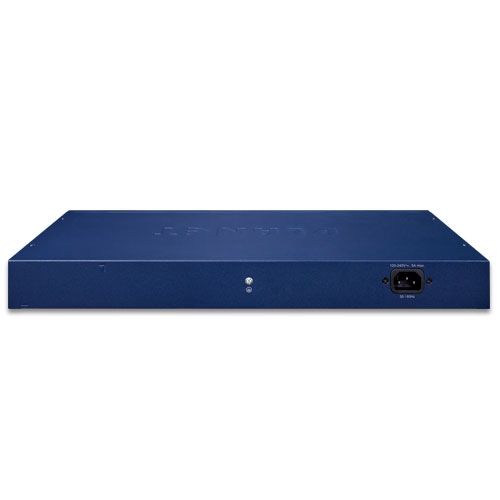

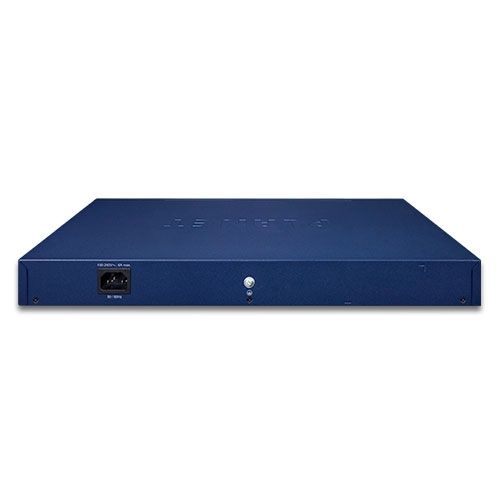

• Power Input: 100–240V AC, 50/60 Hz
• Power Consumption: 333W / 505W max.
• Cooling: 3 Smart Fans

Certifications & Environment:

• Regulatory: FCC Class A, CE
• Operating Temp: 0–50°C, 5–90% RH
• Storage Temp: -20–70°C, 5–95% RH
