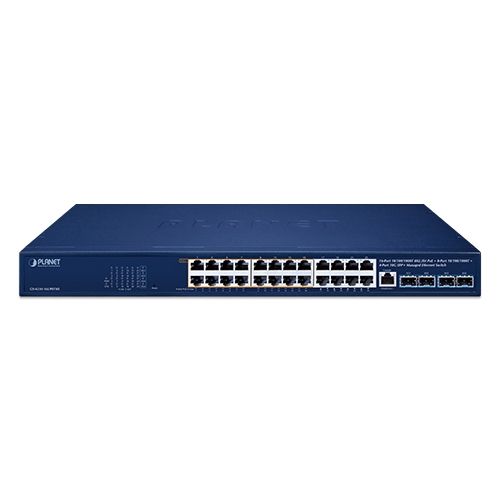

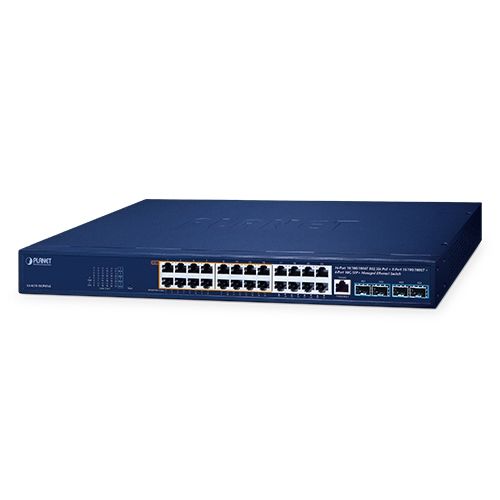

Planet 24-Port (16x PoE++) Managed Switch GS-4210-16UP8T4X

The PLANET GS-4210-16UP8T4X is a powerful 802.3bt PoE++ managed switch built for modern enterprise, datacenter, and industrial networks. It includes 16 PoE++ ports (up to 95W), 8 additional Gigabit copper ports, and 4 high-speed 10G SFP+ uplinks. Designed for demanding PoE deployments, it delivers up to 420W of total power—ideal for PTZ cameras, digital signage, workstations, and VoIP.

It includes intelligent PoE features like PD Alive Check, scheduled power recycling, real-time power monitoring, and PoE scheduling. The extend mode supports power transmission up to 250 meters. Its smart fan design keeps the unit quiet and cool for reliable performance.

Advanced L2/L4 functions include VLAN, MSTP, Link Aggregation, IGMP/MLD Snooping, ACLs, and robust QoS. Security features such as DHCP Snooping, IP Source Guard, and ARP Inspection are built-in to secure network traffic at the edge. With IPv6/IPv4 dual-stack, SNMP v3, SSHv2, and TLS support, it's ready for future-proof management and integration.

Technical Specifications:

Ports:

• 16x 10/100/1000BASE-T PoE++ Ports (Ports 1–16)
• 8x 10/100/1000BASE-T Ports (Ports 17–24)
• 4x 10G SFP+ Slots (XG1–XG4), backward compatible with 100/1G/2.5G SFP
• 1x RJ45-to-RS232 Console port
• Reset Button (<5s reboot / >5s factory reset)

PoE Capabilities:

• PoE Standard: IEEE 802.3bt (95W), 802.3af/at compatible
• Power Budget: 420W
• Modes: 802.3bt, End-span, Legacy, UPoE
• Extended range: up to 250m
• Management: port enable/disable, power limits, scheduling, priority, PD detection, classification

Switching & L2 Features:

• Fabric: 128 Gbps / 95.23 Mpps
• MAC Table: 16K
• Jumbo Frames: up to 12K
• VLANs: 802.1Q, Q-in-Q, Voice, Management, Protocol, GVRP
• STP/RSTP/MSTP with BPDU Guard/Filtering
• Link Aggregation: 8 groups of 8 ports (LACP, static)
• Port Mirroring (up to 4 sessions), Loop Protection
• ERPS (G.8032) <450ms recovery
• Multicast: IGMP v2/v3, MLD v1/v2, Querier, up to 256 groups
• LLDP / LLDP-MED

QoS & Traffic Management:

• 8 queues with WRR/Strict Priority
• Classification: Port, 802.1p, DSCP, IP precedence
• Bandwidth control per port
• Storm control: broadcast/unicast/multicast

Security:

• Authentication: 802.1X, RADIUS, TACACS+, DHCP Option 82
• ACLs: IPv4/IPv6, MAC-based (256 entries)
• MAC Security: Binding, Filtering, Static
• DHCP Snooping, ARP Inspection, IP Source Guard, DoS Protection

Management:

• Dual Stack IPv4/IPv6
• Interfaces: Web GUI, Telnet, Console, SNMP v1/v2c/v3
• Secure: SSHv2, TLS v1.2
• Tools: TFTP/HTTP, Dual Images, LLDP, SNTP, Syslog, PLANET Smart Discovery, NMS, NMSViewerPro, CloudViewerPro
• Diagnostics: SFP-DDM, Cable Test, ICMPv4/v6 Ping

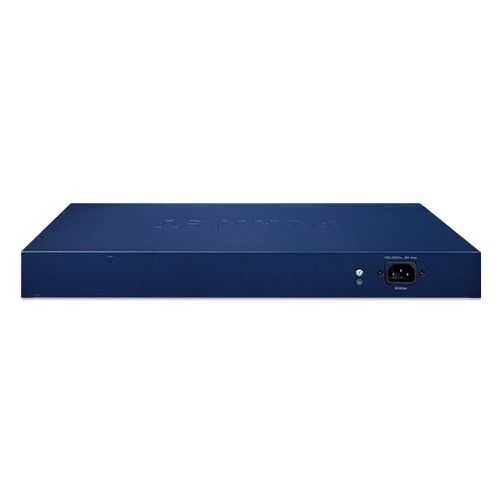

Hardware & Power:

• Dimensions: 441.1 x 207.5 x 44.2 mm (1U)
• Weight: 3.18 kg
• Rack-mount metal chassis
• Power: AC 100–240V, max. 476W / 1624 BTU
• Fans: 2 smart fans
• Surge Protection: 2KV/4KV
• ESD: 6KV Contact, 8KV Air

Certifications & Environment:

• CE, FCC Part 15 Class A
• Compliance: IEEE 802.3af/at/bt, 802.1D/w/s/Q/p/x/ad, RFCs, G.8032
• Operating Temp: 0–50 °C
• Storage Temp: -10–60 °C
• Humidity: 5–95% (non-condensing)
