PLANET 16-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit

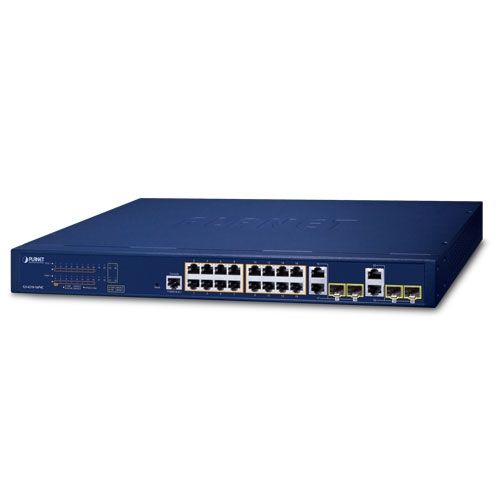

The PLANET GS-4210-16P4C is a highly versatile and cost-optimized managed PoE+ Gigabit switch, ideal for modern SMB networks seeking robust power delivery, security, and performance. Featuring 16 IEEE 802.3at PoE+ RJ45 ports and 4 additional TP/SFP combo ports, the switch offers flexible connections for IP surveillance, VoIP, and wireless deployments. With a 240W PoE power budget, the GS-4210-16P4C delivers high-performance networking and simplifies infrastructure installation by combining power and data in a single cable.

Smart PoE features include PD Alive Check, Scheduled Power Recycling, PoE Scheduling, Power Usage Monitoring, and extended reach up to 250m. Advanced Layer 2/4 capabilities such as VLAN, QoS, IGMP/MLD snooping, LACP, and ACLs ensure reliable performance and segmentation for secure and optimized networks.

Its cybersecurity suite is comprehensive, offering SSHv2, TLS v1.2, SNMPv3, RADIUS/TACACS+, ARP Inspection, IP Source Guard, and port security—protecting critical assets against evolving threats. It’s designed with a non-blocking 40Gbps switching fabric, supports both IPv6 and IPv4, and integrates seamlessly with PLANET’s NMS and CloudViewer platforms for centralized management.

Technical Specifications:

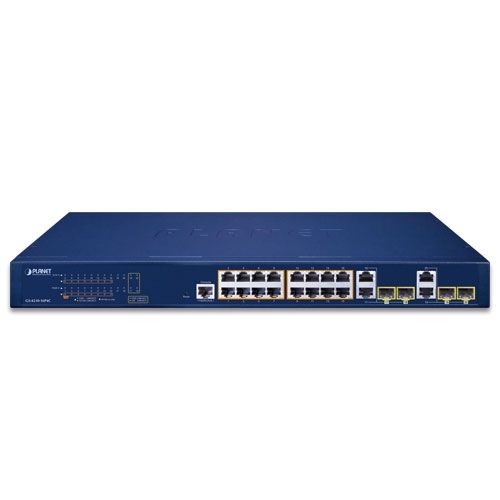

Ports:

• 20x 10/100/1000BASE-T RJ45 ports, 16 PoE+
• 4x 100/1000BASE-X SFP/Combo slots (Port 17–20)
• 1x RS232-to-RJ45 Console port
• Reset button (Reboot <5s / Factory reset >5s)

PoE Features:

• IEEE 802.3af/at compliant, End-span
• Per-port: up to 30W
• Total PoE budget: 240W
• Management: PD Alive Check, Schedule, Usage Monitoring, Extend Mode (up to 250m)
• Port prioritization, limitation, detection

Switching & Layer 2 Features:

• Switching Fabric: 40Gbps, 29.76Mpps
• MAC Table: 8K
• Jumbo Frame: 10KB
• VLAN: 802.1Q, Q-in-Q, Voice, Protocol, Private, Management, GVRP
• Link Aggregation: LACP, Static Trunk (Cisco)
• Spanning Tree: STP, RSTP, MSTP, BPDU Guard/Filter
• ERPS Ring Protection (G.8032): <450ms recovery
• Port Mirroring, Loop Protection
• IGMP/MLD Snooping v2/v3 (up to 256 groups)

QoS & Traffic Control:

• 8 Priority Queues, WRR/Strict Priority
• DSCP, 802.1p, port-based
• Bandwidth control per port
• Storm control (broadcast, unknown-unicast, multicast)

Security:

• 802.1X Authentication (port-based), RADIUS, TACACS+
• DHCP Snooping, IP Source Guard, ARP Inspection, DoS Protection
• ACLs: IPv4/IPv6-based, MAC-based
• MAC Filtering, Static MACs, Port Security (device limit)

Management:

• IPv4/IPv6 Dual Stack
• Interfaces: Web, Telnet, Console, SNMP v1/v2c/v3
• Secure Access: SSHv2, TLS v1.2
• SNTP, LLDP/LLDP-MED, Dual Image, Syslog
• Firmware/Config via HTTP/TFTP
• Tools: PLANET Smart Discovery, NMS, CloudViewer
• SFP-DDM Monitoring: Voltage, Laser Current, Temperature

Hardware & Power:

• Dimensions: 441.2 x 207.5 x 44 mm (1U)
• Weight: 2.8 kg
• Enclosure: Metal
• Fans: 2
• Max Power: 267W / 911 BTU

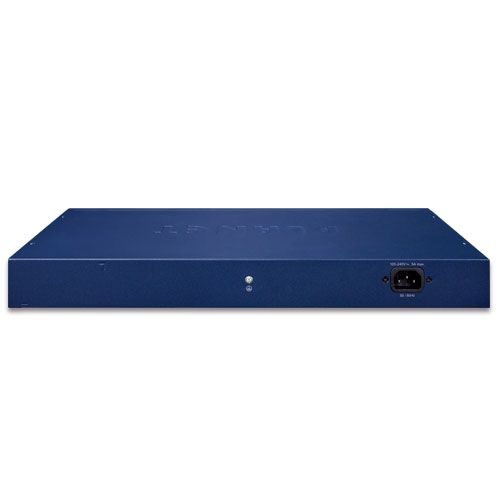

• Input: AC 100–240V, 50/60Hz

Certifications & Environmental:

• Compliance: FCC Part 15 Class A, CE
• Operating Temp: 0–50 °C
• Storage Temp: -20–70 °C
• Humidity: 5–95% (non-condensing)
