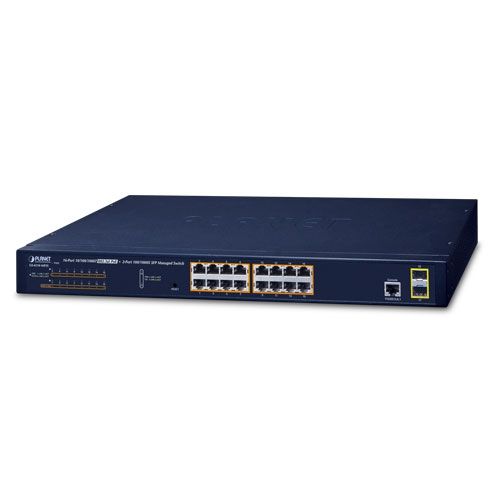

PLANET 16-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X

The PLANET GS-4210-16P2S is a highly flexible and cost-effective managed PoE+ switch, purpose-built for small to medium-sized businesses requiring robust PoE deployment, network traffic control, and strong security. With 16 Gigabit PoE+ ports (802.3at/af) and two additional SFP uplinks, this switch powers and manages IP phones, surveillance cameras, and wireless APs from a central location. It integrates advanced PoE management including PD alive check, scheduling, power cycling, usage monitoring, and long-distance mode (up to 250m).

The GS-4210-16P2S supports advanced Layer 2/4 features such as VLAN, QoS, LACP, ACLs, multicast filtering, and ring redundancy using ERPS (G.8032), ensuring high network uptime and resilience. Built-in security mechanisms include IEEE 802.1X authentication, RADIUS/TACACS+, DHCP snooping, IP source guard, ARP inspection, and DoS protection.

Management is intuitive and secure with web-based GUI, Telnet, console, SNMP v1/v2c/v3, SSHv2, and TLSv1.2. Whether deployed in a surveillance network or as a departmental switch in enterprise environments, the GS-4210-16P2S combines efficiency, protection, and scalability.

Technical Specifications:

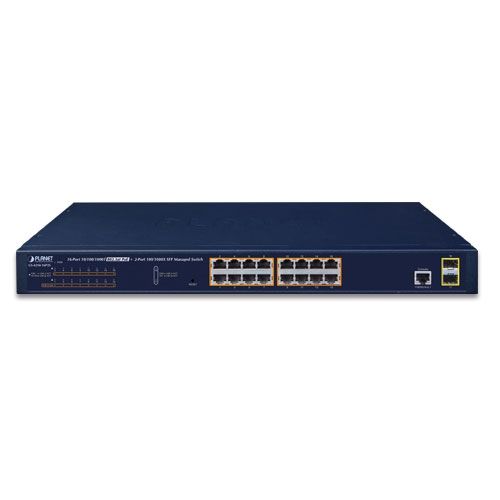

Ports:

• 16x 10/100/1000BASE-T RJ45 PoE+ Ports (up to 30.8 W per port)
• 2x 100/1000BASE-X SFP slots
• 1x RS232 RJ45 console port
• Reset button (reboot <5s / factory reset >5s)

PoE Features:

• Standards: IEEE 802.3af/at compliant (end-span)
• Total Power Budget: 220W
• Smart Features: PD Alive Check, Scheduled Power Recycling, PoE Scheduling, Usage Monitoring, Extend Mode (250m range)
• Prioritization and per-port limits

Switching & Layer 2/4 Capabilities:

• Switching Fabric: 36 Gbps / 26.78 Mpps throughput
• MAC Table: 8K, Buffer: 4Mbit
• Jumbo Frame: up to 9216 bytes
• VLAN: 802.1Q, Q-in-Q, Voice, Protocol, Private, Management VLAN
• Aggregation: 1 LACP group, 1 static trunk (2 ports each)
• Spanning Tree: STP, RSTP, MSTP, BPDU Guard/Filter
• IGMP/MLD Snooping v2/v3, up to 256 multicast groups
• QoS: 8 queues, 802.1p, DSCP, WRR, Port-based
• Traffic Filtering: Broadcast, Unicast, Multicast storm control

Security Features:

• Authentication: 802.1X (Port/MAC-based), RADIUS, TACACS+
• ACLs: IPv4/IPv6-based, MAC-based
• DHCP Snooping, IP Source Guard, ARP Inspection, DoS prevention
• MAC Security: Filtering, Static MACs, Binding
• Port Security: MAC address limit per port

Management:

• Interfaces: Web GUI, Telnet, Console, SNMP v1/v2c/v3
• Secure Access: SSHv2, TLS v1.2
• Features: SNTP, Syslog, Dual firmware image, LLDP/LLDP-MED, TFTP/HTTP firmware/config updates
• Monitoring: PLANET Smart Discovery, NMS, CloudViewer
• RMON (1, 2, 3, 9), Event Logging, MIBs supported

Hardware & Power:

• Dimensions: 441.2 x 207.5 x 44 mm (1U)
• Weight: 2.8 kg
• Enclosure: Metal
• Fans: 2

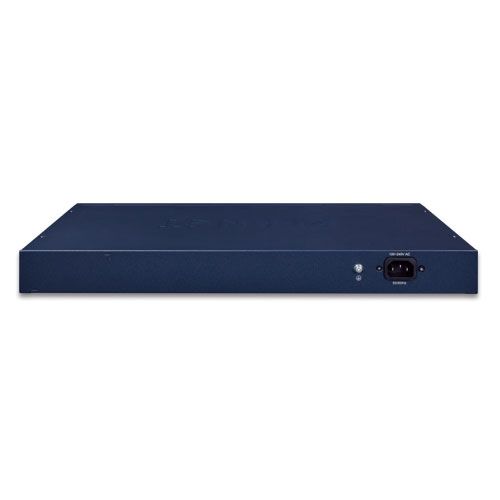

• Power Input: AC 100–240V, 50/60Hz
• Power Consumption: Max 281 W / 964 BTU

Certifications & Environmental:

• Standards: IEEE 802.3/ab/z/u/x/ad/af/at, 802.1Q/p/D/w/s/x/ab, IGMP, MLD, G.8032
• Certifications: FCC Part 15 Class A, CE
• Operating Temperature: 0–50 °C
• Storage Temperature: -10–70 °C
• Humidity: 5–95% (non-condensing)
