PLANET GS-2210-24T2S 24-Port Web Smart Switch content_copy

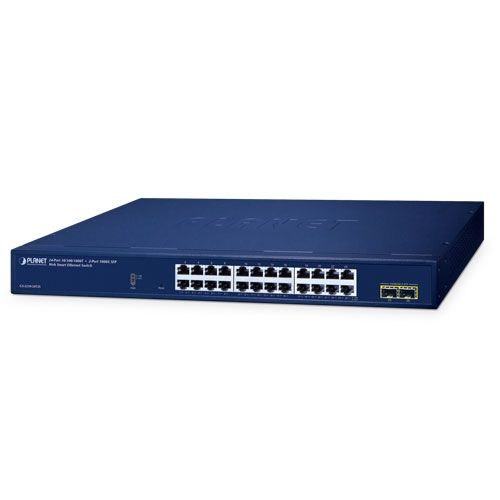

PLANET GS-2210-24T2S – 24-Port Web Smart Switch with NMS & ONVIF Integration

The PLANET GS-2210-24T2S is a powerful Web Smart switch designed to meet the needs of growing enterprise, campus, and industrial networks. Equipped with 24 Gigabit Ethernet ports and 2 SFP uplinks, it provides a cost-effective, high-performance solution. With full integration into PLANET’s UNI-NMS and NMSViewerPro systems, it delivers centralized, scalable, and flexible network management with remote control from anywhere.

Centralized Control via UNI-NMS & NMSViewerPro:

• Supports remote management of up to 102,400 devices
• Mobile cloud app with QR scan for fast device onboarding
• Real-time alerts, diagnostics, firmware upgrades, and traffic monitoring
• Unified platform for device status, configuration, and control

ONVIF IP Surveillance Integration:

• Detect and manage up to 24 PLANET ONVIF cameras from the switch GUI
• Auto-detects IP/MAC, port, model name, and camera status
• Launch camera web interface and perform PoE reboot from switch interface

Advanced Layer 2 Networking Features:

• VLAN support (IEEE 802.1Q), Link Aggregation (up to 8 groups)
• IGMP snooping v1/v2 for multicast control, DHCP snooping for security
• Port isolation, loopback detection, broadcast storm control
• Port mirroring for traffic analysis and troubleshooting

Flexible Fiber Uplinks for Distance Connectivity:

• Dual SFP uplink slots supporting both 100BASE-FX and 1000BASE-SX/LX
• Supports long-distance transmission up to 120km with single-mode SFPs

Robust QoS Implementation:

• 8 priority queues with strict priority and WRR scheduling
• Classification via IEEE 802.1p CoS, ToS, IPv4 DSCP, and port-based settings

Technical Specifications:

Interfaces:

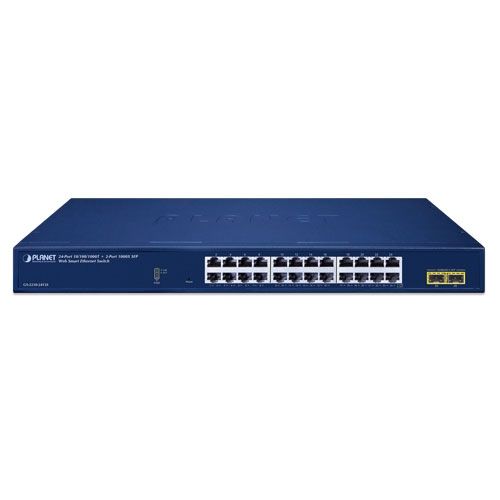

• 24 x 10/100/1000BASE-T Gigabit RJ45 ports
• 2 x 100/1000BASE-X SFP slots
• Reset button (press <10s to reboot, >10s for factory reset)

Performance:

• Switching Capacity: 52 Gbps, Throughput: 38.68 Mpps
• Store-and-forward architecture
• 8K MAC address table, 4.1MB buffer memory
• Jumbo Frame: 10 KB

Power & Efficiency:

• Consumption: 16.4W (max), fanless design

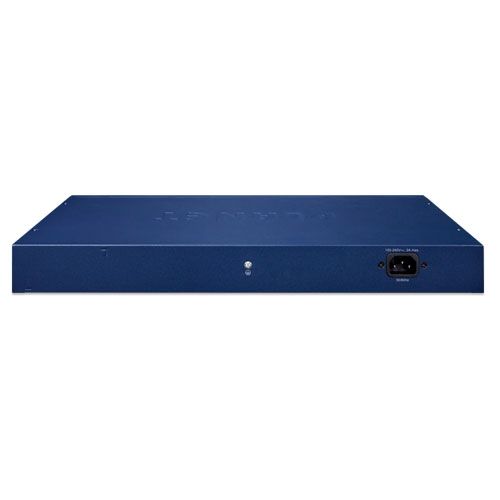

• Power Supply: AC 100~240V, 50/60Hz
• Dimensions: 441.2 x 207.5 x 44 mm
• Weight: 2049g

Security:

• DHCP Snooping
• Port isolation
• IPv4 Telnet user authentication

Standards Compliance:

• IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x
• IEEE 802.1Q VLAN tagging, IEEE 802.1p QoS
• RFC 783, 791, 792, 2068, 1112, 2236

Environment:

• Operating Temp: 0~50°C, Humidity: 5~90% (non-condensing)
• Storage Temp: -10~70°C

Use Cases:

• Surveillance networks with ONVIF camera integration
• Access point deployment in offices, retail, education
• Unified switch management across branches via cloud or mobile app
