Planet 24-Port Poe+ Web Smart Switch GS-2210-24P2S

PLANET GS-2210-24P2S – Smart PoE+ Switch with Full NMS Integration and ONVIF Surveillance Support

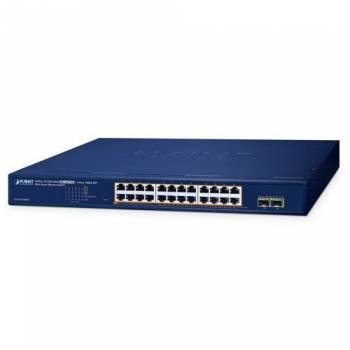

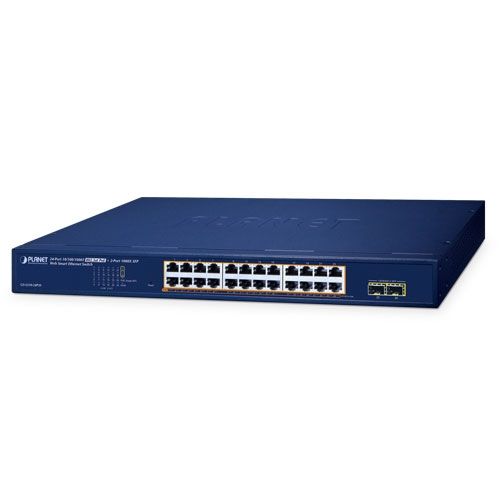

The PLANET GS-2210-24P2S is a full-featured Layer 2 smart-managed switch with 24 IEEE 802.3af/at PoE+ ports and two SFP uplink slots. It supports advanced remote management via PLANET's UNI-NMS and NMSViewerPro, making it ideal for modern businesses and surveillance-driven infrastructures. Designed for optimal energy savings, real-time device monitoring, and flexible camera management, the GS-2210-24P2S is your central network control unit.

Centralized Network & Power Management:

• Supports up to 102,400 devices across the network via UNI-NMS
• Remote access via PLANET CloudViewer/NMSViewerPro mobile app
• Real-time traffic monitoring, configuration, alerts and diagnostics
• QR scan deployment and bulk configuration support

Advanced PoE Control & Monitoring:

• 24 PoE+ ports, up to 32W each, total PoE budget: 260W
• Features: PD Alive Check, PoE scheduling, power prioritization and limiting
• Visual dashboard with live PoE usage charts and status indicators

ONVIF Surveillance Integration:

• Discover and manage up to 24 PLANET ONVIF-compliant cameras
• View camera status, IP, MAC, model, and launch web interfaces from GUI
• Remotely reboot cameras via PoE port power cycle

Flexible Fiber Uplinks:

• 2 SFP uplink ports (100/1000Mbps) for long-distance fiber connections
• Supports multimode (550m–2km) and single-mode (up to 120km) fiber

Layer 2 Features for Network Optimization:

• 802.1Q VLAN tagging (up to 16 groups), Link Aggregation (8 groups x 8 ports)
• Port Mirroring, Loopback Detection, Storm Control
• IGMP Snooping v1/v2, DHCP Snooping, Port Isolation

Quality of Service (QoS):

• 8 traffic priority queues, WRR & Strict Priority modes
• Classification by 802.1p CoS, DSCP, ToS, port-based WRR

Technical Overview:

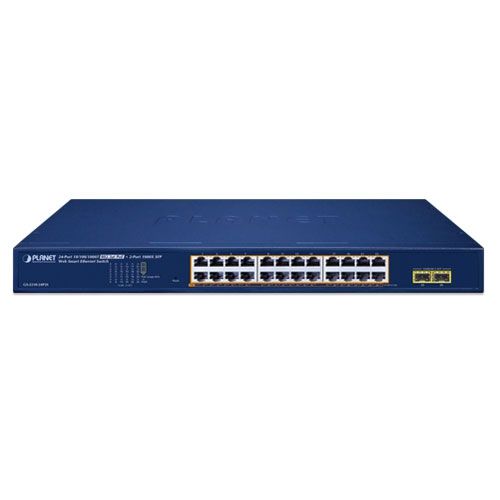

Interfaces:

• 24 x 10/100/1000BASE-T PoE+ ports
• 2 x 100/1000BASE-X SFP ports
• Reset button for system reboot and factory reset

PoE Specs:

• PoE Standard: IEEE 802.3af/at
• Output: Max. 32W/port
• Budget: 260W
• End-span power (pins 1/2+, 3/6−)

Switch Performance:

• Architecture: Store-and-Forward
• Switching Fabric: 52Gbps
• Throughput: 38.68Mpps
• Jumbo Frame: 10K Bytes
• MAC Address Table: 8K
• Buffer Memory: 4.1MB

Power & Environmental:

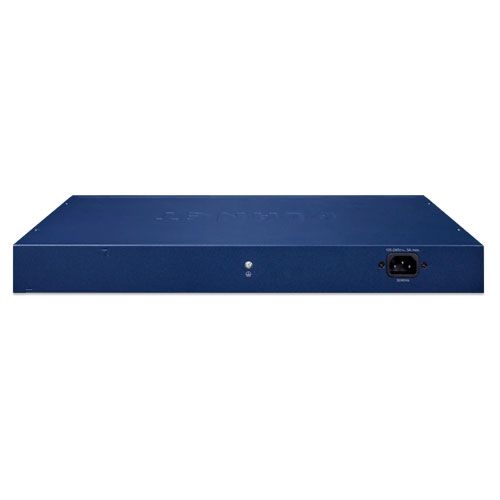

• Power: 100~240V AC
• Consumption: 297W max (with PoE), 9.4W (system only)
• Operating Temp: 0–50°C
• Dimensions: 440 x 207 x 44mm
• Weight: 2.5kg
• ESD: ±6KV contact / ±8KV air
• Surge: ±2KV diff / ±4KV common

Compliance:

• CE, FCC Class A
• IEEE standards: 802.3af/at, 802.1Q, 802.1p, 802.3x, 802.3z, 802.3ab

Ideal Applications:

• Managed IP surveillance networks with central camera control
• Wireless access point deployments
• Enterprise VoIP environments
• Workgroup switches with PoE at the edge of growing networks
