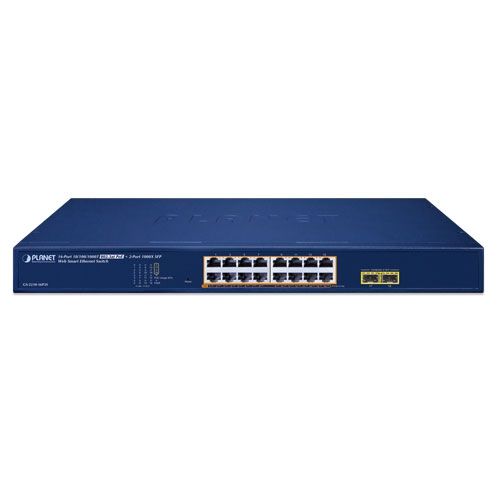

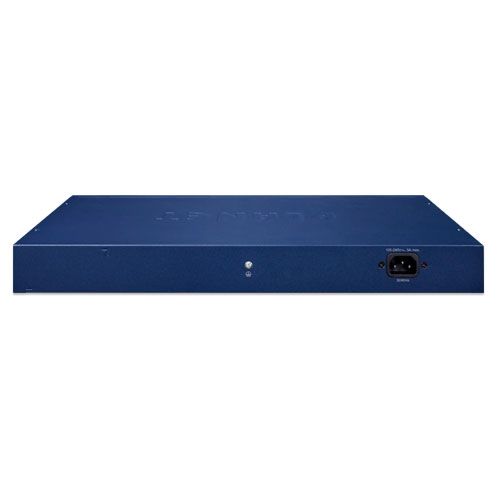

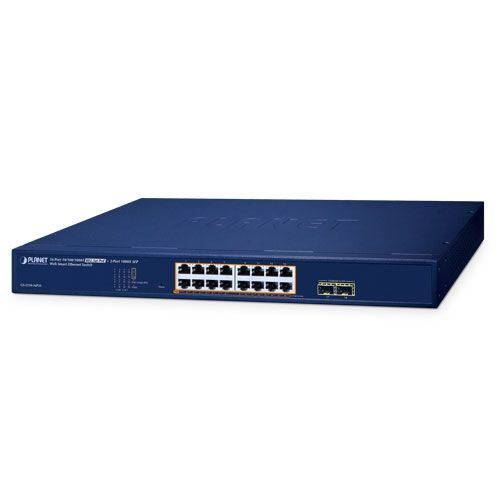

Planet 16-Port Poe+ Web Smart Switch GS-2210-16P2S

PLANET GS-2210-16P2S – Smart PoE+ Switch with Integrated NMS and ONVIF Support

The PLANET GS-2210-16P2S is a Web Smart Gigabit Switch that combines intelligent PoE+ control with full integration into PLANET’s network management systems – UNI-NMS and NMSViewerPro. Featuring 16 IEEE 802.3at PoE+ ports and 2 SFP uplink slots, this switch is ideal for SMBs, surveillance, VoIP, and wireless deployments requiring centralized and remote management.

Centralized Network Management via UNI-NMS & NMSViewerPro:

• Manage up to 102,400 network devices from a single platform
• Access and control via mobile apps with PLANET CloudViewer
• Supports local NMSViewerPro for real-time visibility and troubleshooting
• Quick QR scan deployment and device onboarding

Advanced PoE+ Capabilities:

• 16 IEEE 802.3af/at PoE+ ports, up to 32W per port
• Total PoE power budget: 240W
• Scheduled PoE to save energy during off-hours
• PD Alive Check for automatic reboot of non-responsive devices
• Power usage monitoring and per-port control

Robust Networking Performance:

• 16 x 10/100/1000BASE-T ports + 2 x 100/1000BASE-X SFP slots
• Non-blocking switch fabric: 36Gbps
• Throughput: 26.78Mpps
• Jumbo Frame support: 10K Bytes

Full Layer 2 Feature Set:

• VLAN: IEEE 802.1Q tagging (up to 16 VLAN groups)
• Link Aggregation: 8 groups of 8 ports each (static trunk)
• QoS: 8 priority queues, DSCP, 802.1p CoS, port-based classification
• IGMP snooping v1/v2 for multicast optimization
• Storm control, port mirroring, loop detection

Built-in ONVIF Surveillance Support:

• Auto-discovery of PLANET ONVIF cameras
• View online/offline status, IP, MAC, and access camera GUI directly
• Control PoE power cycle from switch interface

Enhanced Security Functions:

• Port isolation and DHCP snooping
• Telnet/Web access authentication with username/password
• Supports cable diagnostics and IP/domain ping test

PoE and Networking Efficiency:

• Remote power feeding: 100m standard / 250m in extend mode
• Real-time PoE usage chart and smart PD management
• Excellent for IP camera, phone, and AP deployments

Technical Specifications:

Interfaces:

• 16 x 10/100/1000BASE-T PoE+ ports
• 2 x 100/1000BASE-X SFP slots
• Reset button (reboot or factory reset)

PoE Details:

• PoE Standard: IEEE 802.3af/at
• Power Output: Up to 32W per port
• Total Budget: 240W
• End-span mode: 1/2(+), 3/6(–)

Management and Diagnostics:

• Web GUI, Telnet CLI, PLANET Smart Discovery
• Cable test and PoE diagnostics
• PoE usage monitor and scheduling
• Firmware upgrade via TFTP/HTTP

Environment & Build:

• Operating Temperature: 0–50°C
• Size: 440 x 207 x 44 mm
• Weight: 2.34 kg
• ESD protection: ±6KV contact, ±8KV air
• Surge: ±2KV diff / ±4KV common

Compliance and Certifications:

• IEEE 802.3af/at, 802.1Q, 802.1p, 802.3x
• FCC Class A, CE compliant

Ideal For:

• Enterprise IP surveillance networks
• VoIP telephony and wireless AP installations
• Departments or workgroups needing centralized PoE and data management
