PLANET GPN-100 1-Port GPON Optical Network Terminal

PLANET GPN-100 – High-performance GPON ONT for FTTx Deployments

The PLANET GPN-100 is a compact and high-performance GPON Optical Network Terminal (ONT) designed for FTTx environments. Featuring a single GPON SC port and a Gigabit RJ45 Ethernet port, it provides a reliable and cost-effective solution for voice, video, and high-speed internet services when deployed with PLANET OLTs such as the GPL-8000.

Robust GPON Access Capabilities:

• 1x SC/UPC GPON port
• Up to 2.5Gbps downstream / 1.25Gbps upstream
• Supports distances up to 20km
• ITU-T G.984/G.988 compliant
• Secured with AES128 encryption

Gigabit LAN Access:

• 1x 10/100/1000BASE-T RJ45 port
• IEEE 802.3x flow control supported

Efficient Bandwidth and QoS Management:

• Dynamic Bandwidth Allocation (DBA) for optimized bandwidth sharing
• SLA compliance for service differentiation
• 4 priority queues with WRR, strict priority, and FIFO
• IGMP snooping for multicast traffic optimization

Energy-efficient Design:

• Green networking technology ensures low power consumption
• Compact and lightweight (only 100g)
• 12V DC input (0.5A) with energy savings under full load

Ideal Use Cases:

• Perfect for delivering IPTV, VoIP, and broadband internet in FTTx rollouts
• Supports long-term service with low operating cost and simple maintenance
• Suitable for residential, small office, or MDUs in GPON networks

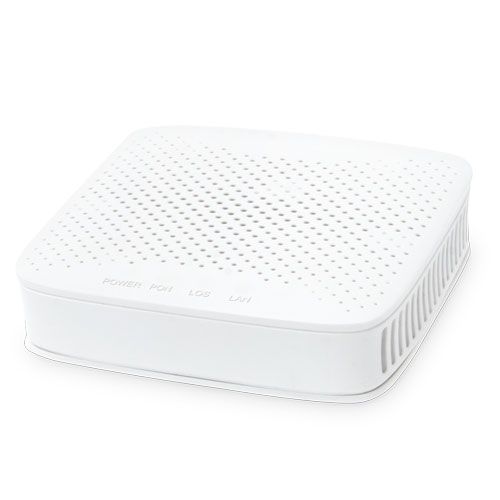

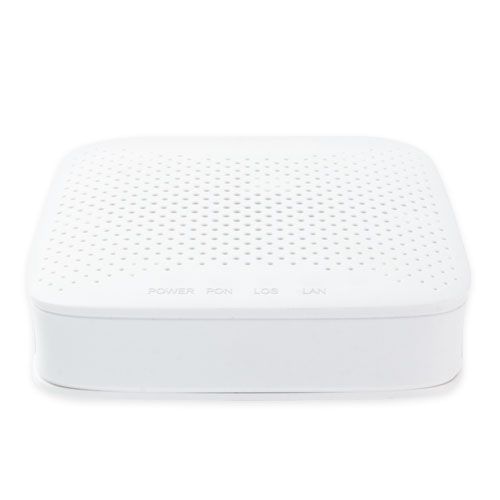

LED Indicators:

• Power, PON status, LOS (Loss of Signal), LAN link

Technical Specifications:

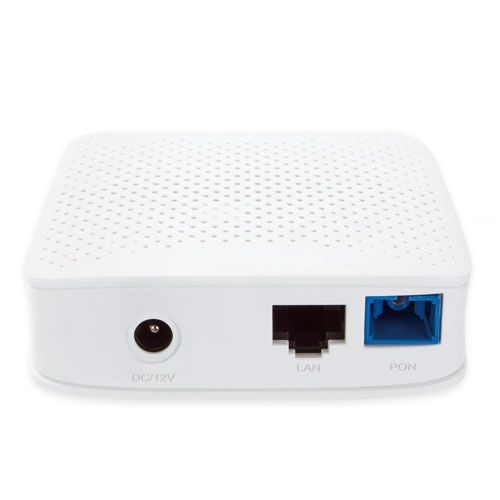

Interfaces:

• GPON Port: 1x SC/UPC connector
• Ethernet Port: 1x RJ45 10/100/1000BASE-T

Optical Parameters:

• TX Wavelength: 1310nm / RX Wavelength: 1490nm
• Receiver Sensitivity: -28 dBm
• TX Power: 0.5 to 5 dBm

Dimensions & Environment:

• Dimensions: 79.95 x 74.86 x 25.19 mm
• Weight: 100g
• Operating Temp: 0 ~ 50°C
• Storage Temp: -40 ~ 85°C
• Operating Humidity: 10 ~ 85% (non-condensing)

Standards Compliance:

• IEEE 802.3 / 802.3u / 802.3ab / 802.3x
• ITU-T G.984 / G.988 / Y.1291
• CE certified
