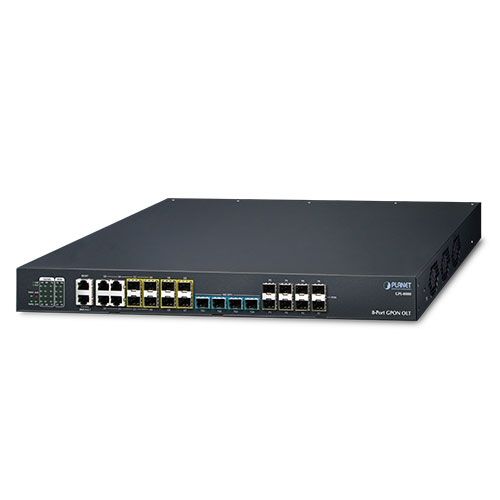

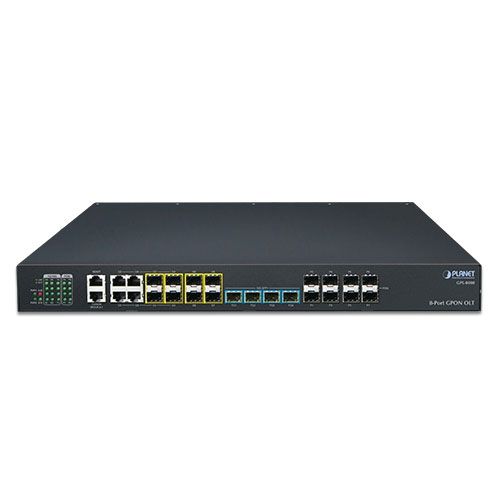

PLANET GPL-8000 8-Port GPON Optical Line Terminal
|
1.835,92 EUR |
|
|
( 2.184,74 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 271302 |
|---|---|
| Mfg Part No: | GPL-8000 |
| UPC/EAN: | 4711605285292 |
| Weight: | 0.12 kg |
Product information for Planet GPL-8000:
The PLANET GPL-8000 GPON OLT is a carrier-class, scalable fiber access platform offering 8 GPON ports, multiple 10G/1G uplinks, and extensive Layer 2/3 features. Supporting up to 1024 ONUs/HGUs, it is ideal for broadband service providers delivering Triple Play services or IP surveillance networks.
Powerful GPON Backbone for High-Speed Access:
- 8 GPON SFP slots, supporting up to 128 ONUs per port
- Up to 2.5Gbps downstream / 1.25Gbps upstream
- Up to 20 km coverage with Class C+/C++ optics
- Fully compliant with ITU-T G.984/G.988
Versatile Uplink Interfaces:
- 4x 10G SFP+ ports (SR/LR)
- 8x 100/1000BASE-X SFP ports
- 4x 10/100/1000BASE-T combo ports
- 1x management port (10/100BASE-TX)
- 1x RJ45-to-RS232 console port
Advanced Layer 3 Routing:
- Static routing, RIP, OSPF
- Up to 1K IPv4 VLAN interfaces / 256 IPv6 interfaces
- 32K IPv4 / 8K IPv6 routing entries
Layer 2 Features and QoS:
- VLAN (802.1Q), Q-in-Q (802.1ad), GVRP (up to 4K VLANs)
- Spanning Tree: STP/RSTP/MSTP
- IGMP/MLD snooping, MVR, G.8032 ERPS Ring
- LACP and static trunking (32 groups, 8 ports each)
- 8 queues per port with WRR and Strict Priority
- SLA & DBA on each ONU for traffic shaping
Security and Access Control:
- 802.1x, RADIUS, TACACS+
- ACL: MAC, IP, Time-based (up to 1K entries)
- DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- Data encryption on PON interface, port isolation
Intuitive Management:
- Web, Telnet, Console CLI, SNMPv1/v2c/v3, SSHv2, SSLv3
- IPv4/IPv6 dual-stack management
- RMON (1,2,3,9), LLDP, SNTP/NTP
- DHCP Server/Relay/Option 82, TFTP/FTP configuration
- Dual firmware images, remote syslog, SFP DDM monitoring
Hardware Highlights:
- Switching Fabric: 176Gbps
- Throughput: 102Mpps (down) / 87Mpps (up)
- 40K MAC address entries, 1K ACL entries, 2MB shared buffer

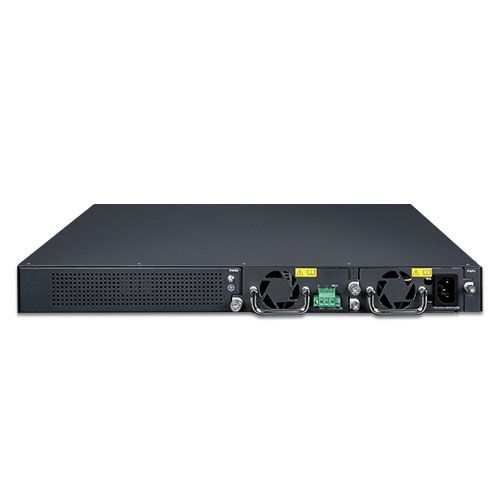

- Power: 100~240V AC or 36~72V DC (redundant slot)
- Power usage: 60W max
- Dimensions: 442.5 x 300 x 44.6 mm, Weight: 5.5 kg
- 3 internal cooling fans
Environmental Specs:
- Operating Temp: 0–50 °C, Storage: -10–70 °C
- Humidity: 5–90% (non-condensing)
Compliance and Standards:
- IEEE: 802.3x, 802.3ae, 802.1D/w/s/Q/X, 802.1ab
- ITU-T: G.984, G.988
- IPv4/IPv6 support, IGMPv1/v2/v3, MLDv1/v2
- CE / FCC / LVD certified
Questions & answers
What is the delivery time of PLANET GPL-8000 8-Port GPON Optical Line Terminal?
The article PLANET GPL-8000 8-Port GPON Optical Line Terminal is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet GPL-8000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET GPL-8000 8-Port GPON Optical Line Terminal always at the best possible price. We can give you a discount of 2% on PLANET GPL-8000 8-Port GPON Optical Line Terminal if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
